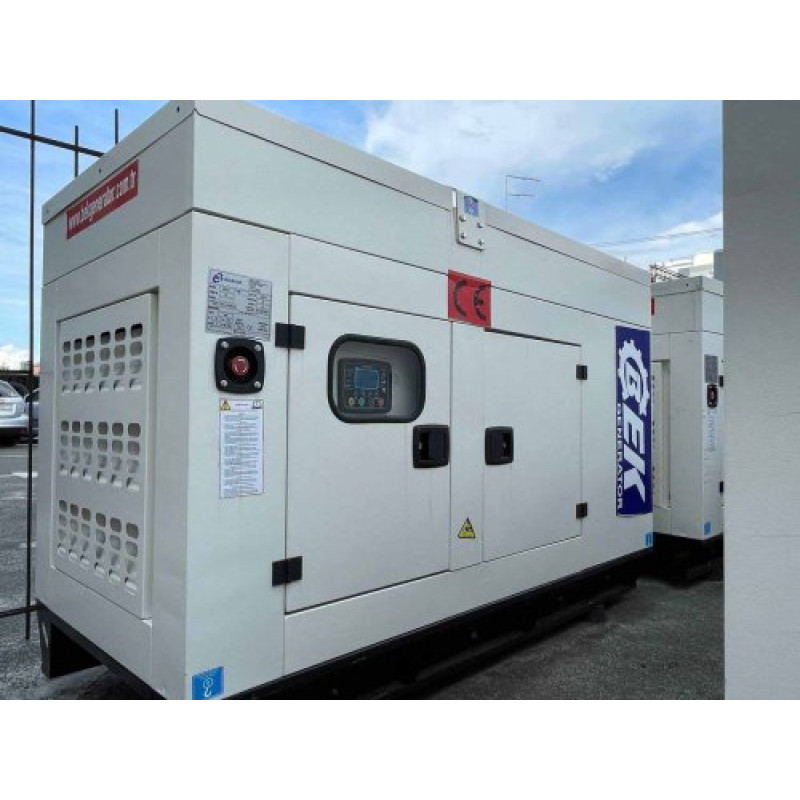

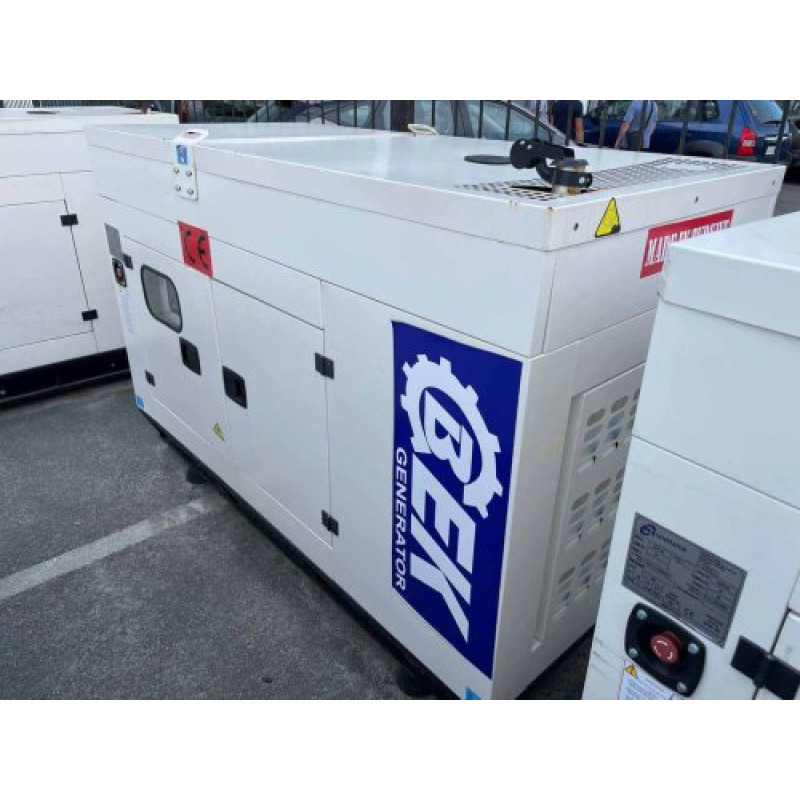

BEK MOTOR BGW-85 Diesel Generator (68 kW)
Product Description: The BEK MOTOR BGW-85 diesel generator is a powerful and reliable power unit for industrial and commercial applications, as well as for backup power supply. The BEK model is equipped with a RICARDO ZH4105ZLD engine, ensuring stable operation under prolonged loads. The device is designed for 400V/230V networks, has a peak power of 85 kVA / 68 kW at a power factor of 0.8, making it a versatile solution for construction, industrial sites, commercial facilities, and cottage complexes.
Technical Specifications:
| Voltage: | 400V/230V |
| Engine Type: | 4-cylinder, four-stroke |

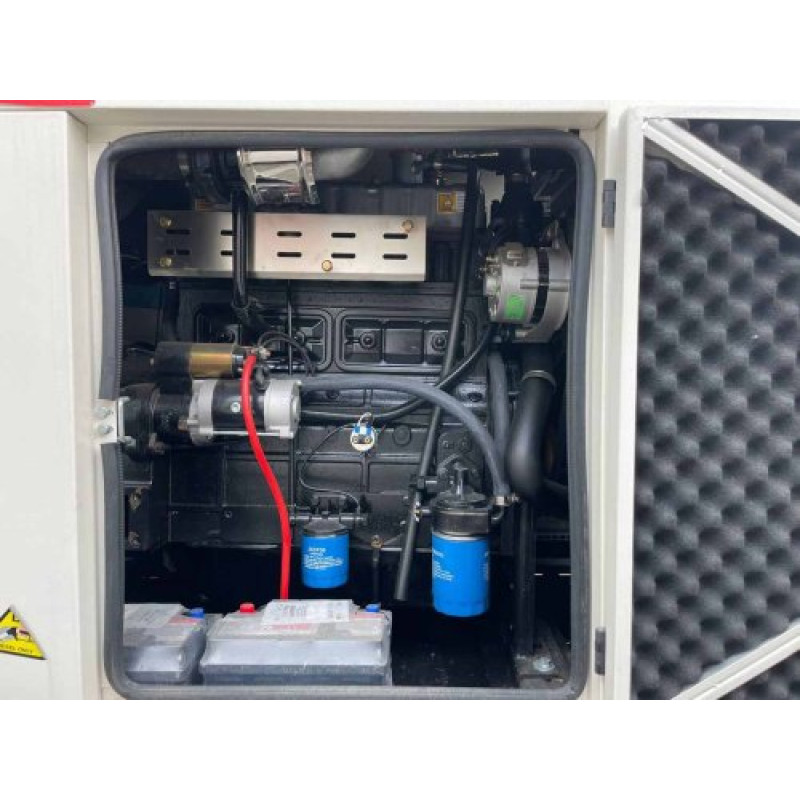

| Engine Model: | RICARDO ZH4105ZLD |
| Engine Displacement: | 3610 cm3 |
| Bore and Stroke: | 102x115 mm |
| Compression Ratio: | 19:1 |
| Standby Speed: | 1500 rpm |
| Cooling System: | Liquid |
| Total Lubrication System Capacity: | 14 L |
| Coolant Capacity: | 10 L |
| Starting System: | Electric starter |
| Fuel Tank Capacity: | 150 L |
| Peak Power: | 85 kVA / 68 kW |
| Power Factor: | 0.8 |
| Number of Wires: | 12 |
| Insulation Class: | H |
| Protection Level: | IP23 |
| Frequency: | 50 Hz |
| Noise Level: | 68 dB |
| Dimensions, LxWxH: | 2000x900x1300 mm |
| Weight: | 950 kg |
Advantages of the BEK MOTOR BGW-85 Model:
- High peak power of 85 kVA (68 kW) at a power factor of 0.8 for reliable power to mixed loads.
- Reliable 4-cylinder four-stroke RICARDO ZH4105ZLD engine with 3610 cm3 displacement and 19:1 compression ratio.
- Optimized piston parameters of 102x115 mm and a set frequency of 50 Hz for standardized network integration.
- Liquid cooling, a large oil reserve of 14 L, and a coolant capacity of 10 L ensure stable operation under prolonged loads.
- Large 150 L fuel tank allows for long-term autonomous operation without frequent refueling.
- Simple electric start (electric starter), IP23 protection, and insulation class H for operation in industrial conditions.
- Compact industrial dimensions of 2000x900x1300 mm with a weight of 950 kg and an acceptable noise level of 68 dB.
Practical Application: The BEK MOTOR BGW-85 generator is ideal for providing backup and primary power on construction sites, in industrial workshops, commercial facilities, cottage complexes, and enterprises requiring stable 400V/230V electricity. Thanks to its versatile voltage and standard 50 Hz frequency, the device easily integrates into existing power grids and can operate as an autonomous power source for a wide range of equipment.
Manufacturer: BEK. Product Type: Energy Independence — Generators.
If you need a reliable power unit with proven technical parameters and high assembly quality, the BEK MOTOR BGW-85 will be an effective and convenient solution for ensuring uninterrupted power supply.
