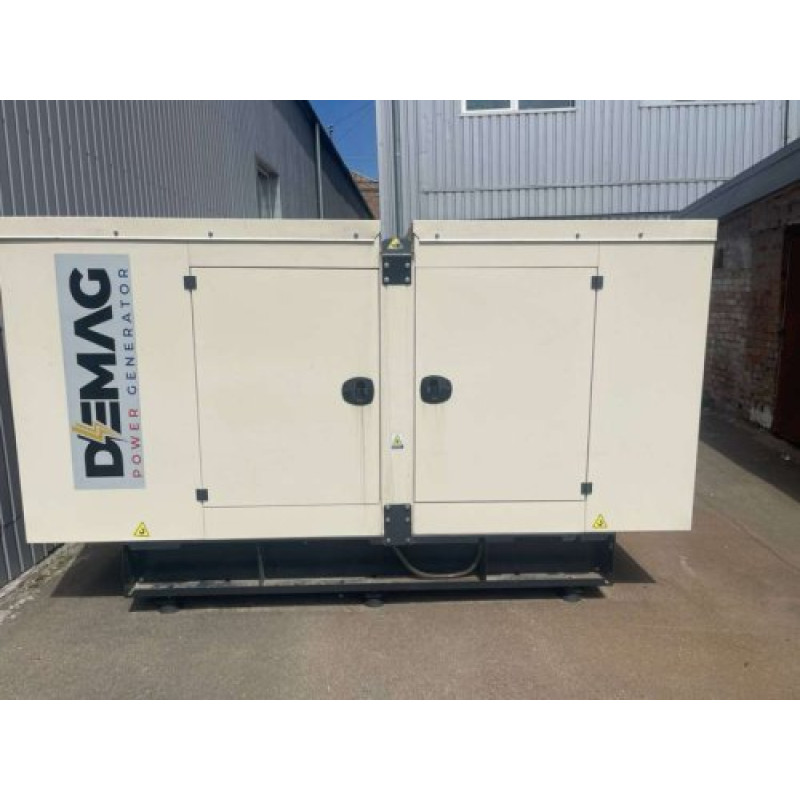

DEMAG DMG R-285 Diesel Generator (205 kW)
The DEMAG DMG R-285 diesel generator is a powerful and reliable unit designed to provide uninterrupted power supply for large industrial facilities, construction sites, and infrastructure objects. The model combines a robust six-cylinder water-cooled engine with a high-performance three-phase SURIRELLA 276E generator, ensuring stable operation under prolonged loads and in challenging operating conditions. Brand: DEMAG. Product type: Energy Independence > Generators.
Model Overview
The DEMAG DMG R-285 has a nominal continuous power of 205.2 kW and a peak power of 228 kW. Operating frequency is 50 Hz, with a nominal power factor of 0.8 cos φ. Insulation class H and protection degree IP22 ensure the unit's durability in standard operating conditions and a long service life for the generator.
Advantages

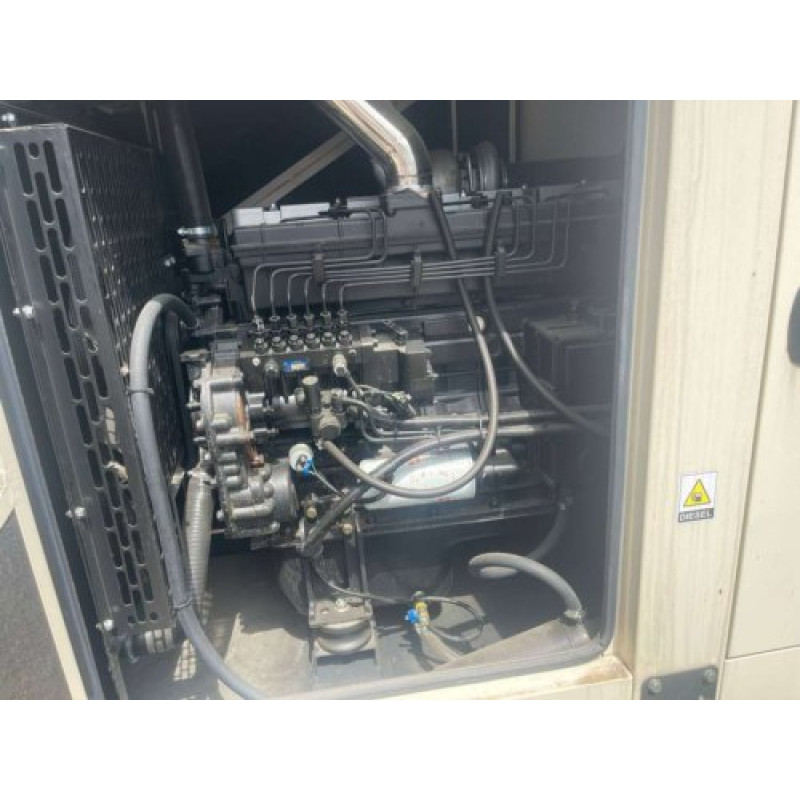

- Robust 6-cylinder KOFO R6110ZLDS water-cooled engine ensures stable operation under high loads;
- Electric starter for reliable ignition in various conditions;
- Large 265 L fuel tank allows for extended operation without refueling;
- Low noise level — 75 dB, simplifying installation in noise-restricted areas;
- Optimal fuel consumption at 75% load — 257 g/kWh, reducing operating costs;
- Compact dimensions for its class: 3000x1100x1750 mm and weight 1900 kg — a well-designed construction for stationary installation.
Specifications:
| Voltage: | 380V |
| Engine type: | 6-cylinder, water-cooled |
| Engine model: | KOFO R6110ZLDS |
| Starting system: | electric starter |
| Fuel tank capacity: | 265 L |
| Peak power: | 228 kW |
| Continuous power: | 205.2 kW |
| Generator type: | three-phase, SURIRELLA 276E |
| Nominal power factor: | 0.8 cos φ |
| Frequency: | 50 Hz |
| Noise level: | 75 dB |
| Fuel consumption (75% load): | 257 g/kWh |
| Insulation class: | H |
| Protection degree: | IP22 |
| Dimensions, LxWxH: | 3000x1100x1750 mm |
| Weight: | 1900 kg |
This unit is optimal as a primary or backup power source for manufacturing, public institutions, construction sites, or for autonomous electrification of remote facilities. Reliable components and robust construction allow the generator to be operated in harsh conditions, while a well-designed cooling system and insulation class ensure stability under prolonged loads.
Pay attention to the operational parameters: at 75% load, fuel consumption is 257 g/kWh, which, combined with a 265 L tank, ensures long autonomous operation without frequent refueling. The 75 dB noise level allows the unit to be placed closer to objects where noise control is important, but it is recommended to consider local noise pollution regulations.
The DEMAG DMG R-285 is a solution for those who need a reliable power source with proven technical parameters: 380V, 50 Hz, three-phase SURIRELLA 276E generator, KOFO R6110ZLDS engine, peak power 228 kW, and nominal 205.2 kW. The model combines high performance, efficiency, and ease of maintenance.
