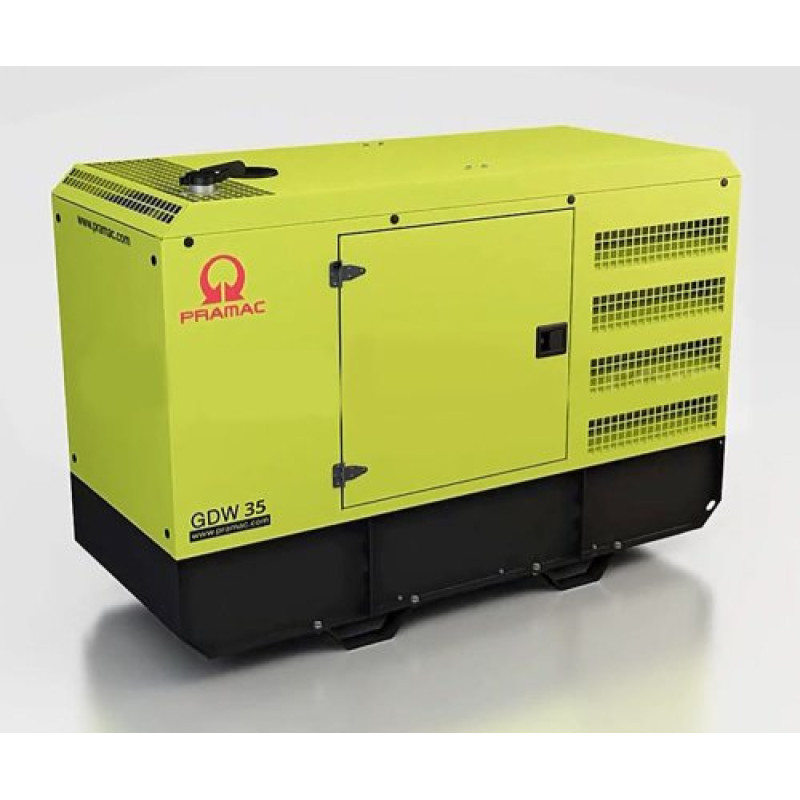

PRAMAC GDW35P/FNE Diesel Generator (26 kW)
Product Description: The PRAMAC GDW35P/FNE diesel generator is a reliable power source for commercial facilities, construction sites, agro-industrial, and household needs. This model combines the Italian quality of the PRAMAC brand with proven components from renowned manufacturers, providing a stable peak power of 26 kW and continuous power of 24 kW. The generator is designed for both standby and prime power operation, features economical fuel consumption, and compact dimensions for industrial-grade equipment.
Key Advantages:
- Reliable Perkins 1103A-33G engine — 4-cylinder, four-stroke, water-cooled.
- Efficient three-phase Mecc Alte generator with a nominal power factor of 0.8 cos φ.
- Electric starter for convenient ignition.
- Low noise level of 64 dB during operation.
- Optimal fuel consumption of 8.27 l/h at 100% load and a 68-liter fuel tank for extended autonomous operation.
Application: An ideal option for enterprises requiring stable three-phase voltage of 400/230V: warehouses, small and medium production facilities, construction sites, medical institutions, and commercial facilities that need power supply autonomy.
Technical Specifications:
| Voltage: | 400/230V |
| Engine type: | 4-cylinder, four-stroke, water-cooled |
| Engine model: | Perkins 1103A-33G |
| Engine displacement: | 3300 cm3 |
| Starting system: | Electric starter |
| Fuel tank capacity: | 68 L |
| Peak power: | 26 kW |
| Continuous power: | 24 kW |
| Generator type: | 3-phase, Mecc Alte |
| Nominal power factor: | 0.8 cos φ |
| Frequency: | 50 Hz |
| Noise level: | 64 dB |
| Fuel consumption (100% load): | 8.27 l/h |
| Insulation class: | H |
| Protection degree: | IP21 |
| Dimensions, LxWxH: | 2200x1020x1292 mm |
| Weight: | 959 kg |
| Brand country: | Italy |
Manufacturer: PRAMAC — an Italian brand with a long history of creating autonomous power supply sources, guaranteeing component quality and service support.
Operating Recommendations: For maximum service life, adhere to regular maintenance according to the manufacturer's instructions: check oil level, coolant, filter condition, and electrical connections. It is recommended to install the generator on a flat, sturdy surface and ensure ventilation for effective cooling.
The PRAMAC GDW35P/FNE is an excellent choice for those seeking a powerful, reliable, and relatively compact diesel unit with a long service life and economical fuel consumption. The model combines proven technologies from the Perkins engine and Mecc Alte generator, making it a versatile solution for a wide range of tasks.
Category: Power Independence > Generators. Brand: PRAMAC. Model: GDW35P/FNE (26 kW).
