BEK MOTOR BGW-181 Diesel Generator (144 kW)
BEK MOTOR BGW-181 is a highly reliable industrial diesel generator designed for uninterrupted power supply to manufacturing plants, construction sites, medical facilities, warehouses, and utility infrastructure. This model combines a powerful 6-cylinder 4-stroke turbocharged RICARDO&R614ZLD engine, a modern BGR-181 synchronous generator, and a Deepsea DSE7320 AMF (DATAKOM D300) controller for automatic startup upon grid failure. Product category: Power Independence > Generators.
Key Advantages:

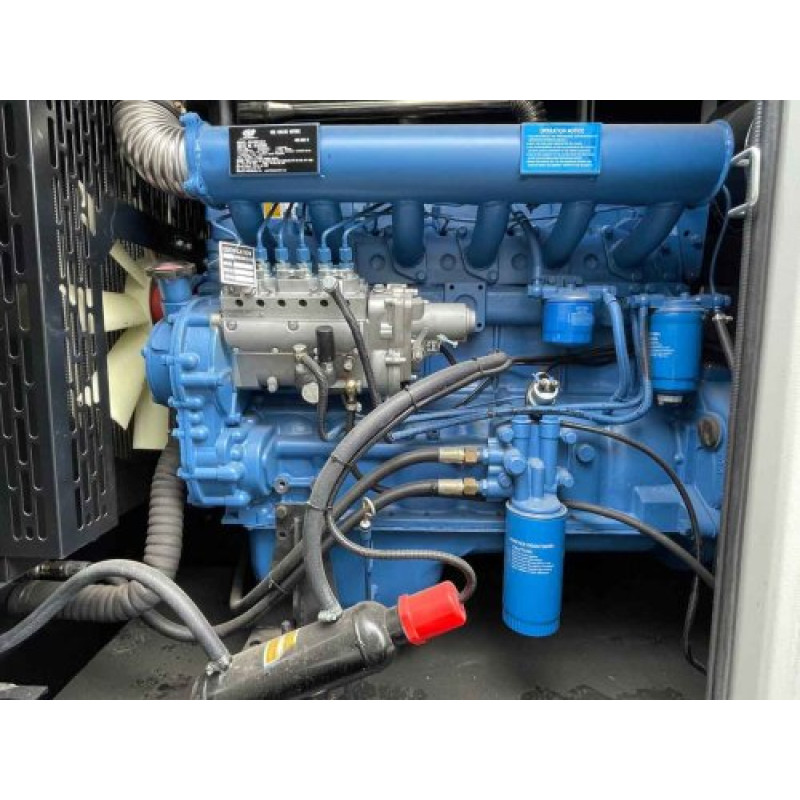

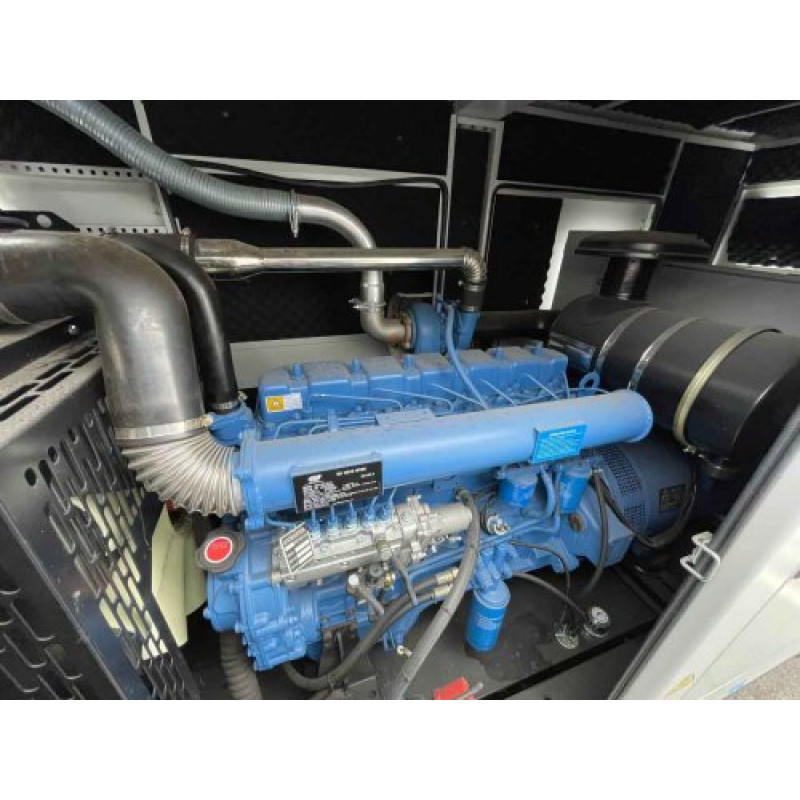

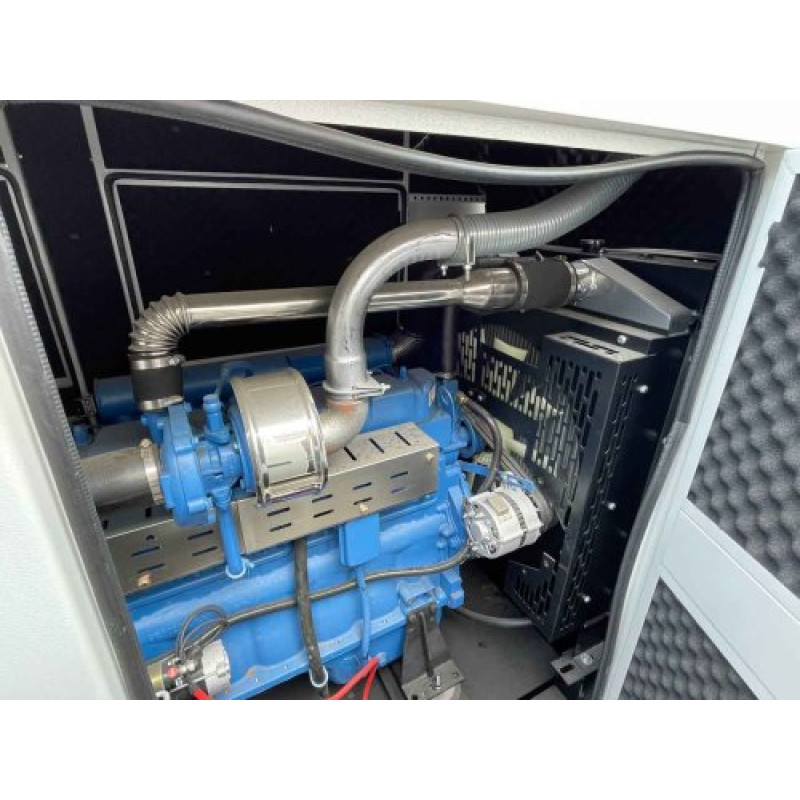

- Reliable RICARDO&R614ZLD engine — 6 cylinders, 4-stroke with turbocharger, displacement 6750 cm3.
- High prime power of 132 kW at 1500 rpm and standby power of 145.2 kW at 1500 rpm; peak output 181 kVA (power factor 0.8).

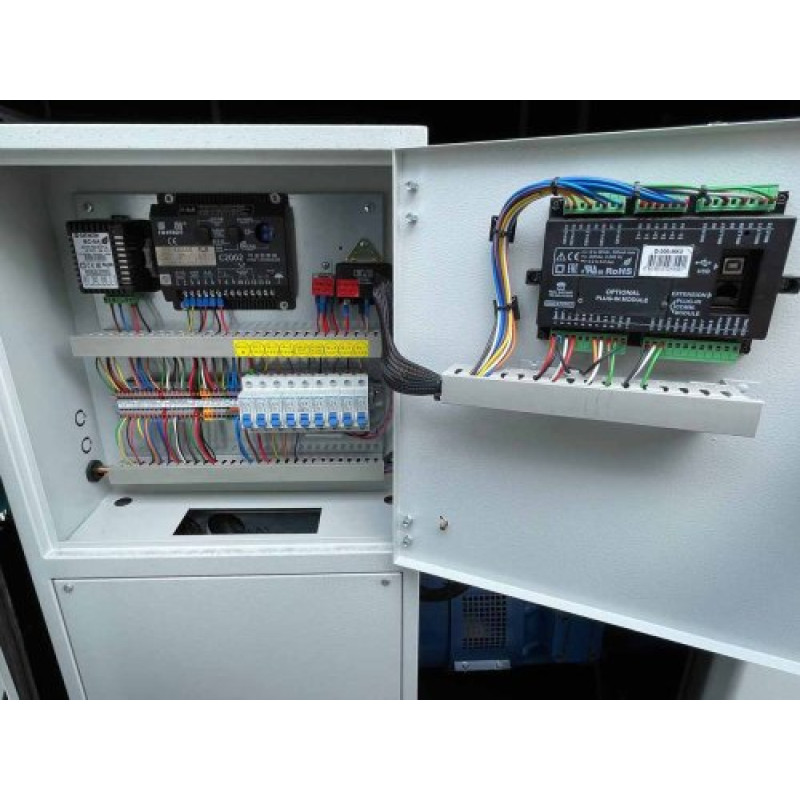

- Electronic speed governor and Deepsea DSE7320 AMF (DATAKOM D300) controller ensure automatic start and reliable control.
- Large 250 L fuel tank and fuel consumption of 31.2 L/h at 100% load for extended autonomous operation.
Technical Specifications:
| Voltage: | 380V/220V (can be manufactured according to specific customer requirements) |
| Engine type: | 6-cylinder, four-stroke, turbocharged |
| Engine model: | RICARDO&R614ZLD |
| Engine displacement: | 6750 cm3 |
| Bore and stroke: | 105x130 mm |
| Compression ratio: | 17.6:1 |
| Prime power/speed (kW/rpm): | 132/1500 rpm |
| Standby power/speed (kW/rpm) | 145.2/1500 rpm |
| Speed governor: | electronic |
| Cooling system: | liquid cooling, 50℃ |
| Total lubrication system capacity: | 14 L |
| Coolant capacity (without radiator): | 27 L |
| Fuel consumption at 100% load: | 31.2 L/h |
| Starting system: | electric starter DC24V |
| Fuel tank capacity: | 250 L |
| Peak power | 181 kVA |
| Generator model: | BGR-181 |
| Power factor: | 0.8 |
| Voltage regulation range: | ≥5% |
| Voltage regulation NL-FL: | ≤±0.5% |
| Insulation class: | H |
| Protection level: | IP23 |
| Controller: | Deepsea DSE7320 AMF DATAKOM D300 |
| Frequency: | 50 Hz |
| Noise level: | 78 dB |
| Dimensions, LxWxH | 3100x1100x1500 mm |
| Weight: | 1750 kg |
Additional Information and Operation Features: Thanks to the controller with AMF mode, the BEK MOTOR BGW-181 generator automatically starts when the grid fails, ensuring quick power restoration. Compact dimensions for its power output and IP23 protection allow installation in industrial premises or on an open site under a canopy. The large fuel tank combined with moderate consumption ensures long operation without frequent refueling.
Maintenance Recommendations:
- Regularly service the engine and cooling system to ensure long-term and reliable operation.
- Monitor oil level (lubrication system capacity 14 L) and coolant level (27 L without radiator) to prevent overheating and premature wear.
- For automatic startup and remote monitoring, integration of the Deepsea DSE7320 controller with the customer's monitoring system is recommended.

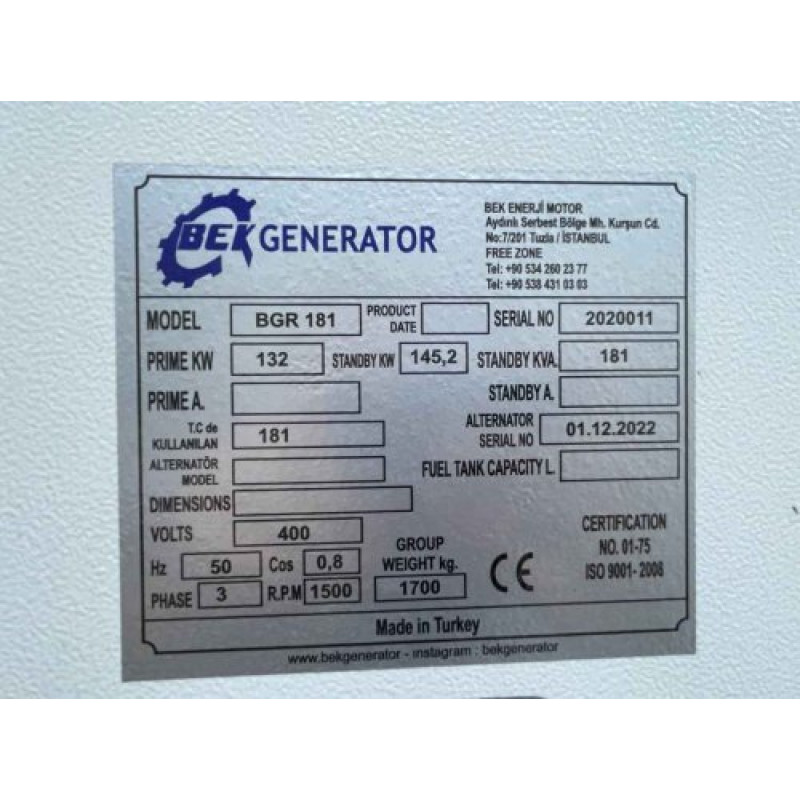

Brand: BEK. Model: BGW-181 (generator BGR-181), engine RICARDO&R614ZLD, peak output 181 kVA, power factor 0.8. Voltage can be 380V/220V or adapted to individual customer requirements.
