Diesel Generator BEK MOTOR BGR-55 (44 kW)
The BEK MOTOR BGR-55 diesel generator from manufacturer BEK is a reliable industrial unit with a power output of 55 kVA / 44 kW, designed to provide uninterrupted power supply at construction sites, enterprises, remote power stations, and commercial facilities. The device combines high starting reliability, economical fuel consumption, and a durable engine, making it an optimal solution in the Energy Independence > Generators category.
Key technical specifications are listed below:
| Voltage: | 400V/230V |
| Engine type: | 4-cylinder, four-stroke |
| Engine model: | RICARDO K4102D1-1 |
| Engine displacement: | 3300 cm3 |
| Bore and stroke: | 105x127 mm |
| Compression ratio: | 19.3:1 |
| Standby speed: | 1500 rpm |
| Cooling system: | Liquid |
| Total lubrication system capacity: | 8.3 L |
| Coolant capacity: | 10.3 L |
| Fuel consumption at 100% load: | 9.3 L/h |
| Starting system: | Electric starter |
| Fuel tank capacity: | 124 L |
| Peak power: | 55 kVA / 44 kW |
| Power factor: | 0.8 |
| Number of wires: | 12 |
| Insulation class: | H |
| Protection level: | IP23 |
| Frequency: | 50 Hz |
| Noise level: | 78 dB |
| Dimensions, LxWxH: | 2250x1050x1505 mm |
| Weight: | 1260 kg |

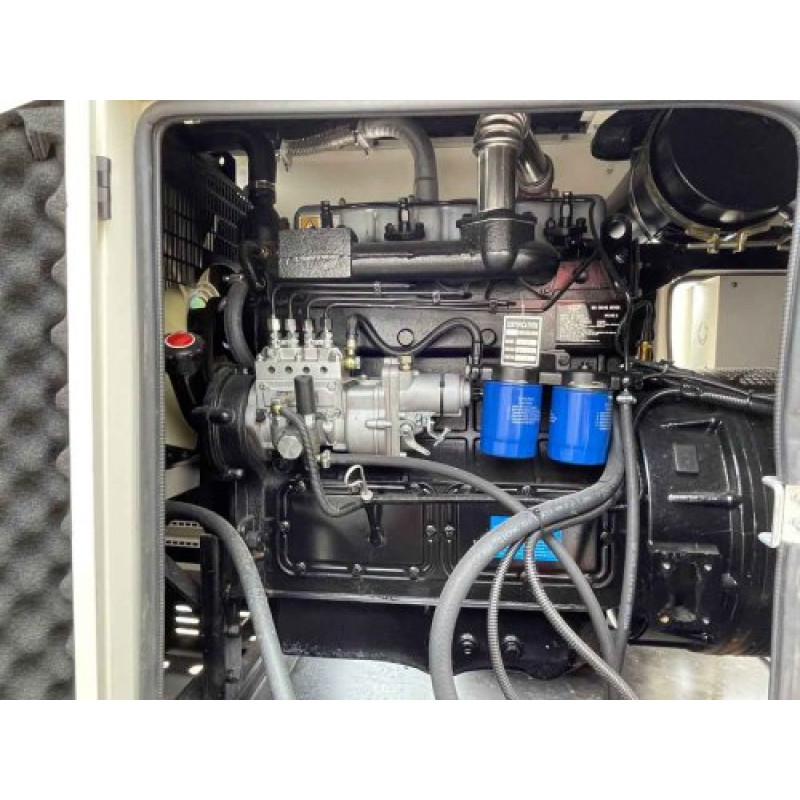

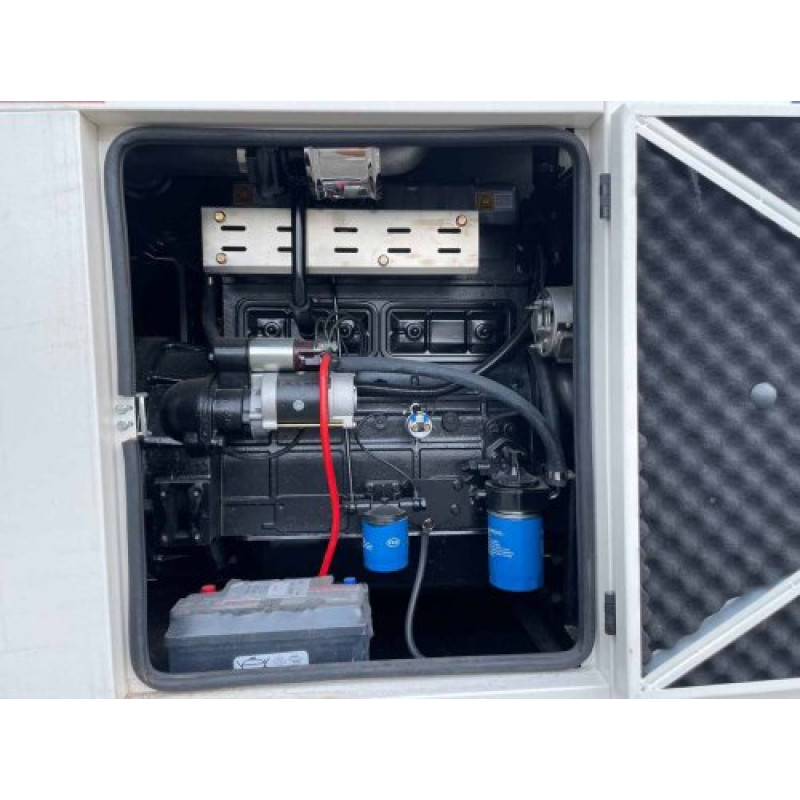

The heart of the unit is the RICARDO K4102D1-1 engine with a displacement of 3300 cm3, bore and stroke of 105x127 mm, and a compression ratio of 19.3:1, ensuring stable operation at a nominal frequency of 50 Hz and an idle speed of 1500 rpm. The liquid cooling system, combined with a spacious 8.3 L oil reservoir and a 10.3 L coolant tank, guarantees a long service life and reliability in demanding operating conditions.
The engine's operational characteristics allow for economical fuel consumption: at 100% load, consumption is 9.3 L/h. Thanks to the 124 L fuel tank capacity, the generator provides significant autonomous operation time without the need for frequent refueling. An electric starter is provided for quick and convenient starting.
The electrical part of the unit includes a voltage of 400V/230V, a peak power of 55 kVA / 44 kW with a power factor of 0.8, 12 wires for connection, insulation class H, and an IP23 protection rating, making the device suitable for operation in various climatic conditions and industrial environments. The noise level of 78 dB meets industrial application requirements and is acceptable for many commercial tasks.
The generator's dimensions of 2250x1050x1505 mm and weight of 1260 kg are important when planning delivery, lifting, and installation. The monolithic design and well-thought-out technical solutions ensure high reliability during long-term operation. The BEK MOTOR BGR-55 is suitable for use on construction sites, in the food industry, at enterprises, and in backup power systems where the quality and stability of power supply are critical.
We provide consultations on configuration, installation, delivery, and warranty service. Contact our managers to select the optimal installation option and service plan for your facility.
