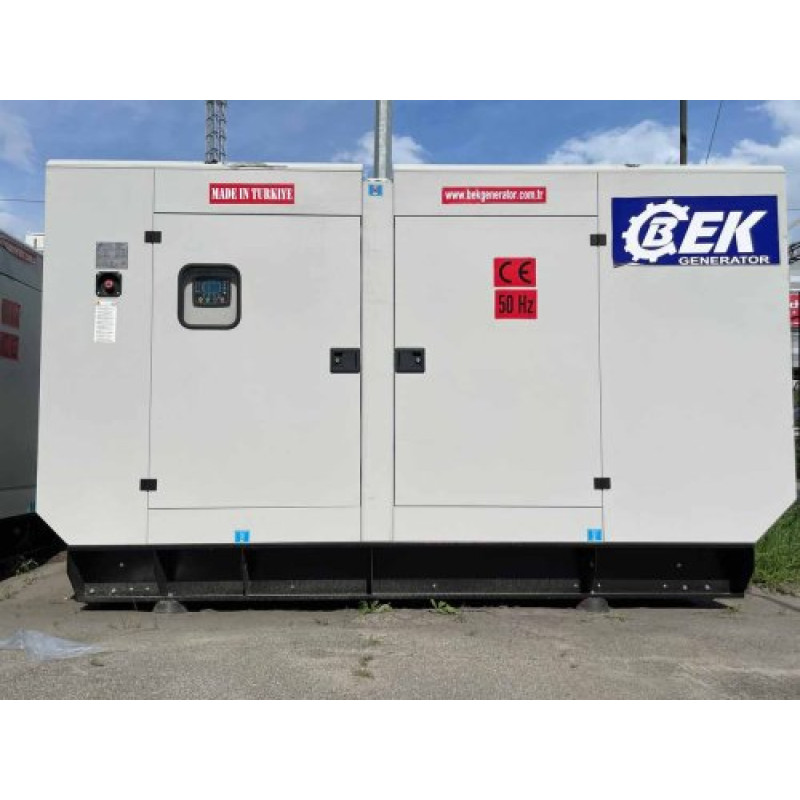

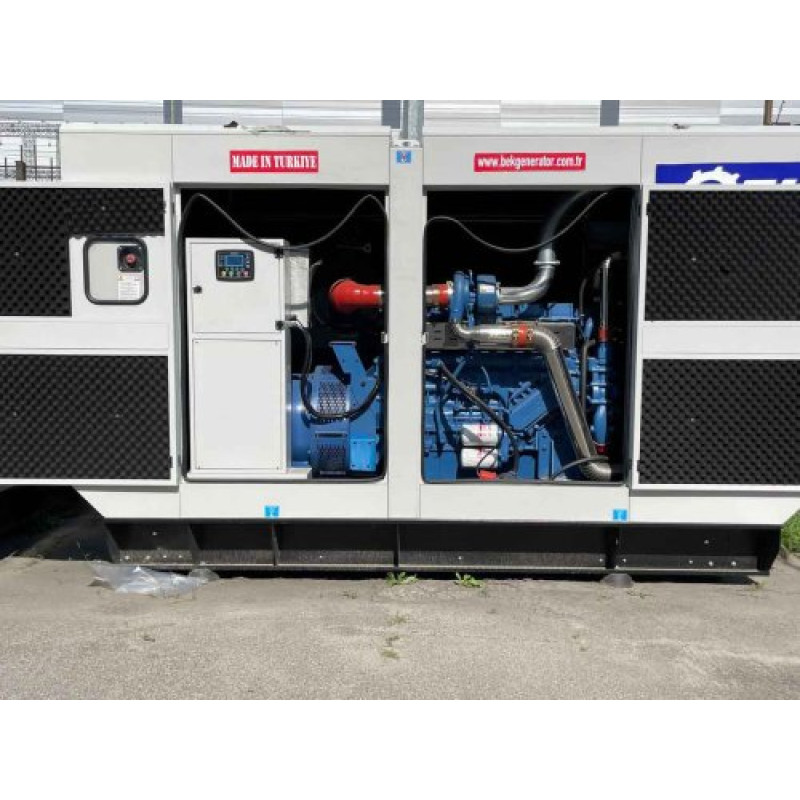

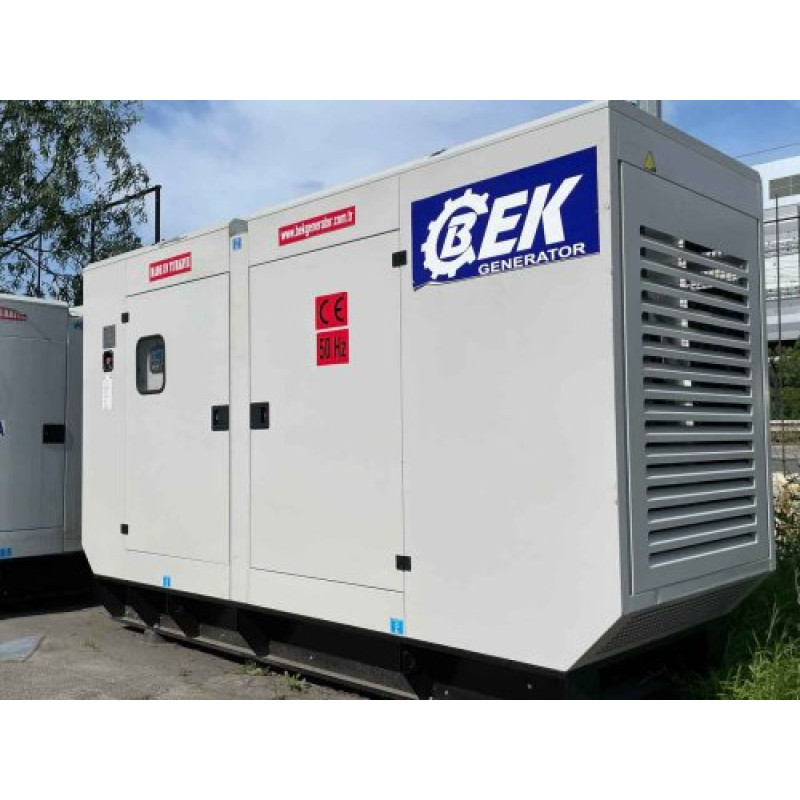

BEK MOTOR BGR-500 Diesel Generator (400 kW) — Reliable Power Independence for Business
The BEK MOTOR BGR-500 (400 kW) diesel generator from the manufacturer BEK — is a powerful stationary power plant designed for backup and primary power supply to facilities of various purposes. The BGR-500 model is ideal for industrial enterprises, construction sites, utilities, and infrastructure facilities where stable and long-term operation under load is required. The product belongs to the category: Power Independence > Generators.
Key Advantages

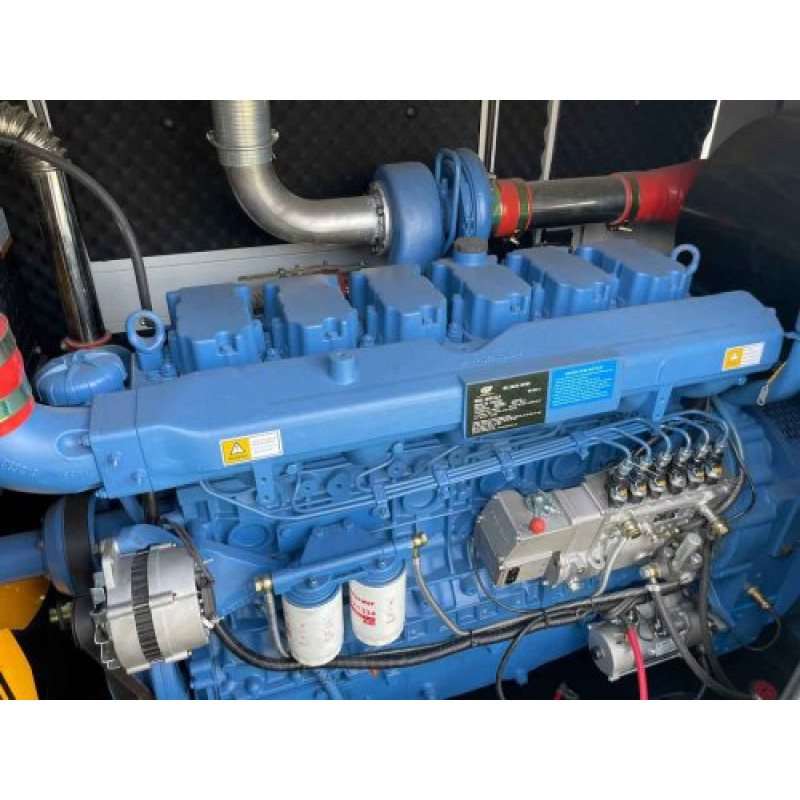

- Reliable 6-cylinder four-stroke turbocharged Weichai engine for intensive and long-term operation.
- High specific efficiency and standby power at 1500 rpm ensure stable power supply.

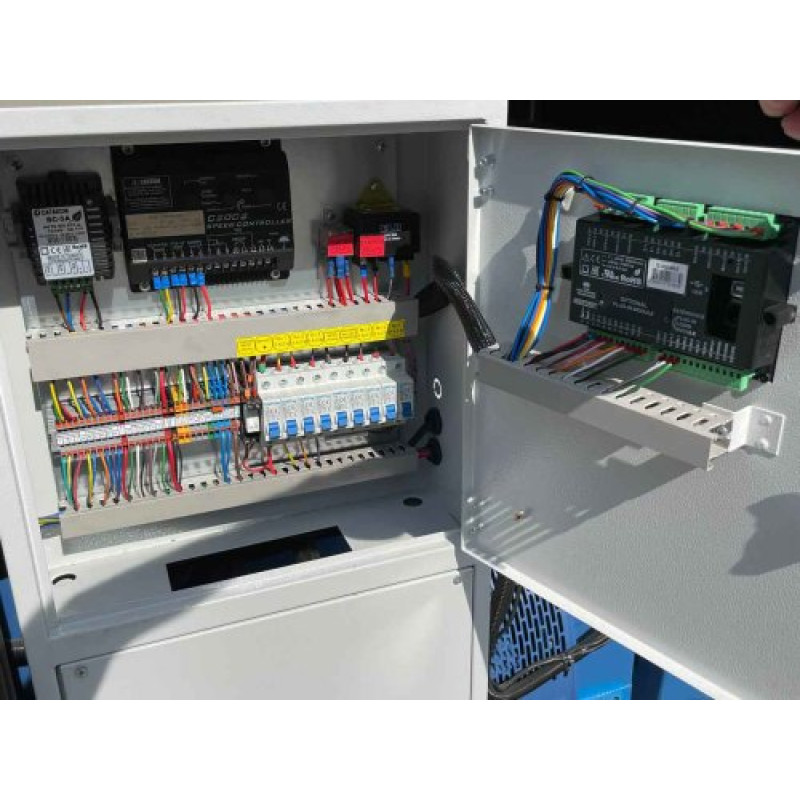

- Integrated controller for automatic control: Deepsea DSE7320 AMF and DATAKOM D300 provide safe automatic switching and monitoring.
- Convenient dimensions and possibility of on-site installation considering mounting requirements.
Below are detailed technical specifications of the generator for quick reference:
| Voltage: | 400V/230V (can be manufactured according to special customer requirements) |
| Engine Type: | 6-cylinder, four-stroke, turbocharged |
| Engine Model: | Weichai 6WP12ZLD |
| Engine Displacement: | 15,200 cm3 |
| Bore and Stroke: | 137x171 mm |
| Compression Ratio: | 13.5:1 |
| Prime Power/Speed (kW/rpm): | 440/1500 rpm |
| Standby Power/Speed (kW/rpm) | 400/1500 rpm |
| Speed Governor: | Electronic |
| Cooling System: | Liquid cooling, 50℃ |
| Total Lubrication System Capacity: | 50 L |
| Coolant Capacity (without radiator): | 30 L |
| Fuel Consumption at 100% Load: | 113 L/h |
| Starting System: | DC24V electric starter |
| Fuel Tank Capacity: | 500 L |
| Peak Power | 500 kVA |
| Generator Model: | BGR-510 |
| Power Factor: | 0.8 |
| Voltage Regulation Range: | ≥5% |
| Voltage Regulation NL-FL: | ≤±0.5% |
| Insulation Class: | H |
| Protection Level: | IP23 |
| Controller: | Deepsea DSE7320 AMF DATAKOM D300 |
| Frequency: | 50 Hz |
| Noise Level: | 78 dB |
| Dimensions, LxWxH | 4000x1300x2050 mm |
| Weight: | 3847 kg |
Where to Use BEK MOTOR BGR-500
The BEK MOTOR BGR-500 generator is designed for applications requiring high reliability and long-term autonomous operation: industrial workshops and production sites, residential complexes with autonomous power supply, telecommunication facilities, medical institutions, construction sites, and other critical infrastructure objects. The large 500 L fuel tank combined with an economical consumption of 113 L/h at 100% load ensures significant autonomy without frequent refueling.
The Deepsea DSE7320 AMF controller, along with the electronic speed governor, guarantees stable voltage, fast automatic switching to emergency power, and detailed monitoring of operating parameters. Insulation class H and protection level IP23 make this model suitable for standard industrial operating conditions.
As an official representative of equipment for Power Independence > Generators, we provide technical support, assistance in selecting the optimal configuration, optional voltage adaptation to individual customer requirements, and service maintenance.
