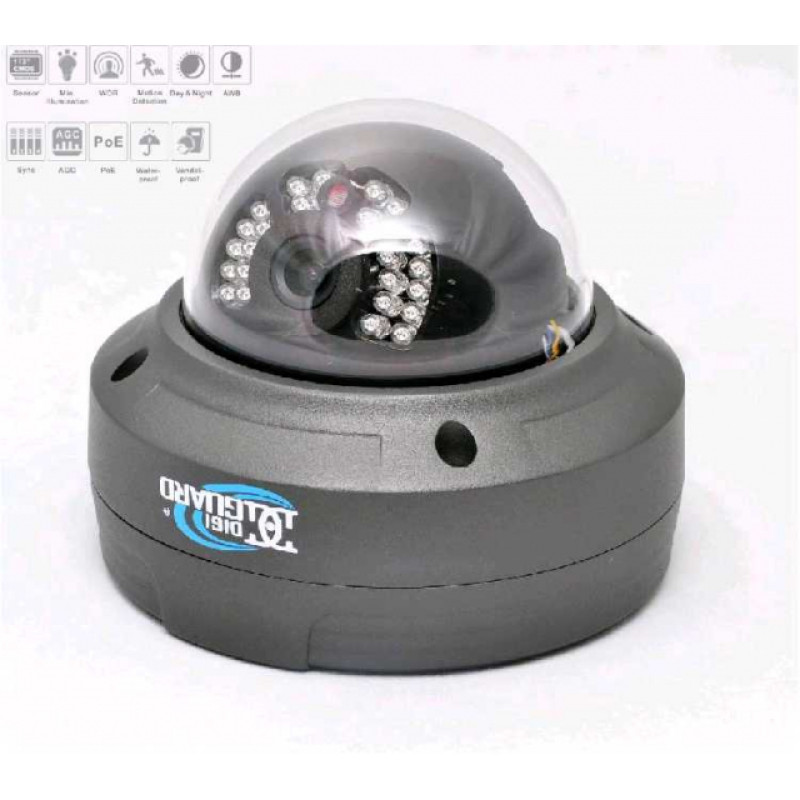

DigiGuard DG-9541E2(D/PE/IR1) (3.6 mm). 4 MP IP Outdoor Dome Camera
DigiGuard DG-9541E2(D/PE/IR1) (3.6 mm). 4 MP IP Outdoor Dome Camera
Brand: DigiGuard. This 4 MP IP outdoor dome camera is designed for reliable 24/7 video surveillance outdoors and around the perimeter of facilities. The device supports day/night (ICR) mode and is equipped with a 1/3" CMOS sensor, providing a detailed image with high clarity. The camera works with modern H.265, H.264, and MJPEG codecs for efficient video storage and optimization of media space.
Key Features
The camera has a fixed f=3.6 mm lens with an approximate 72° viewing angle. Sensitivity is 0.05 Lux at F1.2 aperture and 0 Lux with IR illumination on. Infrared illumination allows for clear images in complete darkness at a distance of up to 20 meters. Recording occurs at 4 MP resolution with a frame rate of 25 frames per second.
Advantages and Capabilities
- Support for H.265 / H.264 / MJPEG video codecs to save space while maintaining quality.
- Day/night (ICR) for natural color reproduction during the day and a clear image at night.
- IR illumination up to 20 m for night surveillance.
- DWDR, 3DNR, AWB, AGC, BLC — a set of functions to improve dynamic range, reduce noise, and automatic white balance.
- Built-in audio input (1 in) for connecting an external microphone.
Interfaces and Protection
The camera is equipped with a CVBS output: 1 BNC channel for connecting analog monitors or recorders. The housing has an IP66 protection rating, ensuring reliable operation outdoors in humid and dusty environments. The overall length is approximately 91 mm.
Technical Table
| Parameter | Value |
|---|---|
| Resolution | 4 MP (4Mp) |
| Recording Frame Rate | 25 fps |
| Sensor | 1/3" CMOS |
| Lens | f=3.6 mm (viewing angle ~72°) |
| Sensitivity | 0.05 Lux @ F1.2, 0 Lux (IR on) |
| IR Illumination | up to 20 m |
| Codecs | H.265 / H.264 / MJPEG |
| Video Outputs | CVBS: 1 BNC channel |
| Audio | 1 input |
| Functions | DWDR, 3DNR, AWB, AGC, BLC |
| Housing Protection | IP66 |
| Dimensions | 91 mm |
This model is ideal for installation in operational outdoor facilities, retail outlets, parking lots, and perimeters of private territories. Thanks to support for modern codecs and image processing functions, the DigiGuard DG-9541E2 provides high-quality video recording with minimal network and storage load. Given the IP66 protection rating and powerful IR illumination up to 20 meters, the camera demonstrates stable operation in various weather conditions and at night. Product category: Electronics > Video Surveillance > Video Cameras. By choosing this model, you get a balanced set of features for reliable 24/7 surveillance.
