SKYNOVA "Perets" Drone Detector

The device is designed to detect radio signals in the 750-1020 MHz, 2400-2528 MHz, and 4900-6050 MHz frequency ranges. The device is equipped with a number of functions for reliable drone protection, is easy to use, and has compact dimensions.

Technical specifications:

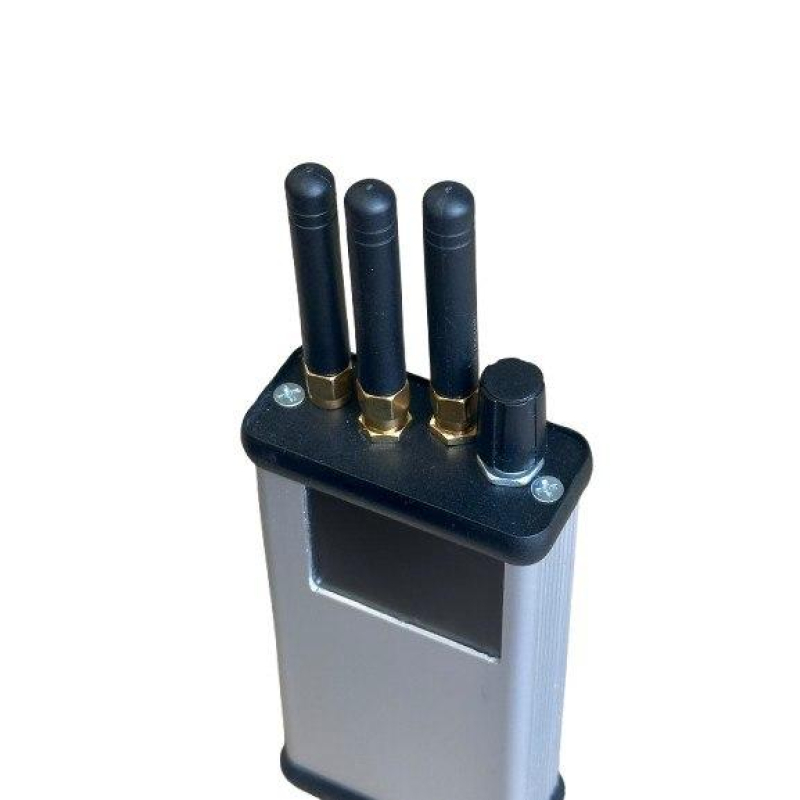

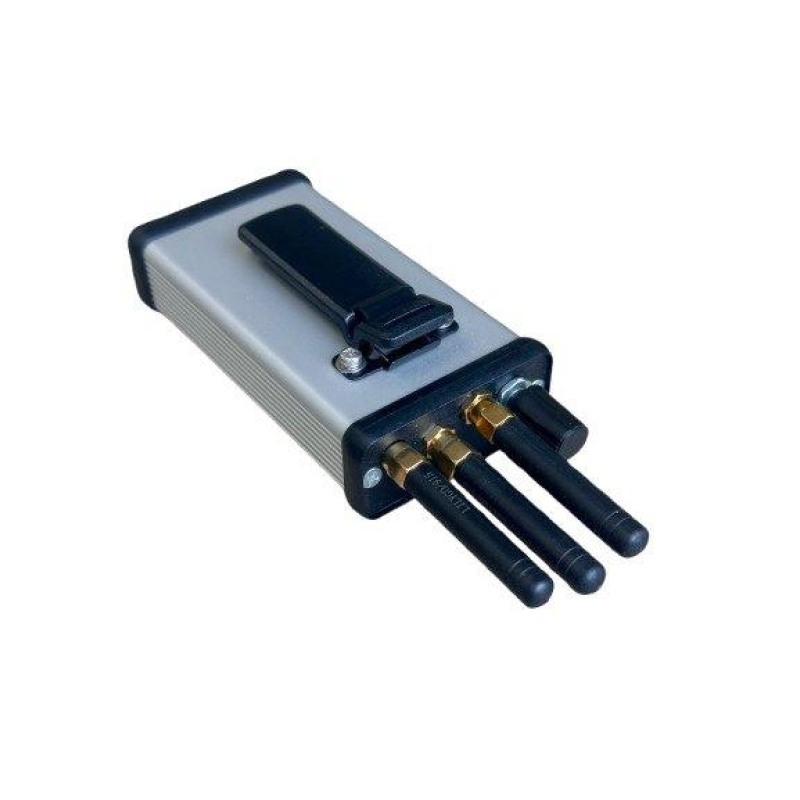

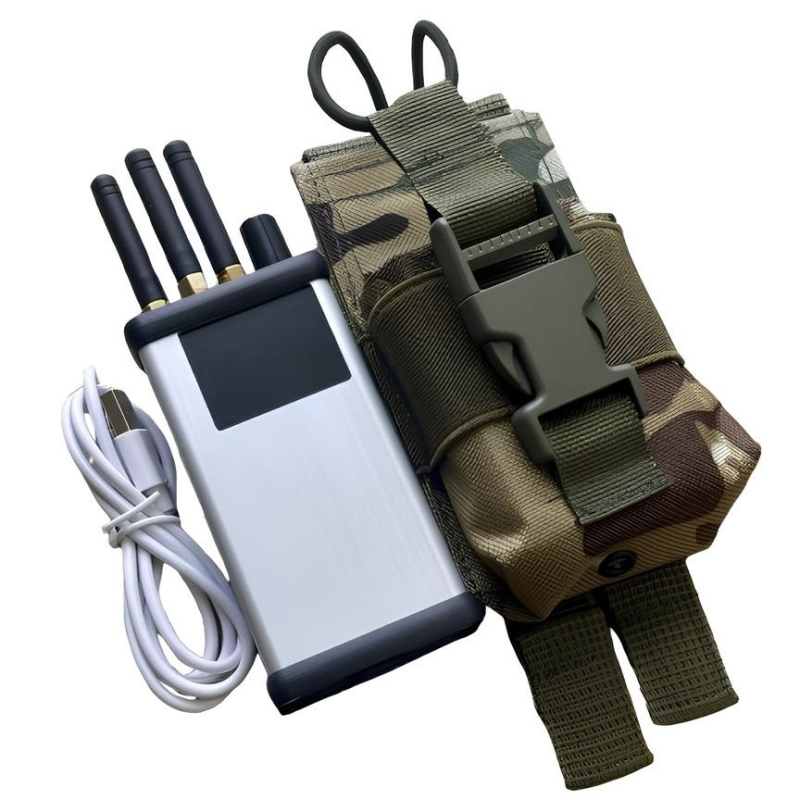

The SKYNOVA "Perets" drone detector frequency analyzer is housed in an anodized aluminum casing, ensuring strength and lightness. The device is equipped with a clip for convenient belt attachment. It supports scanning in the 750-1020 MHz, 2400-2528 MHz, and 4900-6050 MHz frequency ranges, allowing for signal detection at various levels.

Control is performed using a convenient encoder, simplifying setup and use. The device charges via a standard Type-C connector, with a full charge taking approximately 3 hours. For charging, it is recommended to use chargers with a power output of at least 5W. The device has a built-in 2500 mAh battery, which provides up to 15 hours of continuous operation on a single charge, depending on the alarm trigger frequency and alert type settings.

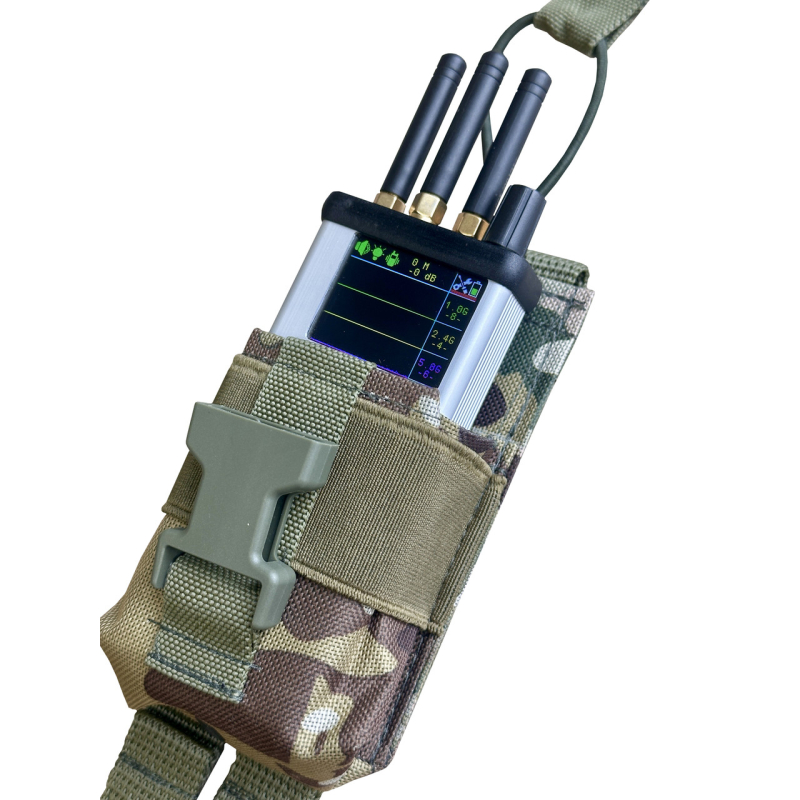

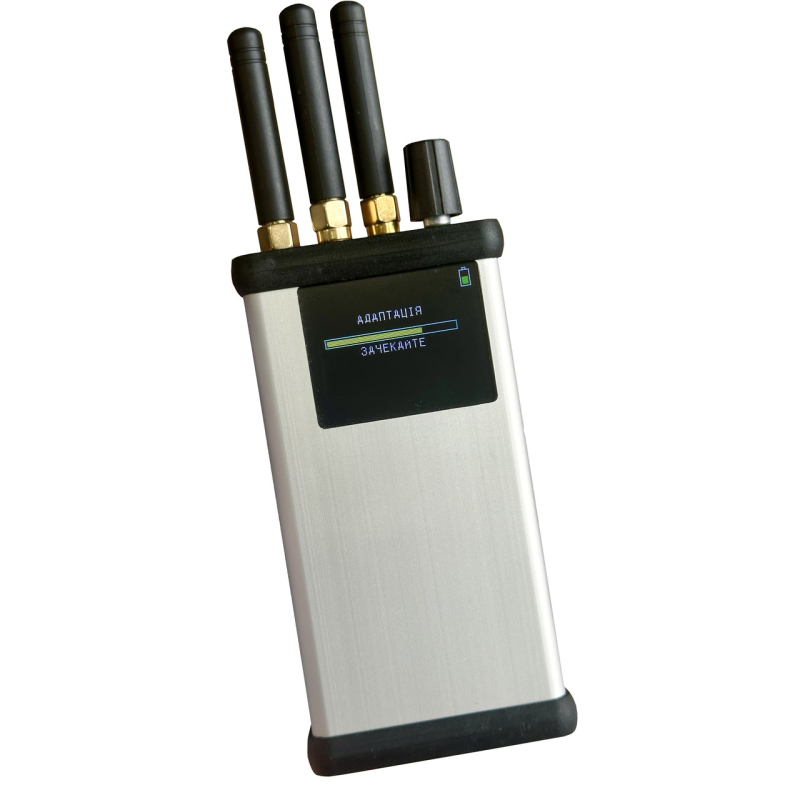

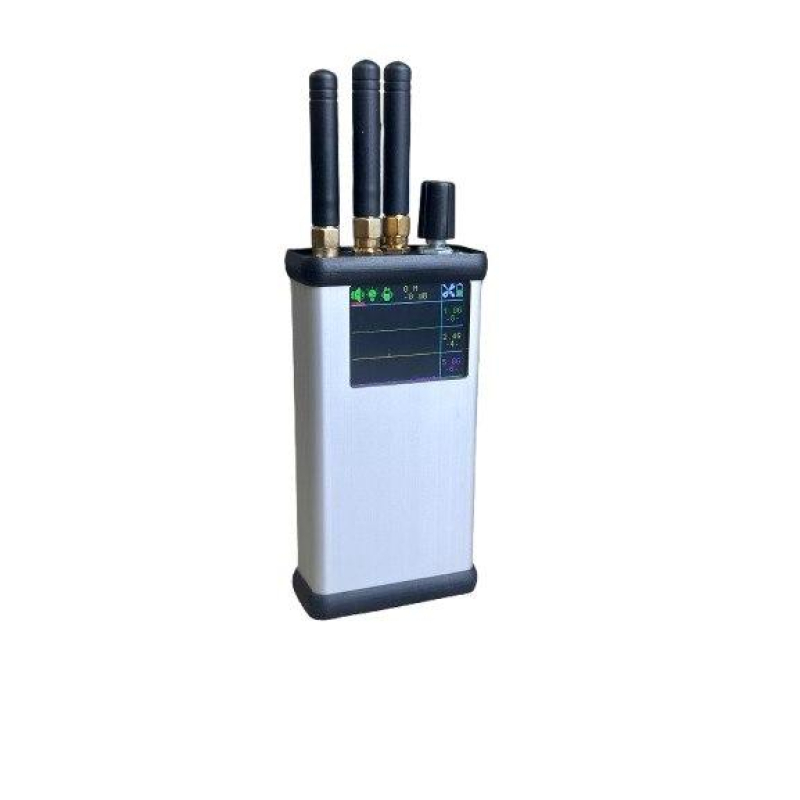

The SKYNOVA "Perets" drone detector is equipped with an automatic radio interference cancellation function, which increases its accuracy and effectiveness in complex conditions. Signals are indicated by sound, light, and vibration, making the monitoring process more convenient and accessible. The screen displays the frequency and alarm signal level, and it is possible to separately adjust the trigger level for each range. For user convenience, sound or vibration can be enabled or disabled from the main screen. The settings menu is available in Ukrainian, and a scanning range selection is also provided.

The device saves all settings after power off, which simplifies its use. Additionally, the battery charge level is displayed, allowing for power status monitoring.

The device is compact, with dimensions of 10x6x3 cm (excluding antennas) and a weight of less than 200 grams, making it ideal for field use. The casing is made of durable metal, and the antennas are removable with SMA type connectors, allowing for the connection of external remote and directional antennas. A separate alarm history screen allows viewing a list of detected frequencies and signal strengths. The device can operate from a power bank, significantly increasing autonomous operating time.

The detectors are developed by Ukrainian engineers and manufactured in Ukraine, sold exclusively within our country. We provide full technical support, prompt assistance with device usage, and quick repair or replacement of components in both warranty and non-warranty cases.

It is important to note that the device should not be turned on near an active EW radio signal jamming transmitter to avoid damage to the sensitive radio reception modules in the detector.

   The device has a low degree of dust protection, and the degree of moisture protection is not high, so the detector must be protected from direct contact with water and should not be used in rain or wet conditions. Do not leave it for a long time in direct sunlight. The operating temperature of the device should not exceed 50 degrees Celsius or be lower than -10 degrees Celsius. In low-temperature conditions, autonomous operating time may be significantly reduced.

The device does not emit radio waves and is invisible to electronic reconnaissance (SIGINT); it only receives and analyzes the current radio environment. When used in populated areas, possible radio interference in the 2.4 GHz and 5.8 GHz ranges should be considered, so use near strong radio signal sources is not recommended due to potential numerous false alarms.
