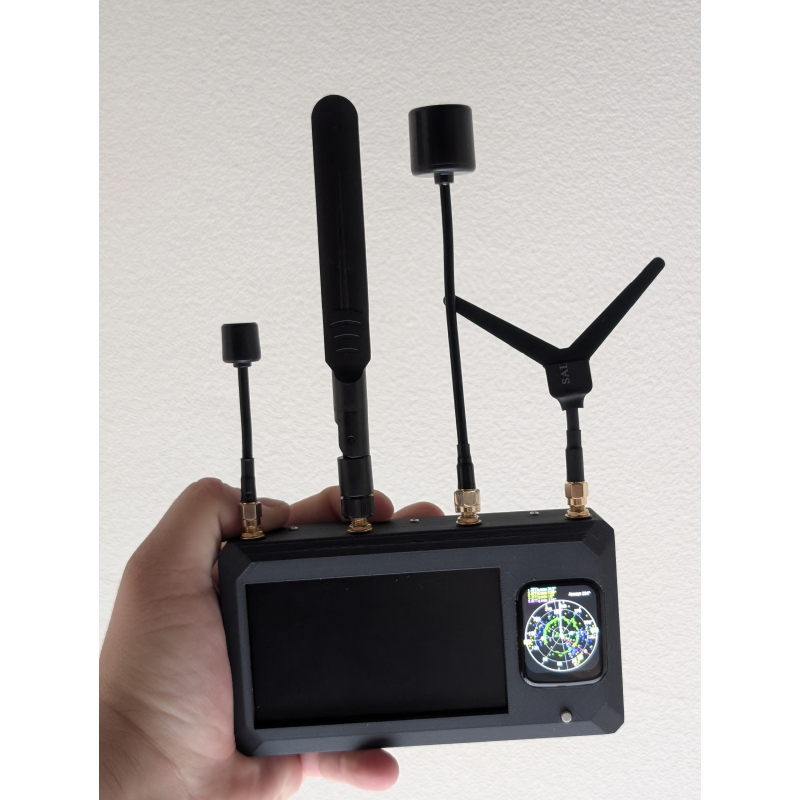

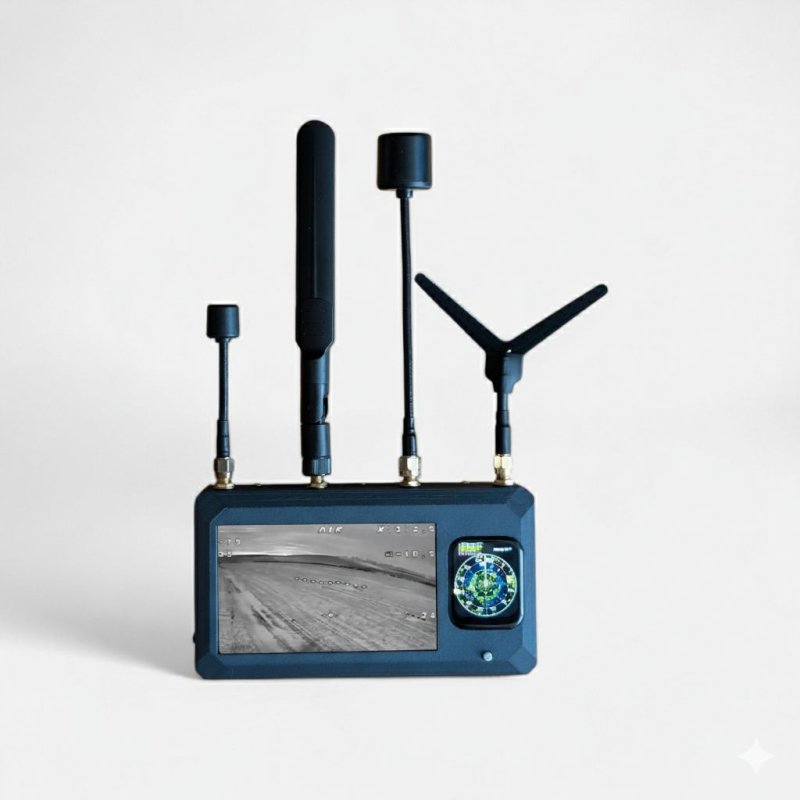

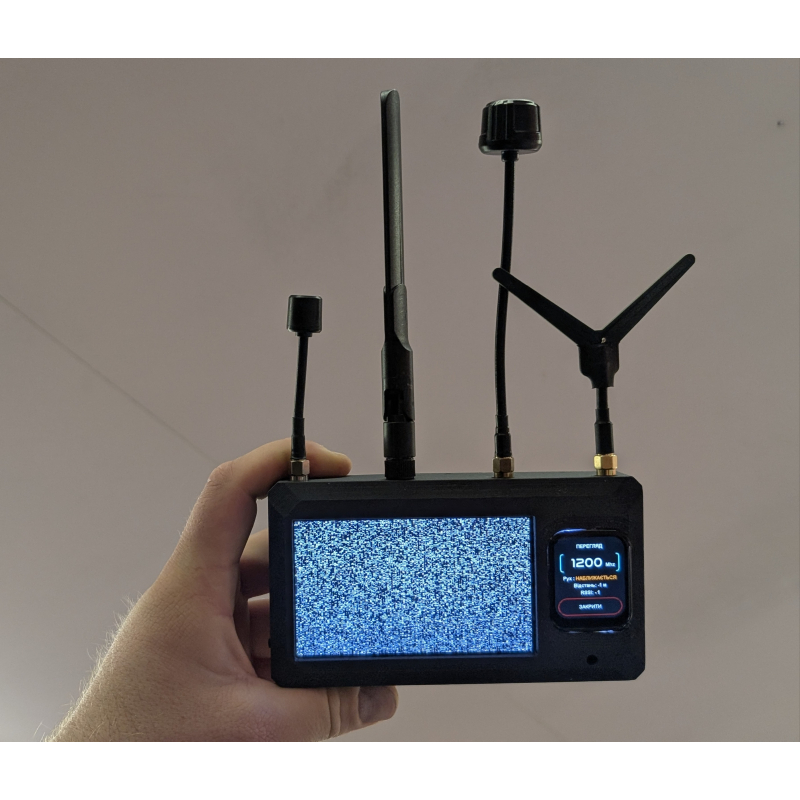

UAV Video Signal Detector Teneta SkyLink

Teneta SkyLink is a professional detector for identifying and viewing analog video signals from unmanned aerial vehicles (FPV drones) across a wide radio frequency range. The device provides fast automatic detection of active video channels, parallel background scanning, and continuous real-time radio spectrum monitoring.

Designed for tactical use, SkyLink combines autonomy, high response speed, and convenient indication for prompt decision-making.

Key Advantages

• Wide detection range: 0.96 to 6.065 GHz
• Fast signal detection: up to 3.5 seconds
• Parallel scanning of multiple bands
• Background detection while viewing video
• Two independent displays: video + service screen
• Autonomous operation up to 5 hours
• Storage and indication of active frequencies

Functionality

• automatic detection of the first active video channel;
• continuous analysis of the radio frequency spectrum;
• parallel background scanning by other receiving modules;
• formation and storage of a list of active frequencies;
• video signal viewing without interrupting airwave monitoring;
• support for directional signal source search (by level).

Main Technical Specifications

Signal type: analog video signal (FM)

Frequency Ranges:

0.96–2.37 GHz
2.37–2.56 GHz
2.99–4.05 GHz
4.86–6.065 GHz

(1.2 (0.96 – 2.37) GHz, 2.4 (2.37 – 2.56) GHz, 3.3 (2.99 – 4.05) GHz and 5.8 (4.86 – 6.605) GHz.)

Scanning step: 5/10 MHz (operator selectable)
Operating modes: automatic, with confirmation, view by frequency
Maximum detection time: up to 3.5 s
Cold start time: 6 s

Power and Autonomy

Battery type: Li-Pol
Capacity: 10,000 mAh
Operating time: up to 5 hours
Charging: 5 V, up to 3 A (USB Type-C)

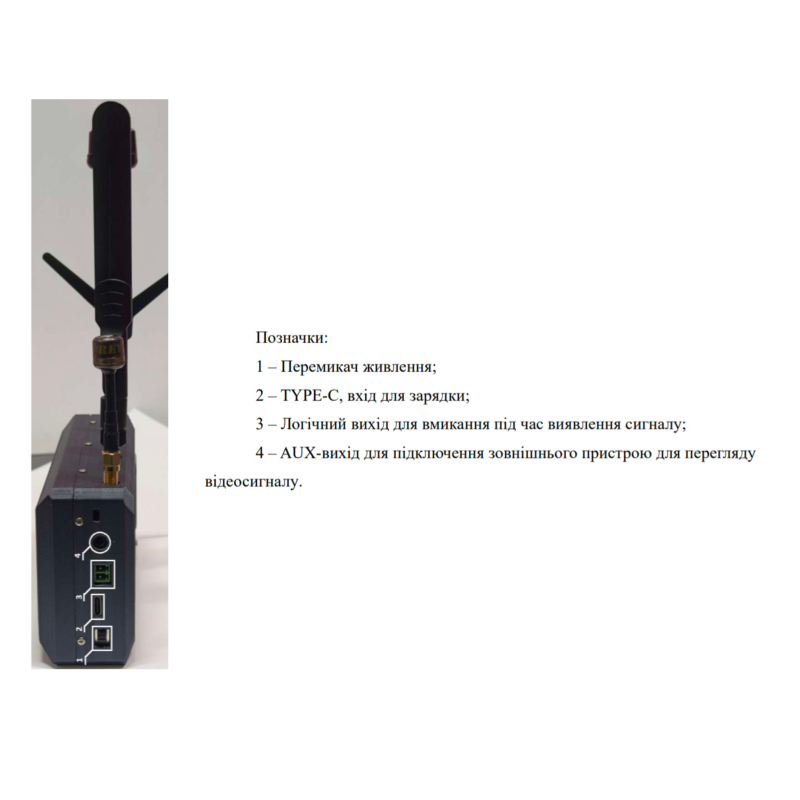

Interfaces and Design

Antenna type: SMA
Video output: AUX (analog composite video)
Dimensions: 83 × 152 × 42 mm (without antennas)

Purpose

• detection of FPV drones via video channel;
• real-time radio spectrum monitoring;
• use in mobile and stationary posts;
• autonomous operation in field conditions.
