The "Boryslav" broadband analog video detector is designed to detect and analyze analog video communication radio signals in the 700–6000 MHz range. It provides airspace control and detection of unmanned aerial vehicles with an analog video transmission system — completely passively, without unmasking emissions.
The system continuously monitors a wide frequency range, automatically scans the spectrum, and displays detected signals along with the intercepted video stream in real time via a secure WEB interface. This allows the operator not only to record the presence of a threat but also to see through the "eyes" of the enemy's FPV drone — to assess the route, target, and tactical situation.
"Boryslav" can be used independently or as part of EW systems — at stationary positions, unprepared sites, or in field conditions. Power is supplied via PoE (Power over Ethernet), which minimizes the number of cable connections and speeds up deployment. The product has been codified.
Key Features
- Passive detection of analog video signal sources.
- Automatic scanning of the 700–6000 MHz range.
- Demodulation and interception of video stream in real time.
- Formation of a grid of detected frequencies with screenshots of each recorded signal.
- Streaming of intercepted video.
- Remote control via a secure WEB interface.
- Autonomous operation without constant operator presence.
Key Advantages
- Fully passive mode: no unmasking emissions — the enemy cannot detect the detector itself.
- Long range: up to 30 km at 1.2 GHz with direct line of sight.
- Video interception: the operator sees the image transmitted by the enemy's FPV drone.
- Autonomy: at least 6 hours of continuous operation from the battery.
- Secure remote access: control via WEB interface from a safe distance.
- No operator nearby: does not require constant maintenance during operation — set it up and it works.
- Compactness: 3.8 kg and dimensions 530 × 360 × 125 mm — easy to install even on a mast with a load capacity of 5 kg or more.
- Climate resistance: IP55, operates from −33 to +40 °C.

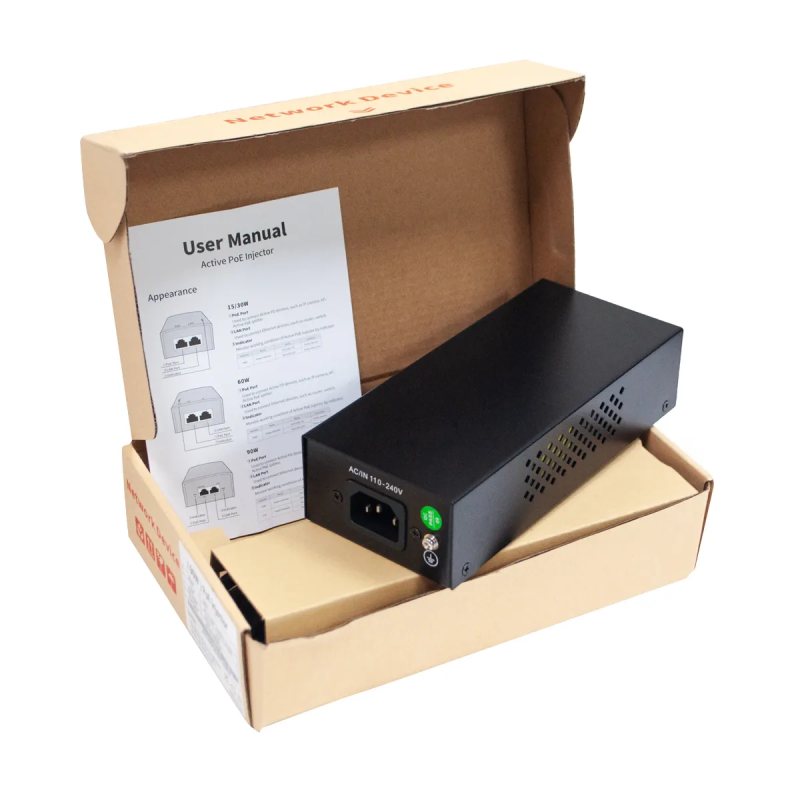

- Fast deployment: minimum cables — one PoE connection provides power and data transmission.
- Codified product: officially certified for use by the Defense Forces.
Areas of Application
- Detection of UAVs with analog FPV video transmission systems.
- Monitoring of the radio environment in the area of operation.
- Determining enemy video system operating frequencies for subsequent jamming.
- Use as part of EW systems for target detection.
- Protection of critical infrastructure facilities.
- Airspace control at stationary observation posts.
Technical Specifications
| Parameter | Value |
| System type | Passive broadband analog video detector |
| Frequency range | 700–6000 MHz |
| Demodulation system | Broadband FM |
| Sensitivity | −90 ± 2 dBm |
| Scan time | Less than 60 s |
| Detection range at 1.2 GHz | Up to 30 km (2 W transmitter, direct line of sight) |
| Detection range at 3.3 GHz | Up to 20 km |
| Detection range at 5.8 GHz | Up to 15 km |
| Protection class | IP55 |
| Power supply | PoE 48 V |
| Power consumption | Not more than 12 W (with 30 m cable) |
| Continuous operation time from battery | Not less than 6 hours |
| Net weight | Not more than 3.8 kg |
| Dimensions (L × W × H) | 530 × 360 × 125 mm |
| Operating temperature | from −33 °C to +40 °C |
| Control | Secure WEB interface |
Operation Warnings
- Adhere to PoE 48 V power parameters — using non-standard sources may damage the device.

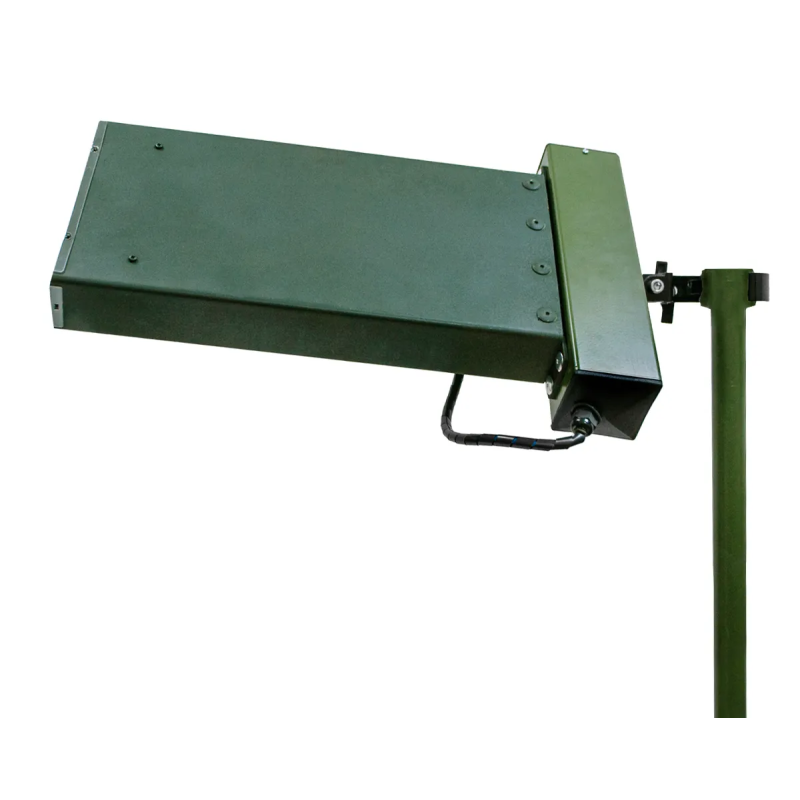

- When mounting on a mast, ensure its sufficient load capacity (5 kg or more).
- Before switching on, check the reliability of the cable connection and the integrity of the connectors.
- Access the WEB interface only via a secure network connection.
The "Boryslav" detector is a ready-made solution for passive detection of FPV threats where stealth from the enemy is critical. The combination of long range, video interception, autonomy, and simple deployment makes it an effective tool for both standalone use and as part of complex EW systems.
