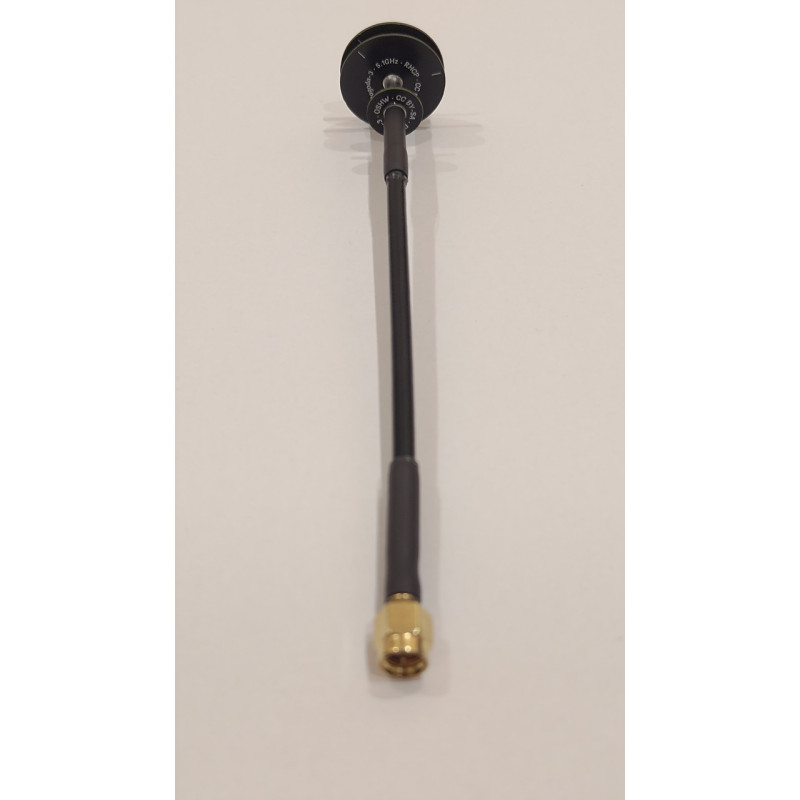

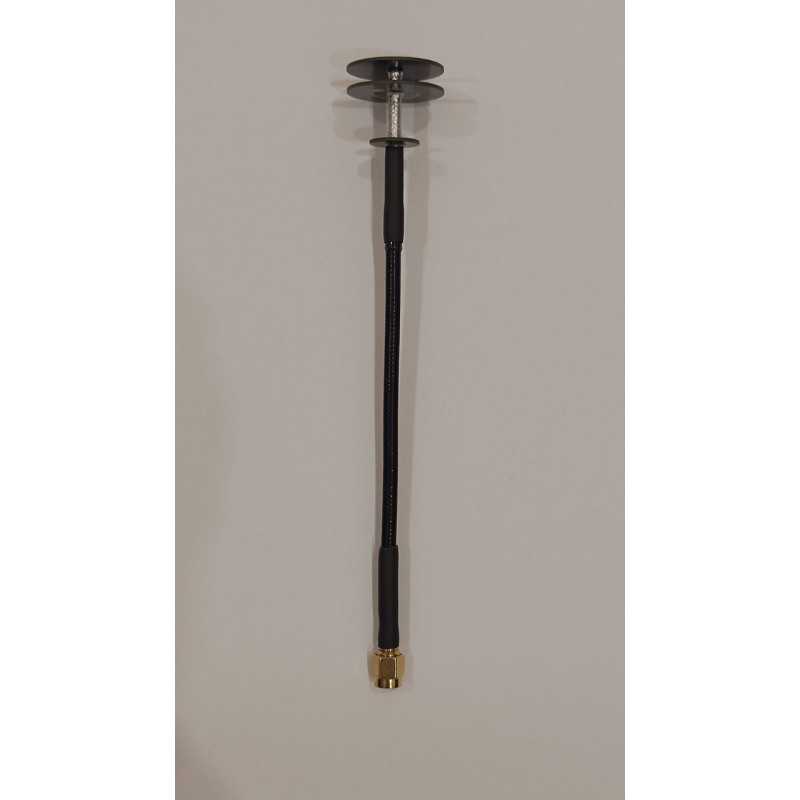

FPV 5.1 GHz Video Channel Antenna (Pagoda) by Aeronetix
Right-hand circular polarization antenna for FPV drones and video systems. Compact and lightweight design for reliable communication in the 4900–5300 MHz range, optimized for 5.1 GHz. This solution is suitable for video transmitters, unmanned aerial vehicles, and other wireless devices where weight, dimensions, and signal stability are critical.
Description and Advantages
The Pagoda by Aeronetix ensures stable video signal reception and transmission thanks to right-hand circular polarization, which reduces losses during equipment rotation and minimizes the impact of multipath reflections. Its low weight and compact dimensions make the antenna ideal for mobile and small FPV platforms. The standard SMA connector simplifies connection to most video transmitters and receivers, accelerating integration and installation.
Technical Specifications
- Frequency Range: 4900–5300 MHz (VSWR 2)
- VSWR: 1.1 at 5.1 GHz
- Gain: 1.2 dBi
- Polarization: Right-hand circular
- Connector: SMA
- Manufacturer: Aeronetix
- Product Type (product field): Antennas > Circular Antennas > Pagoda Antenna
- Product Type (original description): Antennas > Log-periodic antenna
Dimensions and Weight
The original description provides the following main dimensions and weight: Dimensions: 25 × 160 mm; Weight: 13 g. Additional technical attributes indicate: Length: 16.0 (units specified in attributes), Weight, kg: 0.100, Height: 3.0, Width: 3.0. Please note that dimensions and weight values may vary depending on the measurement method or specific product version.
Features
- Compact and lightweight design, optimal for FPV drones and mobile platforms
- Reliable signal reception due to right-hand circular polarization, reducing multipath reflection effects
- Universal connectivity via standard SMA connector for quick integration
The Pagoda 5.1 GHz antenna combines ease of installation and operation with optimized VSWR parameters and a small gain coefficient, making it an excellent choice for stable video communication over short and medium distances. It is suitable for applications where minimal weight and compact size are a priority without sacrificing video transmission channel quality.
This page contains all key specifications: frequency range 4900–5300 MHz, VSWR 1.1 @5.1 GHz, gain 1.2 dBi, right-hand circular polarization, SMA connector, Aeronetix manufacturer, and the dimensions and weight specifications mentioned above.
