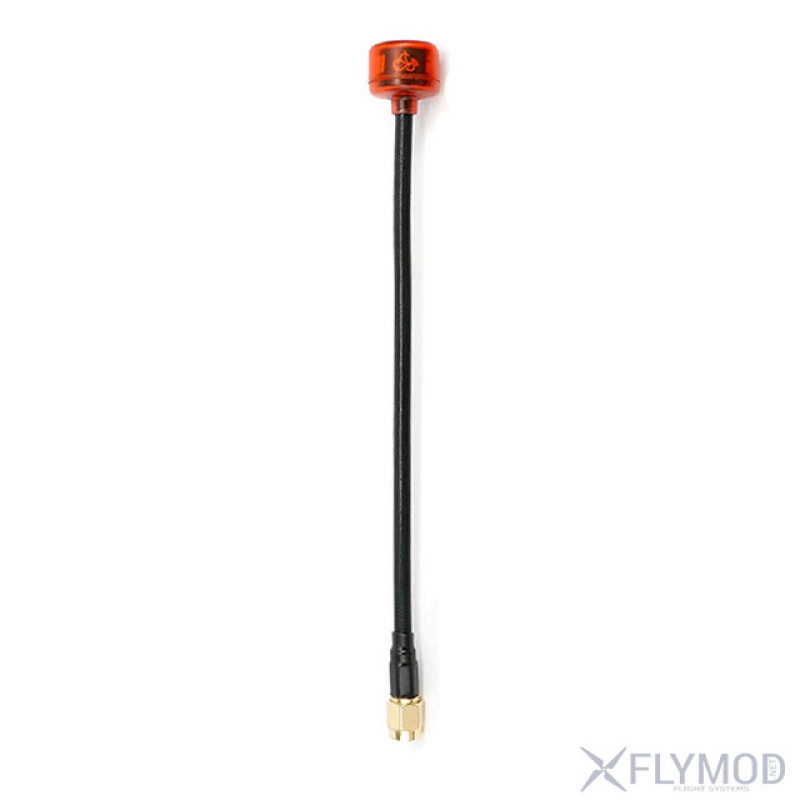

Designed by TrueRC and manufactured by Lumenier, the Rush Cherry Long 5.8G antenna features high-quality components and a thoughtful design. A durable one-piece plastic housing protects the antenna from damage.

The SMA version has a semi-rigid, double-jacketed cable for high impact resistance. The cable of the MMCX and UFL versions is partially protected by a plastic tube, onto which the included plastic mount can be installed on the frame (fixing nuts and bolts are also included).

Features

• Maximum signal coverage. The 5.6 - 6GHz frequency range covers the entire band, and all channels have virtually identical transmission power.
• Durable one-piece plastic housing. Optimized design achieved through impact testing.
• Cables are protected from damage and can be bent at any angle.
• Includes mounting bracket for antenna installation on the frame (MMCX and UFL versions only).
• The radiation field is evenly distributed, and there is no dead zone when maneuvering the signal at a large angle.
• Ideal axial ratio of circular polarization. Effectively suppresses screen flickering caused by multipath interference.
• Near-perfect SWR, with high radiation efficiency up to 98%, which can also effectively reduce video transmitter heating.

Specifications

• Frequency: 5600-6000MGz
• Gain: 1.2dBi
• Axial Ratio: approx. 1.0
• S11 SWR: max 1.4 - min 1.1
• Polarization: RHCP/LHCP (option selection)
• Connector: MMCX, SMA, UFL
• Overall Length:
  • MMCX, UFL: 150mm
  • SMA: 155mm
• Weight:
  • MMCX: 3.5g
  • UFL: 3.2g
  • SMA: 11.5g
