Linhai LH300 4x2 Quadcopter – Overview, Specifications, and Advantages
Model: Linhai LH-300 (4x2). Manufacturer: LINHAI. Product type: Motor Vehicles > ATVs. This is a reliable mid-power all-terrain vehicle, designed for leisure rides, active recreation, hunting, fishing, and commercial use on a farm.
Technical Specifications:
| Engine power, hp | 19 |
| Wheel formula | 4x2 |
| Engine type | gasoline, 4-stroke, carburetor |
| Engine displacement, cm3 | 275 |
| Engine start system | electric starter |
| Cooling system | liquid |
| Rated engine speed, rpm | 7200±150 |
| Torque, Nm / rpm | 23 at 6500 |
| Transmission (gearbox) | automatic (V-belt variator) |
| Transmission modes | L/H/neutral/reverse |
| Final drive | direct |
| Front brakes | disc on each wheel with lever actuation (combined with rear brake) |
| Rear brake | disc on wheel axle with pedal actuation (combined with front brakes) |
| Parking brake | locks rear caliper with manual actuation and handlebar lock |
| Brake hoses | reinforced |
| Wheelbase, mm | 1290 |
| Tire size | front 24x8-12, rear 24x10-10 |
| Fuel tank capacity, L | 14.2 |
| Dimensions, LxWxH mm | 2160x1170x1280 |
| Front suspension | independent, McPherson struts |
| Rear suspension | independent on double A-arms with anti-roll bar |
| Average fuel consumption, L / 100 km | 6 |
Engine and Dynamics
The Linhai LH-300 is equipped with a four-stroke gasoline engine with a displacement of 275 cm3 and a power of 19 hp, providing sufficient traction to overcome rough terrain — swamps, sand, or forest trails. The liquid cooling system ensures stable operation even during prolonged use. Starting is done by electric starter, rated speed is 7200±150 rpm, and maximum torque is 23 Nm at 6500 rpm.
Transmission and Operating Modes

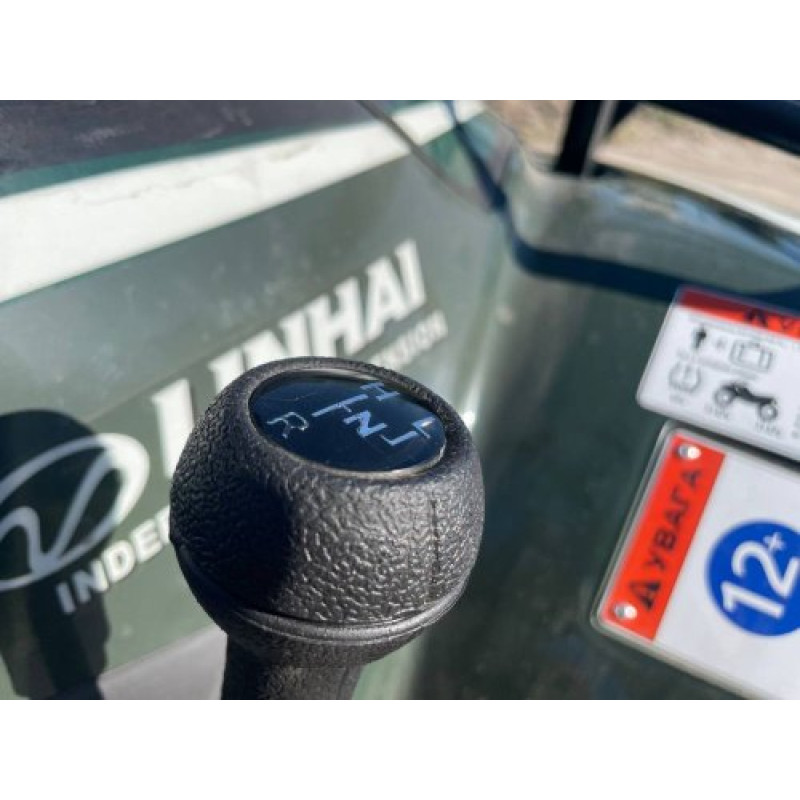

The transmission is an automatic V-belt (variator) with L/H/neutral/reverse modes and a direct final drive. This gearbox simplifies control for both beginners and experienced riders, providing smooth acceleration and convenient movement over various terrains.
Chassis, Suspension, and Brakes
The chassis includes an independent front suspension with McPherson struts and an independent rear suspension on double A-arms with an anti-roll bar. A wheelbase of 1290 mm and large tires (front 24x8-12, rear 24x10-10) ensure stability and off-road capability. The braking system features disc brakes on each wheel with combined actuation: front discs with manual actuation, rear disc with pedal actuation; a parking brake is present, which locks the rear caliper with a manual lock on the handlebars. Brake hoses are reinforced for increased reliability.
Comfort and Additional Equipment
The ATV features a comfortable seat with a backrest, rearview mirrors, handlebars with handguards, and wide fenders for protection against dirt. Two luggage racks are provided for cargo transport. The package may include a tow hitch and a winch for towing and auxiliary work. The wheels are mounted on alloy rims, which increases durability and wear resistance.
Application Area and Advantages
The Linhai LH-300 (4x2) is ideal for tourist routes, hunting, fishing, forest trips, and farm work. The main advantages of the model are its versatility, reliable engine design, liquid cooling, automatic transmission for ease of control, independent McPherson suspension, and aggressive design with projector optics.
Brief Operational Data
- Fuel consumption: average 6 L/100 km.
- Fuel tank capacity: 14.2 L.
- Dimensions (LxWxH): 2160x1170x1280 mm.
- Wheelbase: 1290 mm.
