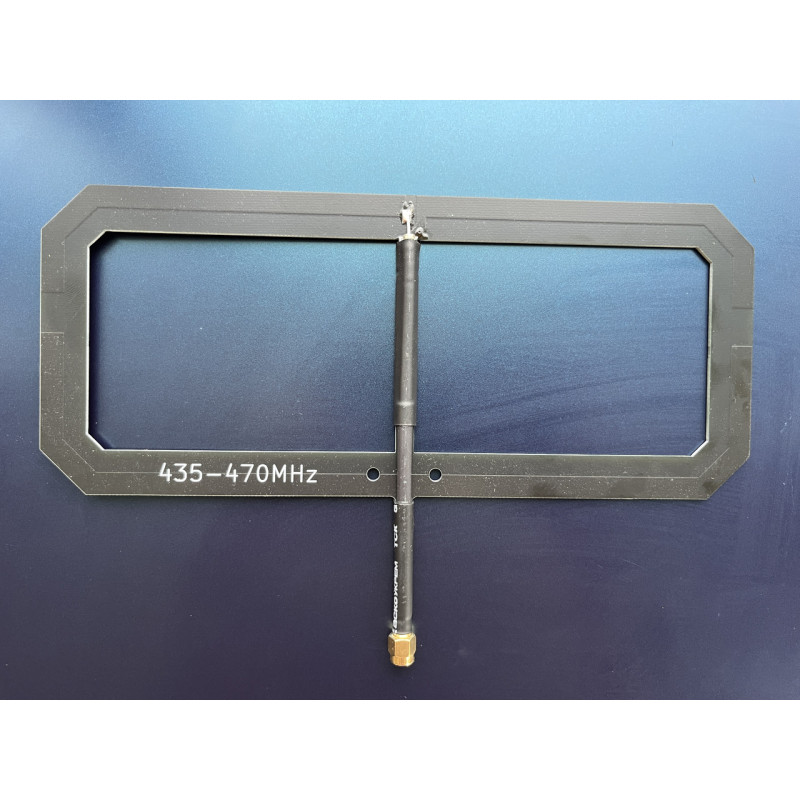

FPV Drone Control Transmitter Antenna (435 - 470 MHz) Aeronetix

Brand: Aeronetix. A compact antenna for FPV systems and radio equipment in the 435–470 MHz range, designed with requirements for low weight and ease of mounting on drones and mobile platforms. It combines high signal transmission efficiency with minimal impact on the aerodynamics and center of gravity of the aircraft, making it an excellent choice for both FPV enthusiasts and industrial applications.

Technical Parameters

The antenna provides an increased gain of 5–6 dBi, allowing for a reliable radio channel at medium distances in the 435–470 MHz band. The availability of two beamwidth values — 90° and 120° — allows for choosing the optimal directionality depending on the platform configuration and antenna placement on the drone body, which increases communication stability during flight.

The SMA connector ensures simple and quick connection to most transmitters and antenna-tuned systems, while the compact dimensions of 246 × 135 × 10 mm (with cable) and low weight make installation easy and negligible for the overall weight of the aircraft. The specification indicates a weight in the description of 35 g, while the attribute list shows a weight of 0.100 kg; please consider this difference when selecting a platform and mounts, especially if every gram is important.

The antenna is suitable for FPV operators, radio-controlled system enthusiasts, and professional users of industrial drones who require reliable communication in the 435–470 MHz range. It combines a balance between signal quality, ease of integration, and operational durability, which is important for intensive use in field missions.

Before installation, pay attention to the compatibility of your transmitter with the SMA connector and the mounting dimensions. If you need help choosing an antenna or checking compatibility with your equipment, please contact our consultants; we will help you select the optimal configuration for your tasks.

Summary: Aeronetix antenna for FPV and radio equipment, 435-470 MHz range; gain 5–6 dBi; angles 90°/120°; dimensions with cable 246×135×10 mm; SMA connector; weight in description 35 g; additional parameters: Length 17.0, Weight 0.100 kg, Height 5.0, Width 25.0; product type: Antennas > Moxon Antenna; brand: Aeronetix.
