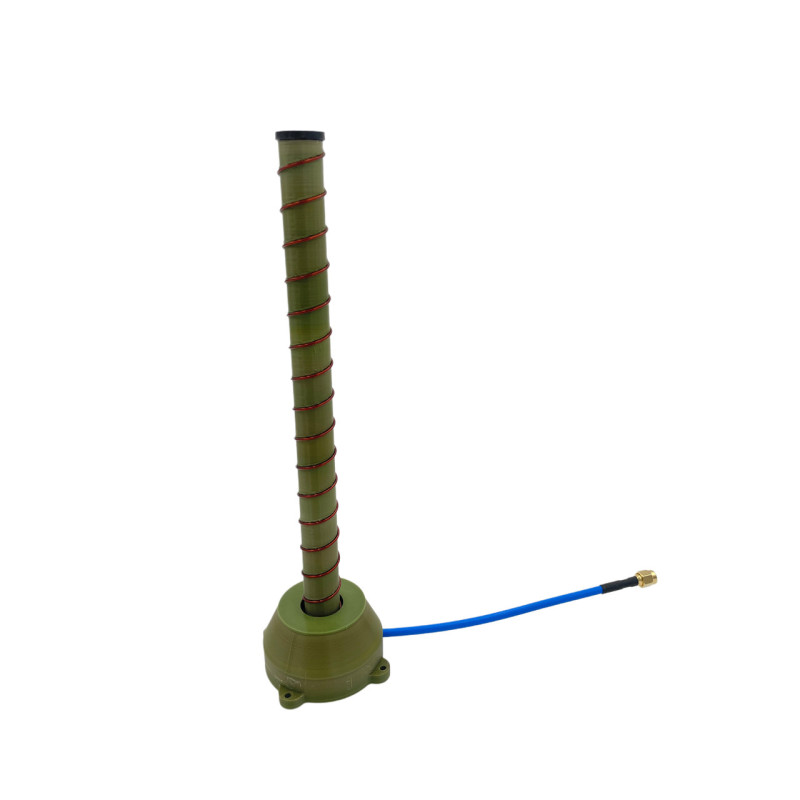

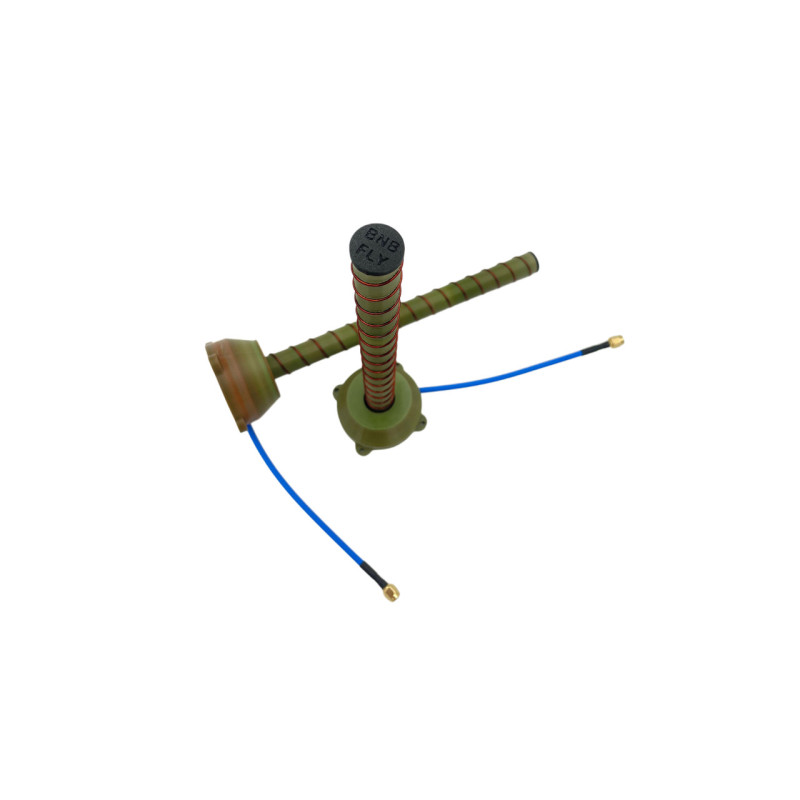

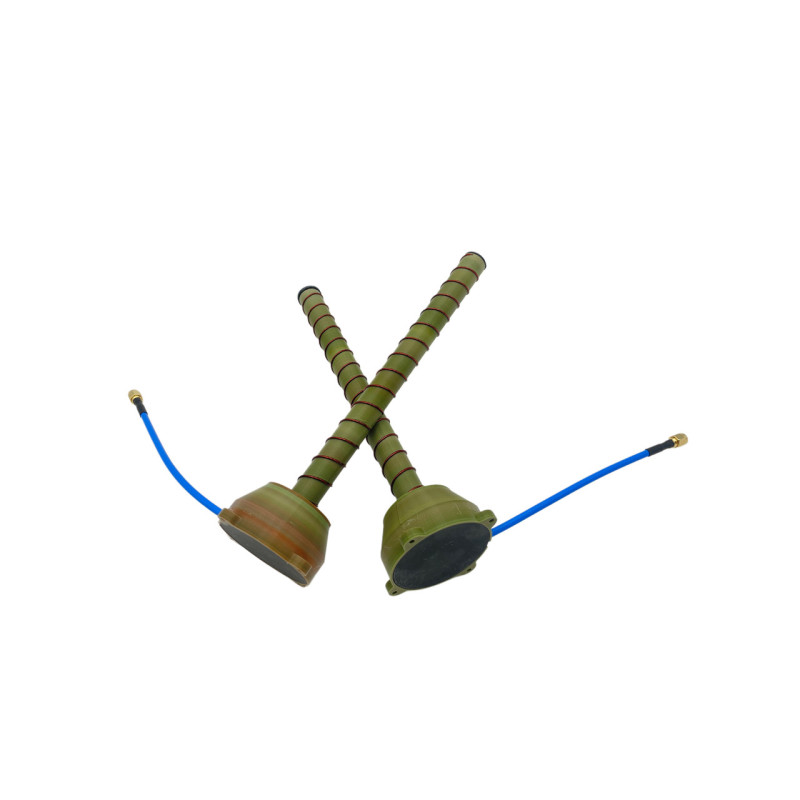

HELICAL 5.8GHz 16dBi RHCP Antenna, 17 Turns, Open Type — Overview

Custom manufacturing available! Introducing an enhanced version of the popular Helical 17 antenna from SkyReach. This circular antenna is designed for stable operation in the 4800-6000 MHz range and provides high signal transmission and reception efficiency thanks to its optimized coil and reflector geometry. The antenna is of an open type and has a lightweight design — weighing only 63 g, which makes it convenient for mounting on drones, light platforms, and stationary communication nodes.

The Helical 17 antenna demonstrates a VSWR below 1.5 across the entire operating range of 4800-6000 MHz, making it one of the best solutions in its class for matching performance. The beamwidth is approximately 30 degrees, allowing for focused coverage with high gain of 16 dBi with right-hand circular polarization (RHCP).

Key Features

• Model Name: HELICAL 5.8GHz 16dBi RHCP Antenna, 17-Turn, Open Type SMA
• Manufacturer: SkyReach
• Product Type: Antennas > Circular Antennas > Helical Antenna
• Frequency Range: 4800-6000 MHz
• Beamwidth: 30 degrees
• Gain: 16 dBi
• Reflector Diameter: 54 mm
• Cable Length: approximately 15 cm
• Antenna Conductor: 1 mm enameled copper wire
• Number of Turns: 17
• Polarization: RHCP (Right-Hand Circular)
• VSWR:
