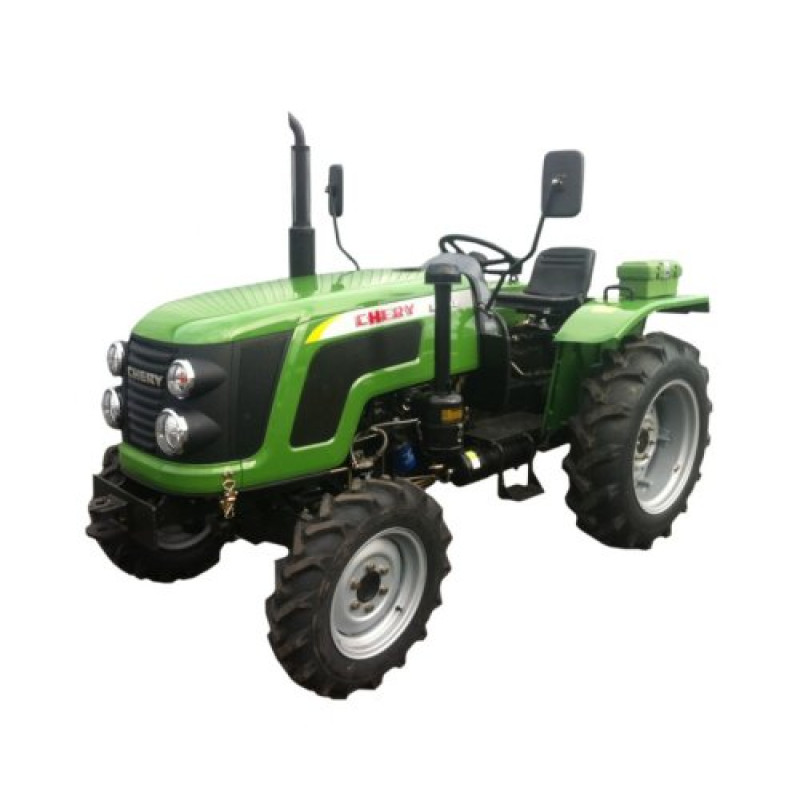

Buy Zoomlion RF-404B Mini Tractor

We offer the Zoomlion RF-404B mini tractor from the manufacturer Zoomlion — a reliable and economical solution for private farms, agricultural enterprises, or the municipal sector. This model belongs to the "Mini Tractors" category and combines compact dimensions with sufficient power and functionality for most tasks. The Zoomlion RF-404B is suitable for field work, gardening, lawn care, and short-distance transport. The tractor is available for purchase in Kyiv, Vinnytsia, Poltava, Chernihiv, and Kharkiv with the option of buying on credit, and our specialists will assist with configuration selection and operational consultation.

Engine and Transmission

The mini tractor is equipped with a 4-cylinder ZN490BT diesel engine with a liquid (water) cooling system and pre-start heating (glow plug). The nominal power is 40 hp (29.4 kW). The transmission is mechanical, with a gear configuration of (4+1)x2; the clutch is dry, dual-disc, ensuring reliable operation under intensive loads. The front axle is connectable (wheel formula 4x4), and the rear differential has a lock for improved проходимость on difficult terrains. Power steering makes control easy and maneuverable.

Hydraulics, PTO, and Hitch System

The model is equipped with a modern hydraulic system featuring high-performance pumps and two pairs of hydraulic valves. The hitch lifting capacity is 665 kg, allowing for efficient operation with most typical mounted and trailed implements. The power take-off (PTO) operates at 540/1000 rpm, ensuring compatibility with a wide range of attachments. It includes a manual parking brake and rear pneumatic brakes.

A 30 L fuel tank, combined with a specific fuel consumption of 255 g/kWh, makes operation economical. The drawbar pull is 8.5 kN. The minimum turning radius is 3.2 m, which facilitates work in confined spaces.

Overall tractor dimensions: length/width/height — 3312/1530/1915 mm, wheelbase — 1818 mm, ground clearance — 405 mm. The machine's weight is 1550 kg, speed range — 1.8-27.5 km/h, tire size — 7.5-16/12.4-24. The design coefficients and parameters ensure reliable operation in field conditions.

We also recommend considering other popular models for comparison: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, DTZ 5244, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng 350 L, DW 244, DTZ 5404K, Solis 26 Tractor, Solis 50, Shifeng SF-244.

Technical specifications:

Power, hp (kW)40 (29.4)
Wheel formula4x4, connectable front axle
Enginediesel, ZN490BT
Number of cylinders4
Displacement, L2.545
Specific fuel consumption, g/kWh255
Coolingliquid
Fuel system preheatingglow plug
Gearbox(4+1)x2, mechanical
Transmissiongear
Steeringwith power steering
Clutchdual-disc
Differentialrear lockable
Rear brakespneumatic
Parking brakeyes
Dimensions L/W/H, mm3312/1530/1915
Wheelbase, mm1818
Front/rear axle width, mm1100/960-1460
Ground clearance, mm405
Weight, kg1550
Speed, km/h1.8-27.5
Tire size7.5-16/12.4-24
Tank volume, L30
Power take-off, rpm540/1000
Drawbar pull, kN8.5
Hitch lifting capacity, kg665
Number of hydraulic valve pairs2
Minimum turning radius, m3.2
Weights, kgnone
Cabinnone

In brief: Zoomlion RF-404B is a four-cylinder diesel mini tractor with liquid cooling, convenient power steering, a lockable rear differential, and sufficient power reserve for most agricultural tasks. This model is suitable for various mounted implements and operation in different climatic conditions.
