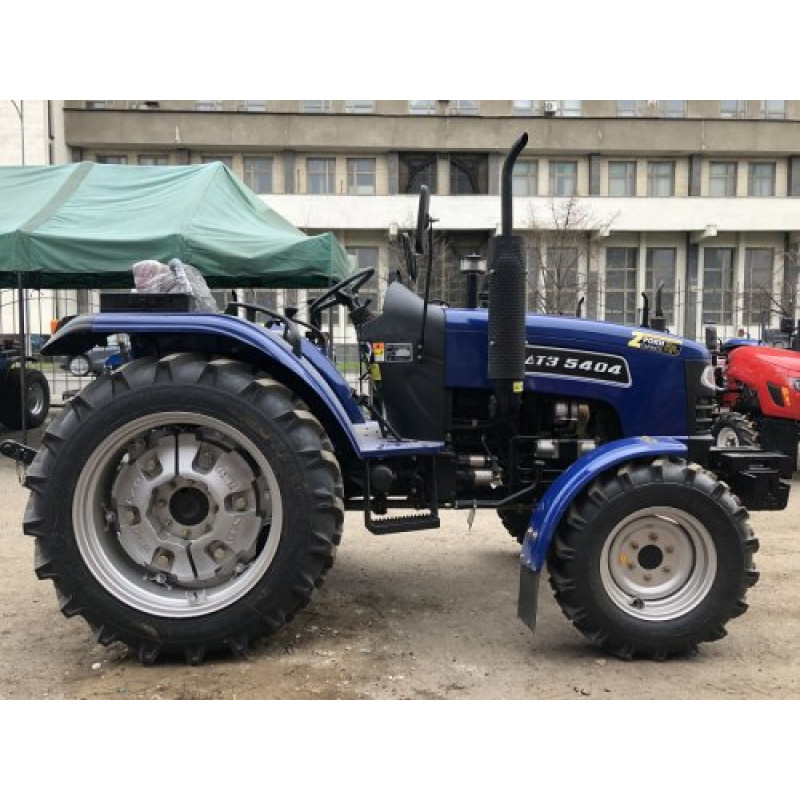

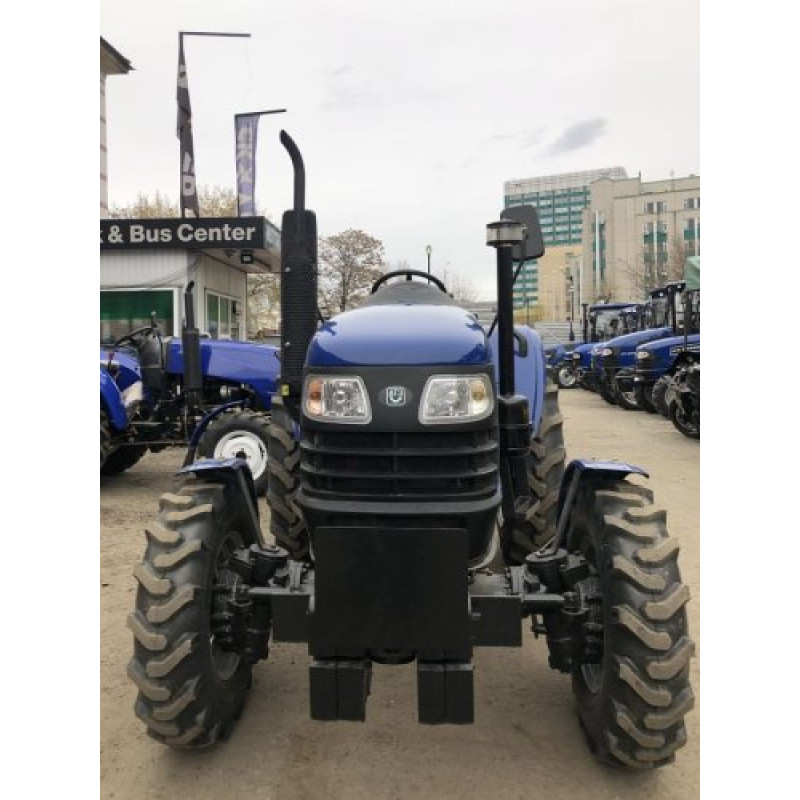

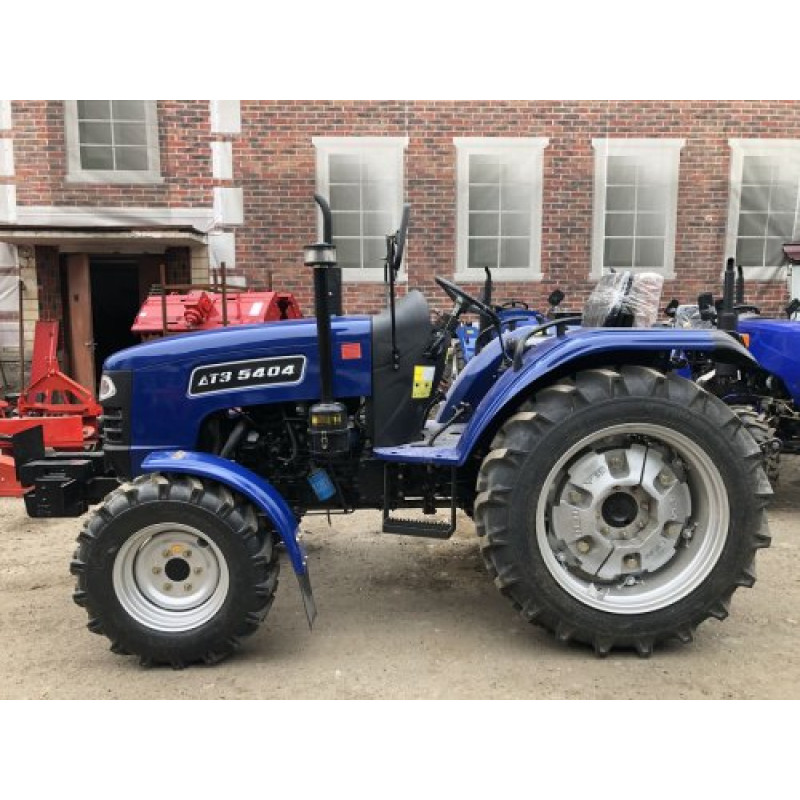

Mini Tractor DTZ 5404 - equipment with character for your farm!
Manufacturer: Dnipropetrovsk Tractor Plant (DTZ). The DTZ 5404 Mini Tractor is a reliable and versatile unit for private farms, agricultural work, utility, and construction tasks. This model combines ease of operation, durable components, and a competitive price on the Ukrainian market.
Engine and drive: The tractor is equipped with a four-stroke direct-injection diesel engine CF 4B40T with a power of 40 hp (29.4 kW), cylinder volume of 2545 cm3, 4 vertical cylinders, and nominal crankshaft speed of 2400 rpm. The injection system provides a pressure of 18.5-19.0 MPa. An electric starter is provided for starting, and safe starting is implemented on the clutch pedal. Cooling is forced liquid with an expansion tank, ensuring stable operation under load.
Key features of the chassis and control: 4x4 all-wheel drive, rear differential lock, power steering with a separate expansion tank for comfortable control and reduced turning radius. Minimum ground clearance is 350 mm, allowing work on rough terrain and protecting crops. The reversible gearbox increases flexibility in various operations.
Operation, transmission, and speeds
The transmission is mechanical gear, the clutch is dry, dual-disc. The gearbox is designated as (4x2)+(4x2), reverse. Theoretical forward speed: 1.8-28.7 km/h, reverse: 0.5-16.3 km/h. The braking system is installed on the rear wheels, disc with mechanical drive and dual pedals; a parking brake is available. Minimum turning radius without brakes is 4.1 m, with brakes is 3.55 m.
Hydraulic system, PTO, and lifting capacity
The hydraulic system is equipped with a gear pump, power steering, and an integrated hydraulic cylinder for the hitch mechanism with a separate gear hydraulic pump. The hydraulic system oil tank volume is 6.5 L. The power take-off (PTO) shaft is rear splined, 6 splines, Ø35; PTO speed is 540/1000 rpm. The maximum lifting capacity of the hitch mechanism is 650 kg. Simultaneous PTO operation and towing are possible.
Additional parameters and filtration: fuel tank volume — 36 L; fine fuel filter — CX0706; air filter — contact-oil type: high air intake with translucent cyclone, oil bath, metal mesh. Lubrication system oil filter — yes; engine crankcase oil volume — 6 L, transmission / front axle oil volume — 12.0 L / 4.0 L.
Traction power and weights: nominal traction force — 9.2 kN. Additional front / rear weights — 4x20 / 2x45.
Wheelbase and tracks: wheelbase — 1850 mm. Wheel track: front — 1300, 1340 mm; rear — 1420, 1500, 1620, 1700 mm. Tire size: front — 7.50-16; rear — 11.2-28. Overall dimensions (LxWxH): 3600x1400x2070 mm. Tractor weight — 1770 kg.
This mini tractor is equipped with a double-acting symmetrical steering hydraulic cylinder, has a parking brake, and is suitable for a wide range of tasks: field and garden cultivation, work with attachments, utility, and construction operations.
Advantages of the DTZ 5404 model: 40 hp power, 4x4 all-wheel drive and differential lock, reversible gearbox for delicate operations, power steering, reliable CF 4B40T diesel engine with electric starter and liquid cooling system. The model combines proven technical solutions and modern components, making it a profitable investment for the farm.
How to buy: the mini tractor is usually available for pre-order. In the store, payment is possible by cash, in foreign currency, by bank transfer with VAT, or by arranging a loan with a partner bank. To order, add the item to the cart and leave your contact details — a manager will contact you to arrange and consult on loan terms.
Technical specifications of the DTZ 5404 model:
| Tractor power: | 40 hp/29.4 kW |
| Wheel drive: | 4x4 |
| Engine type: | diesel, 4-stroke with direct injection |
| Engine model: | CF 4B40T |
| Cylinder volume: | 2545 cm3 |
| Number and arrangement of cylinders: | 4, vertical |
| Nominal crankshaft speed: | 2400 rpm |
| Fuel injection pressure: | 18.5-19.0 (185-190) MPa (kgf/cm2) |
| Safe start: | on clutch pedal |
| Engine cooling: | liquid |
| Cooling system expansion tank: | yes |
| Fuel tank volume: | 36 L |
| Fine fuel filter: | CX0706 |
| Air filter: | contact-oil type: high air intake with translucent cyclone, oil bath, metal mesh |
| Lubrication system oil filter: | yes |
| Crankcase oil volume: | 6 L |
| Nominal traction force: | 9.2 kN |
| Power steering: | yes |
| Gearbox: | (4x2)+(4x2), reverse |
| Clutch: | dry, dual-disc |
| Transmission: | mechanical gear |
| Theoretical forward speed: | 1.8-28.7 km/h |
| Theoretical reverse speed: | 0.5-16.3 km/h |
| Braking system: | on rear wheels, disc, with mechanical drive, dual pedals |
| Parking brake: | yes |
| Steering hydraulic cylinder: | double-acting symmetrical |
| Minimum turning radius without brakes: | 4.1 m |
| Minimum turning radius with brakes: | 3.55 m |
| Additional front / rear weights: | 4x20 / 2x45 |
| Transmission / front axle oil volume: | 12.0 L / 4.0 L |
| Power take-off (PTO) shaft: | rear splined, 6 splines, Ø35 |
| Hydraulic system pump type: | gear pump |
| Hydraulic lift drive: | integrated hydraulic cylinder, separate gear hydraulic pump |
| Power take-off (PTO) shaft speed: | 540/1000 rpm |
| Maximum lifting capacity of hitch mechanism: | 650 kg |
| Possibility of simultaneous PTO connection and towing: | yes |
| Hydraulic system oil tank volume: | 6.5 L |
| Minimum ground clearance: | 350 mm |
| Wheelbase: | 1850 mm |
| Wheel track: | front 1300, 1340 mm; rear: 1420, 1500, 1620, 1700 mm |
| Tire size: | front 7.50-16; rear 11.2-28 |
| Overall dimensions (LxWxH): | 3600x1400x2070 mm |
| Weight: | 1770 kg |
The DTZ 5404 model is an optimal combination of power, off-road capability, and maneuverability for various tasks. If you need a functional mini tractor with proven components and an affordable price, the DTZ 5404 deserves attention.
