WALKSNAIL AVATAR HD KIT V2 VIDEO SYSTEM (DUAL ANTENNAS VERSION)

Product Description

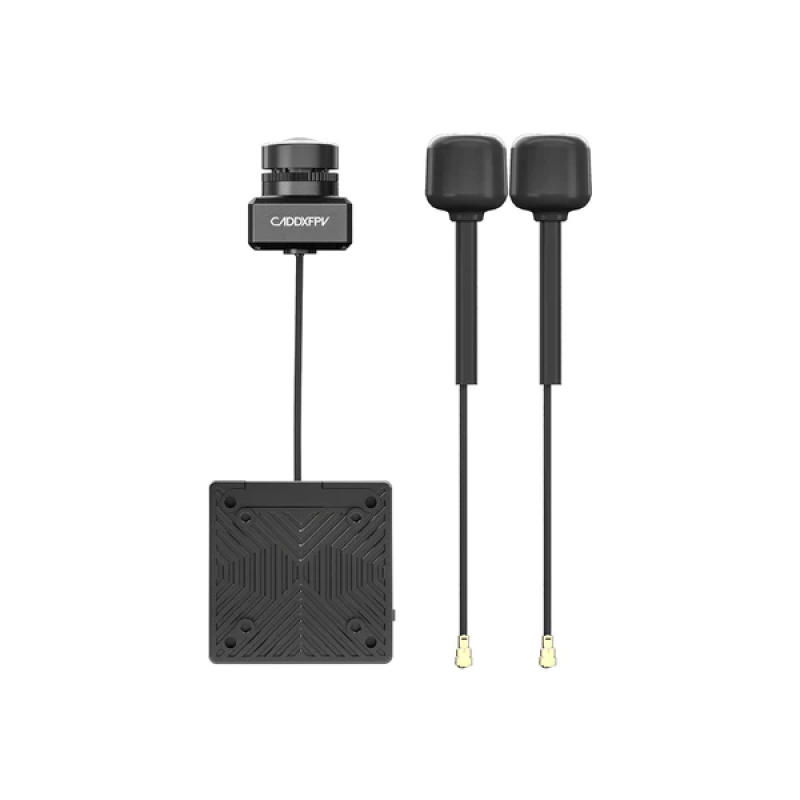

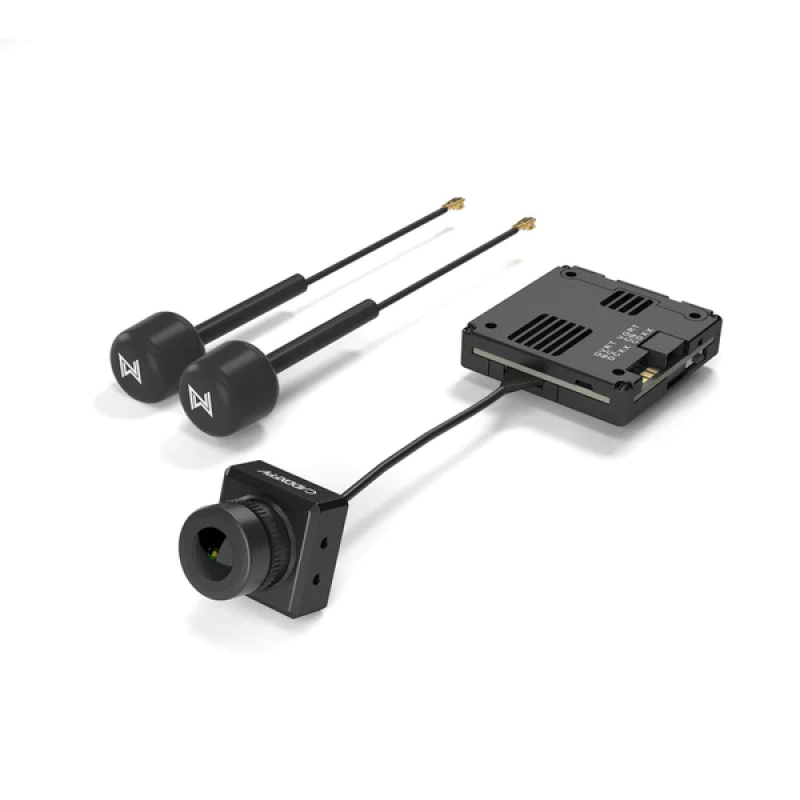

The Walksnail Avatar HD Kit V2 video system from Walksnail is a modern FPV transmitter and camera kit with dual antennas, designed for pilots who value image quality, low latency, and reliability. This kit combines the Avatar V2 camera with a native 4:3 sensor and a powerful VTX with built-in 32GB memory. The system supports the H.265 codec, provides high visual quality at 1080p, and an average latency of approximately 22 ms, making it an excellent choice for fast FPV piloting and HD recording. Brand: Walksnail. Category: Drones & Quadcopters > Transmitters.

Features

• Dual antennas for stable and powerful signal
• 4K compatibility
• 1080P at 120FPS support
• Low latency — approximately 22 ms
• 4:3 image measurement mode
• Transmission range up to 4 km
• Simple and thoughtful housing design
• Wide FOV160° viewing angle
• Built-in 32GB memory for 1080p/720p recording
• Gyroflow support (only supported with 32GB VTX)
• Wide input voltage: 6V-25.2V (up to 6S support)
• The only native 4:3 high-definition sensor in the FPV industry
• 20mm x 20mm and 25mm x 25mm mounting holes
• Updated board and housing design, improved VTX quality and TVS protection
• Optimized antenna placement for better protection
• More convenient frequency binding button location
• Additional plate for two power connection methods

Key Technical Specifications

CAMERA
Model: Avatar V2 Camera
Image Sensor: 1/3.2-inch 4MP 4:3 sensor
Resolution: 1080P/60fps; 720P/100fps; 720P/60fps; 1080P/120fps compatible; 1080P/100fps compatible
Aspect Ratio: native 4:3 / 16:9
Lens: 2.1mm
FOV: 160°
Aperture: F2.0
Shutter: Rolling shutter
Minimum Illumination: 0.001 Lux
Weight: 7.2g
Dimensions: 19*19*22 mm
Coaxial Cable: 140 mm
Gyroflow: Only supported with 32GB VTX

VTX
Model: Avatar V2 Module (with dual antennas)
Communication Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC:

The Walksnail Avatar HD Kit V2 is an ideal solution for those seeking a balanced HD-FPV setup: a camera with high detail and a wide viewing angle, a VTX with built-in 32GB memory, and dual antennas for stable long-range signal transmission. The kit supports modern video formats and high frame rates, allowing for smooth and clear images during flight. Thanks to its wide power range (6V-25.2V) and universal mounts (20×20 mm and 25×25 mm), the device easily integrates into various drone and quadcopter frames. This system is suitable for both FPV team competitions and amateur or semi-professional aerial videography.

Other important features include H.265 encoding support for efficient recording and memory space saving, optimized VTX protection (TVS), and thoughtful placement of antennas and controls for convenient access during flight preparation.
