Rush Tank Solo 5.8GHz 1600mW
Rush Tank Solo 5.8GHz 1600mW — a powerful and compact video transmitter (VTX) for FPV systems, manufacturer: China. The product belongs to the category: Drones and Quadcopters > Transmitters. This solution is designed for professional and amateur pilots who require a stable video signal, precise power adjustment, and efficient heat dissipation in a compact form factor.

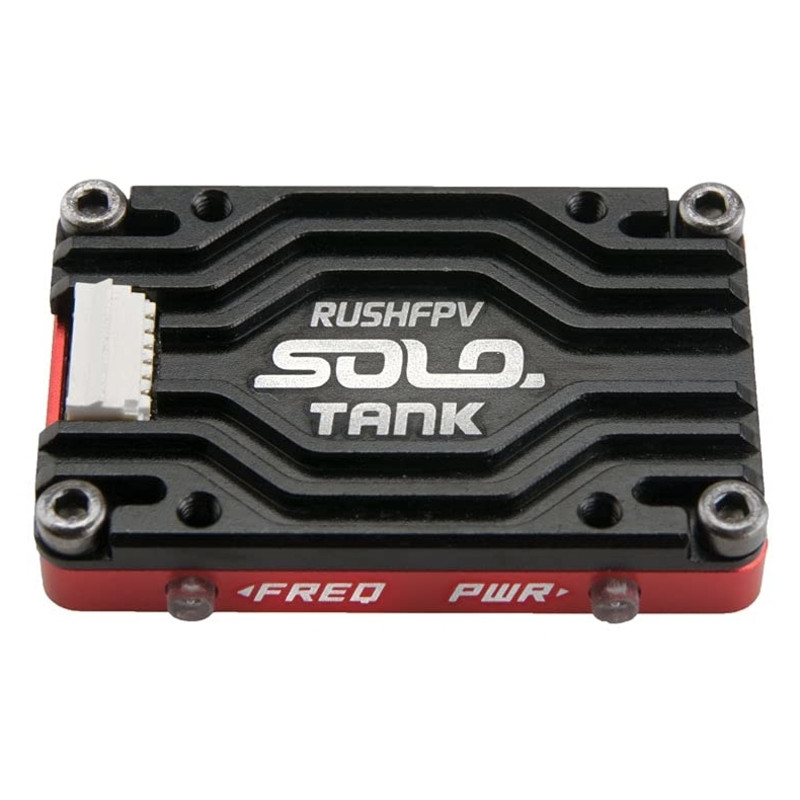

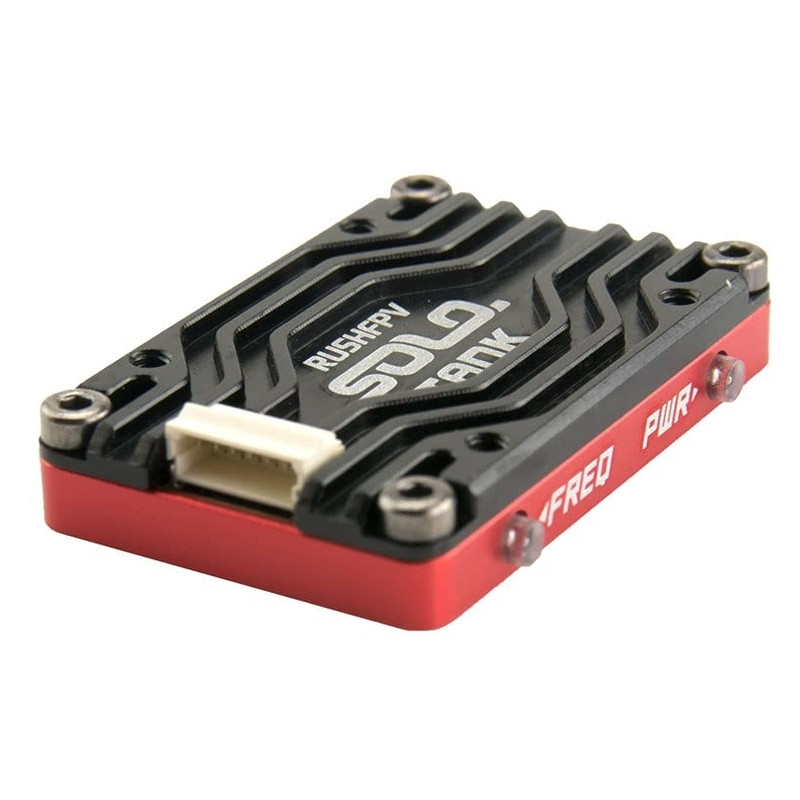

The Rush Tank Solo features a durable aluminum casing and a well-designed heatsink for improved thermal management, backlit LED buttons for quick identification of the set frequency, band, and power level, and support for official Smart Audio from TBS for integration with OSD and flight controllers. The device is equipped with a built-in AGC microphone for high-quality audio, supports power calibration for each channel, and LOCK-ON technology to eliminate frequency drift.
| Features | Description |
|---|---|
| Power up to 1600mW | Maximum output power up to 1600 milliwatts |
| Durable aluminum casing and efficient heat-dissipating heatsink | The casing is made of durable aluminum, ensuring efficient heat dissipation |
| LOCK-ON technology eliminates frequency drift | Special LOCK-ON technology eliminates frequency drift for stable signal reproduction |
| Officially licensed Smart Audio from TBS | Licensed Smart Audio from TBS for convenient and professional audio signal setup |
| LED buttons | Buttons that are backlit by LEDs and indicate the set frequency, band, and power |
| Power calibration for all channels | Ability to calibrate power for each channel for precise settings |
| No frequency scanning | No automatic frequency scanning for stable operation on the selected channel |
| Input voltage 7-36V (HV) with dual power filter | Wide input voltage range from 7V to 36V (HV) with dual power filter |
| Built-in high-quality AGC microphone | Built-in automatic gain control for high-quality audio |
The main technical parameters of the video transmitter are listed below:
| Parameters | Value |
|---|---|
| Power | PIT25/400/800/1600mW |
| Number of channels | 48CH |
| Input voltage | 7-36V (2-8S LiPo) |
| Output voltage | 5V 1A (600mA) |
| Audio | Supports audio input |
| Video format | CVBS PAL/NTSC |
| Dimensions | 37 x 24 x 6.7 mm |
| Weight | 11.4g |
The Rush Tank Solo supports four power levels: 25mW, 400mW, 800mW, and a maximum of 1600mW (PIT25/400/800/1600mW), allowing adjustment to flight regulations and specific application conditions. The presence of 48 channels reduces the risk of interference and provides a wide selection of operating frequencies. A wide power supply range of 7-36V (2-8S LiPo) with a dual power filter ensures stable operation in various configurations, and the 5V 1A (600mA) output allows powering peripheral devices.
The CVBS PAL/NTSC video format makes the device compatible with most FPV cameras and monitors, and the compact dimensions of 37 x 24 x 6.7 mm and weight of 11.4 g make the Rush Tank Solo an excellent option for lightweight frames and small drones where mass and size are important.
FREQUENCY TABLE
| CHANNEL | Band A | Band B | Band E | Band F | Race Band | Low Band |
|---|---|---|---|---|---|---|
| 1 | 5865 | 5733 | 5705 | 5740 | 5658 | 5362 |
| 2 | 5845 | 5752 | 5685 | 5760 | 5695 | 5399 |
| 3 | 5825 | 5771 | 5665 | 5780 | 5732 | 5436 |
| 4 | 5805 | 5790 | 5645 | 5800 | 5769 | 5473 |
| 5 | 5785 | 5809 | 5885 | 5820 | 5806 | 5510 |
| 6 | 5765 | 5828 | 5905 | 5840 | 5843 | 5547 |
| 7 | 5745 | 5847 | 5925 | 5860 | 5880 | 5584 |
| 8 | 5725 | 5866 | 5945 | 5880 | 5917 | 5621 |

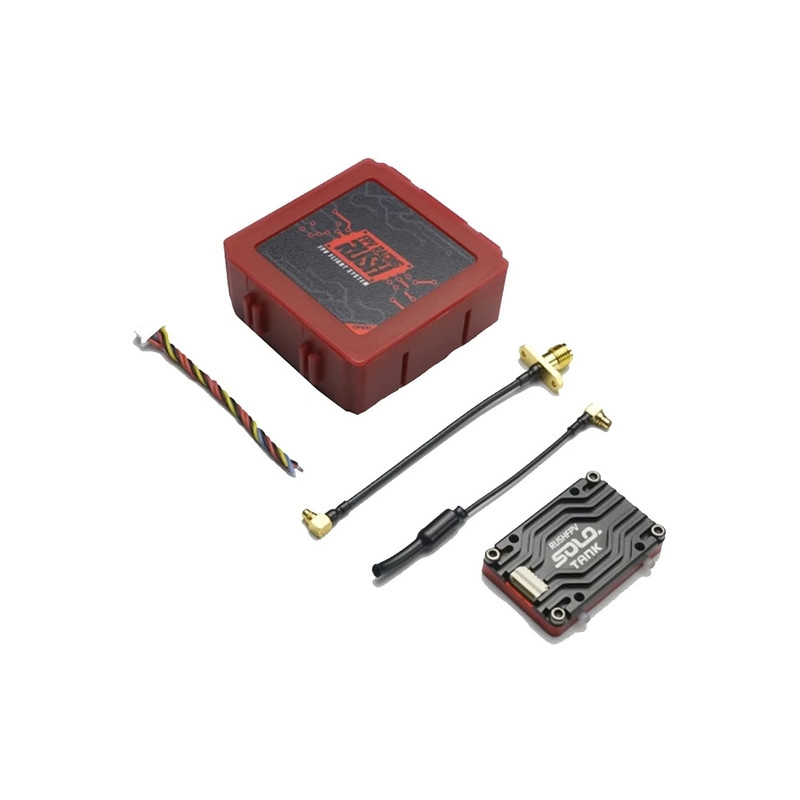

Package contents:
- 1 x Rush Tank Solo Video Transmitter
- 1 x 90° MMCX to SMA jack adapter
- 1 x 6-pin cable
- 1 x Linear antenna
- 1 x User manual
The Rush Tank Solo is suitable for racing, freestyle, and everyday flights where a reliable signal and flexible power settings are required. Its features — LOCK-ON for no frequency drift, official Smart Audio from TBS for professional integration, and the ability to calibrate power for each channel — make this VTX an excellent choice for a wide range of applications. For compatibility and other technical questions, refer to the product description or contact store specialists.
