Unmanned Aircraft System (UAS) «ASTRALEXPRESS 13» with 15 km reel length

A commercial and military offer from the Astral Express brand — the comprehensive «ASTRALEXPRESS 13» solution with a 15 km fiber optic cable reel, supplied with service and personnel training. This is a ready-to-use kit for combat and special missions, including 50 UAVs, which allows for scaling operations and ensuring continuity of task execution.

Key features and purpose

«ASTRALEXPRESS 13» is designed for long FPV flights with video transmission and control via an optical reel. The system is suitable for reconnaissance, fire adjustment, patrolling, and other tactical operations requiring reliable long-distance communication. The supply includes operator training and service support, ensuring rapid deployment of the system.

FPV specifications

• Reel length: 15 km
• Payload: up to 3.0 kg
• Flight speed, km/h:
• cruising — 60–70
• maximum — 115
• Maximum flight duration: up to 17 min

Dimensions

• Length: 480 mm (equipped 750 mm)
• Width: 480 mm (equipped 750 mm)
• Height: 50 mm (equipped 300 mm)

ASTRALEXPRESS fiber optic reel specifications

• Reel length: 15 km
• Fiber type: single-mode G657a2, 0.25 mm
• Video protocol: PAL / NTSC
• Control protocol: CRSF
• Operating wavelength: 1310 / 1550 nm
• Reel weight and dimensions: 15 km — 1.45 kg; 370×140 mm

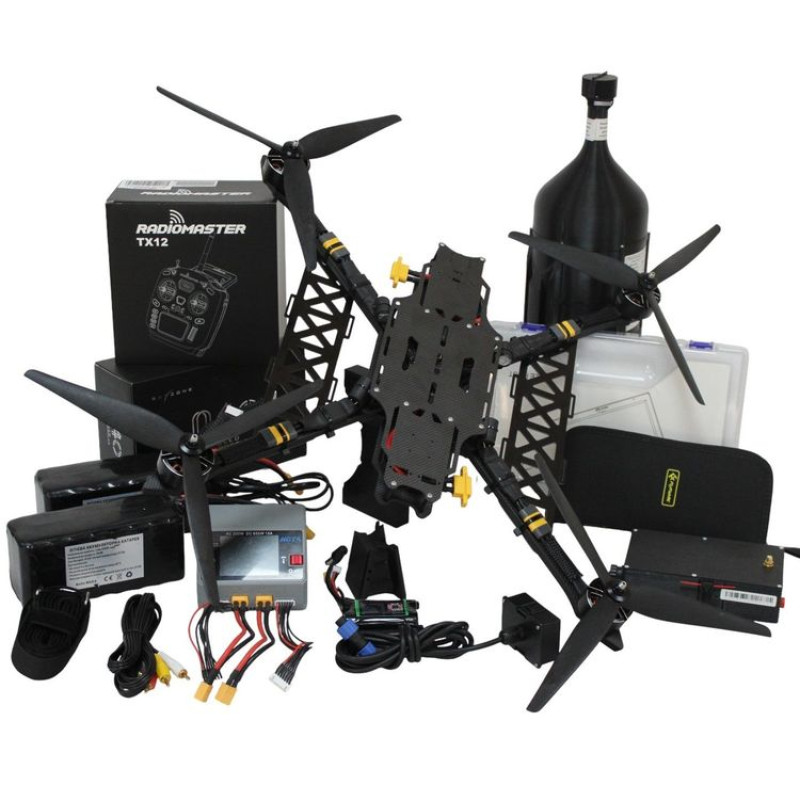

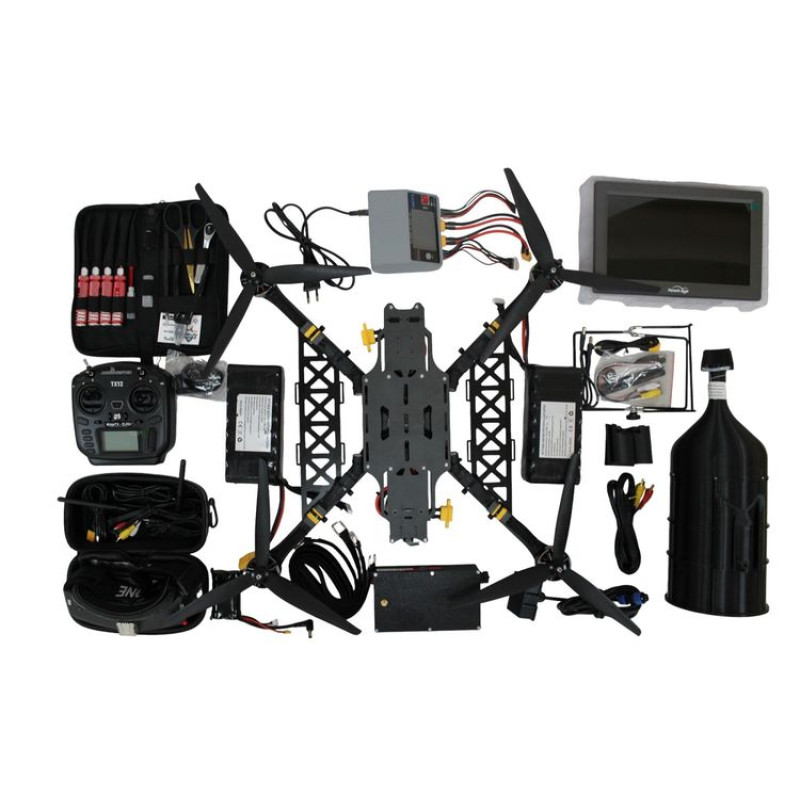

Kit composition

The delivery set includes all necessary elements for combat use and maintenance:

• 1 x UAV
• 2 x Battery 8s3p 15000 mah
• 4 x Reusable strap for warhead attachment
• 4 x Velcro straps for battery
• 1 x Reel mount
• 1 x Optical module «ASTRALEXPRESS» (15 km)
• 1 x Control box
• 1 x FPV goggles with power elements
• 1 x Remote control
• 1 x Optical signal conversion module (NSU-5 pcs.)
• 1 x FPV DVR monitor
• 1 x Charger for rechargeable batteries (АКБ 6s3p 12000 mah)
• 1 x ZІP kit (maintenance tools)
• 1 x Transport packaging
• 1 x Packaging for UAV-1 unit
• 1 x Packaging for optical module-1 unit for 8 pcs.

Brand: Astral Express. Product type: Drones & Quadcopters > FPV Drones. The system combines high technical characteristics of the reel with reliable flight data of the UAV, making «ASTRALEXPRESS 13» an optimal choice for tasks where communication range, stable video stream, and rapid deployment are important.

Thanks to single-mode G657a2 fiber and support for PAL/NTSC video protocols, the system ensures compatibility with various reception and recording equipment. The CRSF control protocol guarantees reliable operation of remotes and modules in complex radio interference conditions. Lightweight and compact reels weighing 1.45 kg and measuring 370×140 mm facilitate transportation and rapid deployment at the operation site.

ASTRALEXPRESS 13 is a system with a full set of components for autonomous operation and maintenance, which reduces preparation time for available tasks and increases application efficiency.
