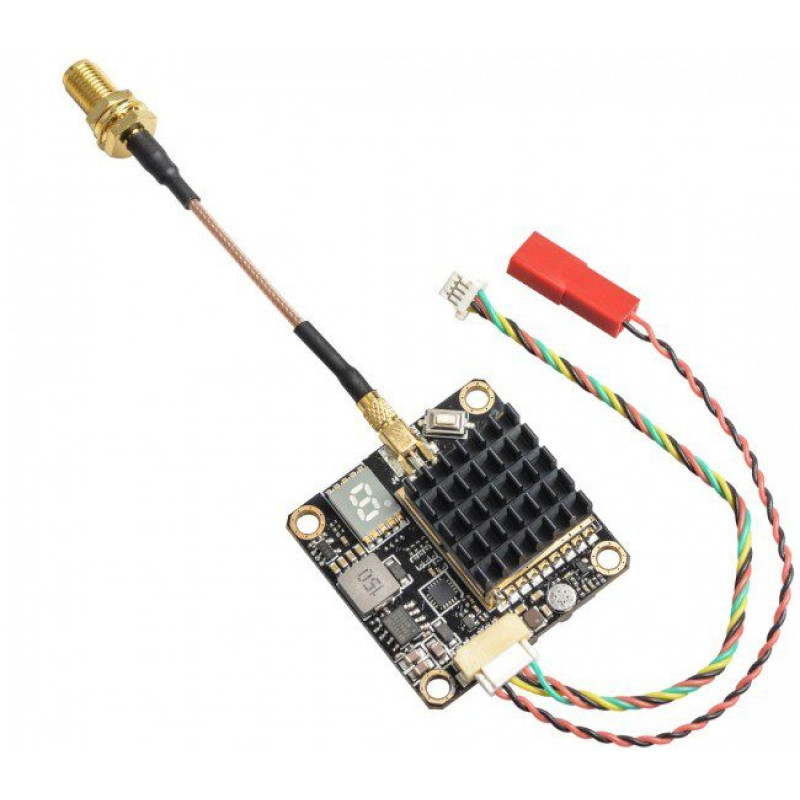

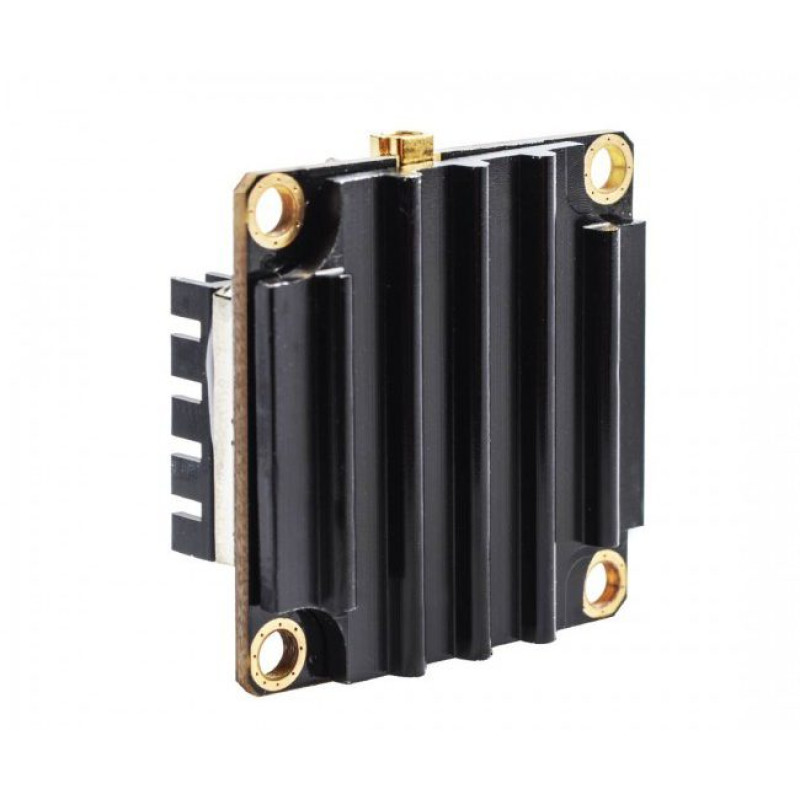

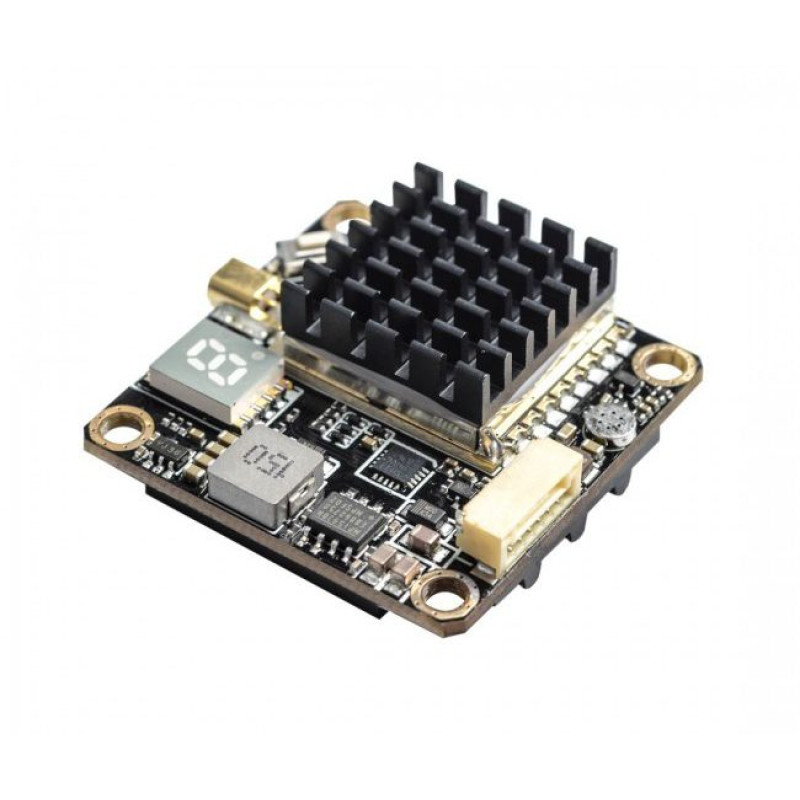

AKK VTX FX2 Dominator 250/500/1000/2000mW 5.8GHz 37-Channel Video Transmitter

Brand: AKK. The AKK VTX FX2 Dominator is a compact and powerful 5.8 GHz video transmitter designed for FPV pilots who require stable and flexible video signal transmission. The module combines a wide range of power options, advanced Smart Audio control capabilities, compatibility with standard power sources, and simple integration into a drone frame, making it an excellent solution for both racing and freestyle or amateur flights.

Key Features

• 1. Power Modes: Four power levels are available — 250 mW, 500 mW, 1000 mW, and 2000 mW, allowing you to select the optimal mode for the required range and operating conditions.
• 2. 37 Channels at 5.8 GHz: A wide selection of channels helps avoid interference and operate in environments with many other FPV systems.
• 3. Wide Power Input Range: The transmitter operates from 7 to 26 V, making it compatible with various battery configurations and power sources.
• 4. Camera Power: The built-in 5 V BEC (less than 500 mA) allows powering an FPV camera without additional modules, simplifying wiring on the frame.
• 5. Smart Audio: Remote control of VTx settings (frequency, power change) without direct access to the module.
• 6. PIT-mode: “Clean” PIT-mode with an output power of up to 0.01 mW for safe local setup and minimal radiation during ground adjustments.
• 7. Display and Button on Housing: Digital indicator and button for convenient frequency and power switching without connecting to radio control.

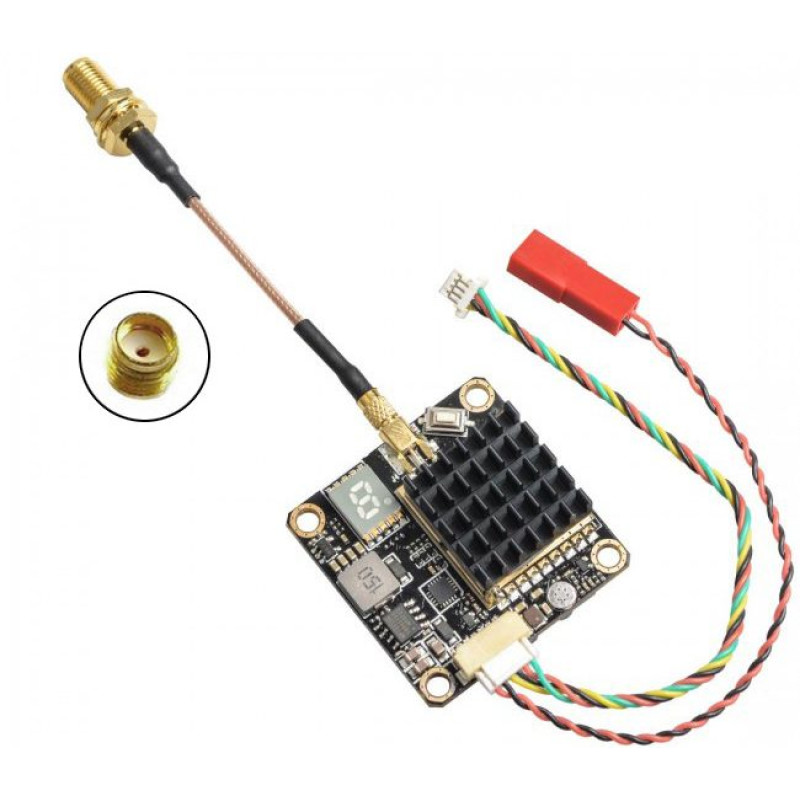

• 8. Adapter Included: An MMCX→SMA adapter adds flexibility when connecting antennas.
• 9. Built-in Microphone: The transmitter has a built-in microphone, as specified.

Parameters and Description
