The universal EW system «GUARD» is a multi-channel modular electronic warfare station with wide application possibilities: trench and stationary. It is designed to protect positions, strongholds, and equipment from FPV drones and kamikaze drones. The basic configuration operates in 4 channels at 50 W mode with a total power of 200 W. All key elements have IP68 protection — including relays that can operate even underwater. The device has 6 powerful magnetic holders for quick installation, remote control from a remote launch panel, a built-in 35 Ah battery, and supports power from the mains or a vehicle's on-board network.
⚠️ A 30% deposit can be made to start production, with the remainder due upon completion.
Key Features
- Name: Universal EW system «GUARD»
- Product type: EW jammers (trench / stationary version)
- Number of channels (basic): 4 channels with expansion capability up to 10
- Channel power: 50 W (standard module) / 60–100 W (LoRa modules)
- Total power: 200 W (basic configuration 4 × 50 W)
- Effective operating range: 50–400 m
- Power supply: 12 V or 24 V (external source with toggle switch)
- Built-in battery: 35 Ah (also works from car battery)
- Cooling: active + passive
- Antennas: spring omnidirectional 32×60, gain 6 dBi (IP68 protection)
- Housing mounting: 6 powerful magnetic holders
- Module protection: circulator against failure if antennas detach
- Control: remote launch panel
Available 50 W module frequency bands (selectable)
- 200–300 MHz
- 300–400 MHz
- 400–500 MHz
- 500–610 MHz
- 610–720 MHz
- 720–840 MHz
- 840–950 MHz
- 950–1050 MHz
- 1050–1200 MHz
- 1200–1350 MHz
- 2.4 GHz (Mavic) — optional
- 5.2 GHz (Autel) — optional
- 5.8 GHz (video) — optional
LoRa modules 100 W (for 3 bands from one antenna)
LoRa modules have increased noise density and cover 3 bands from a single module and a single antenna. 3 configurations are available:
- 100–400 MHz (60 W): 100–200 / 200–300 / 300–400 MHz
- 420–720 MHz (100 W): 420–500 / 500–610 / 610–720 MHz
- 720–1020 MHz (100 W): 720–840 / 840–950 / 950–1020 MHz
Possible combinations of standard 50 W modules with LoRa modules: 4+1 LoRa = 7 channels, 2+2 LoRa = 8 channels, 1+3 LoRa = 10 channels.
Advantages
- Full IP68 protection: fans, converter, modules, relays — all components are protected from dust and water; relays can operate even underwater.
- Circulator included: protects the module from failure if antennas detach (unlike unprotected Chinese counterparts).
- Powerful spring antennas: 32×60 at 6 dBi, high radiation efficiency.
- 6 magnetic holders: quick mounting on any metal surface — vehicle, stronghold, trench.
- Built-in 35 Ah battery: operation without external power, also possible to power from a car battery.
- Universal power supply: 12 V or 24 V via a toggle switch.
- Remote launch panel: remote frequency control for operator safety.
- Dual cooling: active + passive for stable operation in prolonged missions.
- Flexible configuration: 4 channels as standard with expansion capability up to 10 using LoRa modules.
Package Contents
- EW device «GUARD» with 4 channels — 1 pc.
- Spring antennas 32×60 — 4 pcs. (per number of channels)

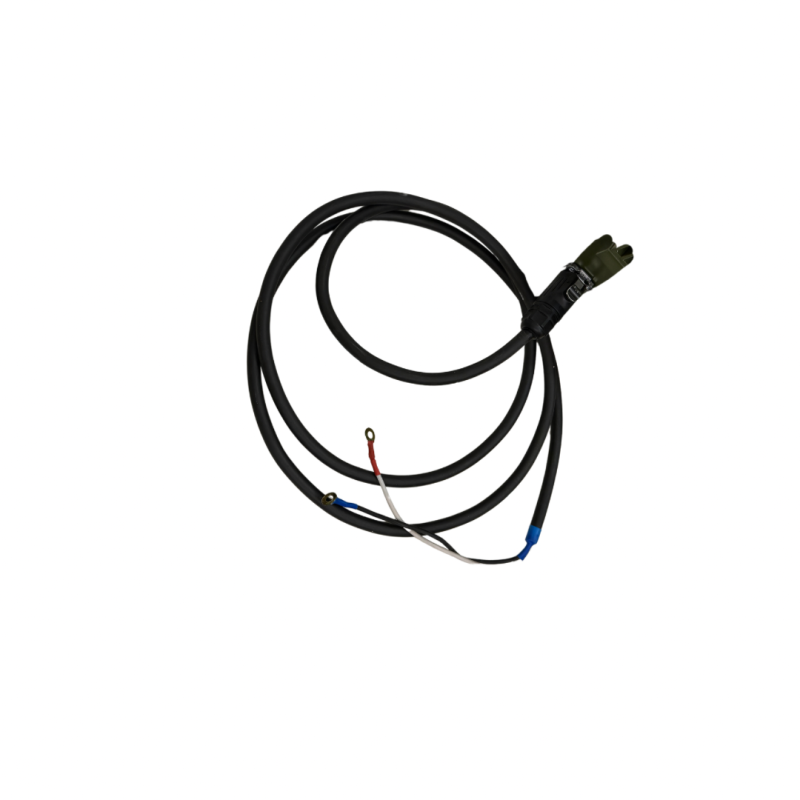

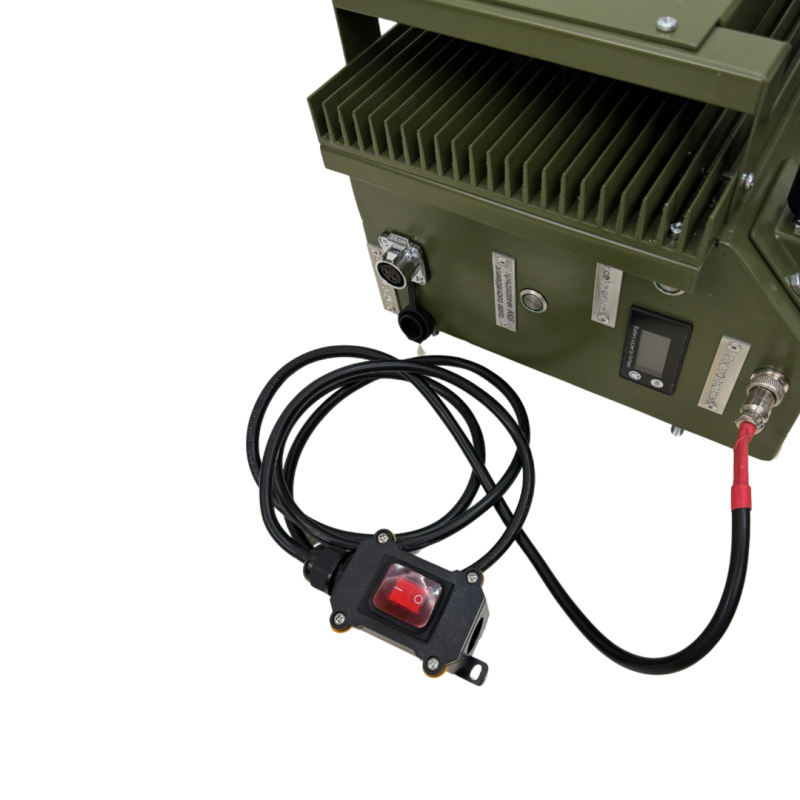

- Power cable 12 V / 24 V with toggle switch

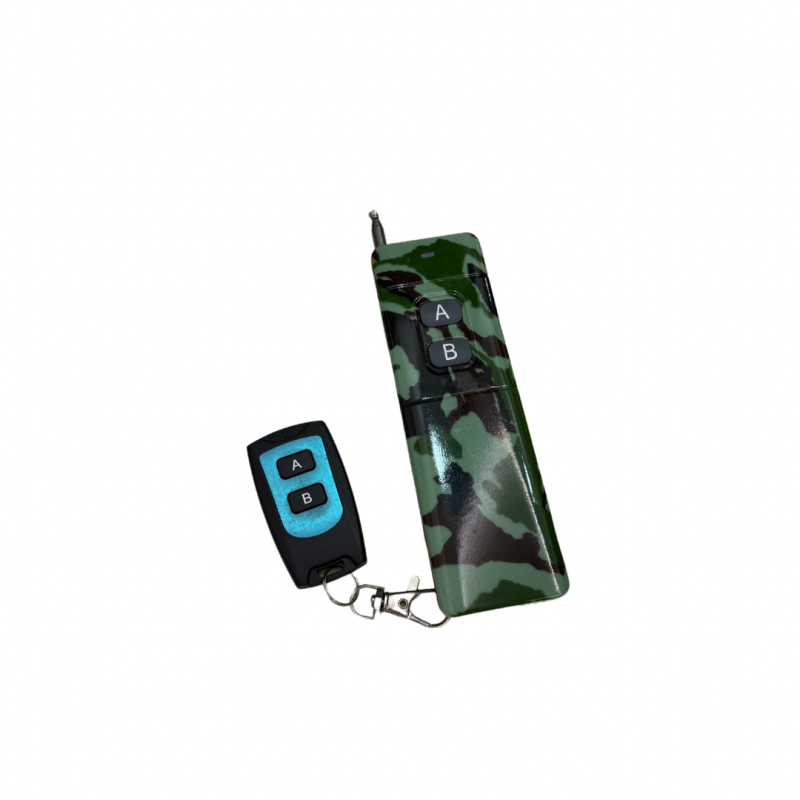

- On/off remote control
- Remote launch panel for remote frequency control
- Battery 35 Ah (also works from car battery)
- GUARD user manual
Additional Options
| Adding 2.4 / 5.8 GHz frequencies | +7 000 UAH |
| Spring antennas (per unit) | +2 900 UAH |
| Additional 30 Ah battery | +15 000 UAH |
Technical Specifications
| Parameter | Value |
|---|---|
| Number of channels | 4 (basic; expandable to 10) |
| Total power | 200 W (4 × 50 W in basic configuration) |
| Single channel power | 50 W (standard) / 60–100 W (LoRa) |
| Operating frequency range | 200–1350 MHz + optional 2.4 / 5.2 / 5.8 GHz |
| Effective operating range | 50–400 m |
| Antenna type | Spring omnidirectional 32×60, 6 dBi (IP68) |
| Number of antennas included | 4 pcs. |
| Mounting | 6 powerful magnetic holders |
| Cooling | Active + passive |
| Protection against failure | Circulator |
| Protection rating | IP68 (relays operate even underwater) |
| Battery | Built-in 35 Ah battery (included) |
| Power supply | 12 V or 24 V (via toggle switch) / car battery |
| Control | Remote launch panel |
| Purpose | Trench / stationary |
Production Time
Manufacturing time: 3–4 weeks in order of queue. If the required modules are in stock — manufacturing takes approximately 14 days.
The «GUARD» 4-channel EW system is a reliable universal solution for protecting trenches and stationary objects from drone threats with extended frequency coverage. The combination of IP68 protection (with relays capable of operating underwater), a circulator, powerful 32×60 6 dBi spring antennas, 6 magnetic holders for quick mounting, a built-in 35 Ah battery, and a remote launch panel makes the system suitable for prolonged missions in challenging field conditions. Applications: protection of positions, strongholds, checkpoints, warehouses, and other stationary objects.
