ANENG 681/683 is a digital multimeter with a wide range of functions. The portable multimeter is equipped with a built-in rechargeable battery, ensuring comfortable use and full autonomy for a long period. This smart device can measure DC/AC voltage, DC/AC current, temperature, live wire, resistance, capacitance, check diodes, NCV induction, and much more. It is also equipped with an automatic power-off function, data retention function, and a flashlight.

This tester is ideal for both laboratory use and home use by radio amateurs. Thanks to its successful package contents (a set of combined test leads, a thermocouple, a USB charging cable, and a storage bag) and compact size, it becomes an indispensable assistant for professionals and beginners.

Features

• Large backlit display and built-in LED flashlight, a very practical solution in low light conditions
• Model 683 has a touchscreen
• Overload protection up to 1000V and 10A
• Automatic shutdown after 15 minutes of inactivity, saves battery charge
• Data retention functions, temperature measurement in Celsius/Fahrenheit
• Audible AC voltage indicator (detector) NCV
• The tester can measure both AC and DC current, as well as its voltage
• Phase or live wire detection, resistance, capacitance, temperature, frequency measurement, as well as diode and continuity tests
• Built-in rechargeable battery eliminates the need for constant battery replacement
• The multimeter can be charged from any charger using a Type-C connector
• Silicone casing is resistant to impacts and drops

Specifications

ANENG 681/683

• Diode measurements: yes
• Count: 6000
• Audible continuity test: yes
• Data hold function: yes
• Low voltage sensor: yes
• NCV function: yes
• Automatic power-off function: yes
• Built-in flashlight: yes
• Power supply: built-in Li-ion battery
• Protection level: CAT III, 1000V
• Dimensions:
  • 681: 150x75x24 mm
  • 683: 152x76x25 mm
• Weight:
  • 681: 222 g
  • 683: 232 g

Technical parameters ANENG 681

Technical parameters ANENG 683

Comparative table of ANENG multimeter models 681/682/683 parameters

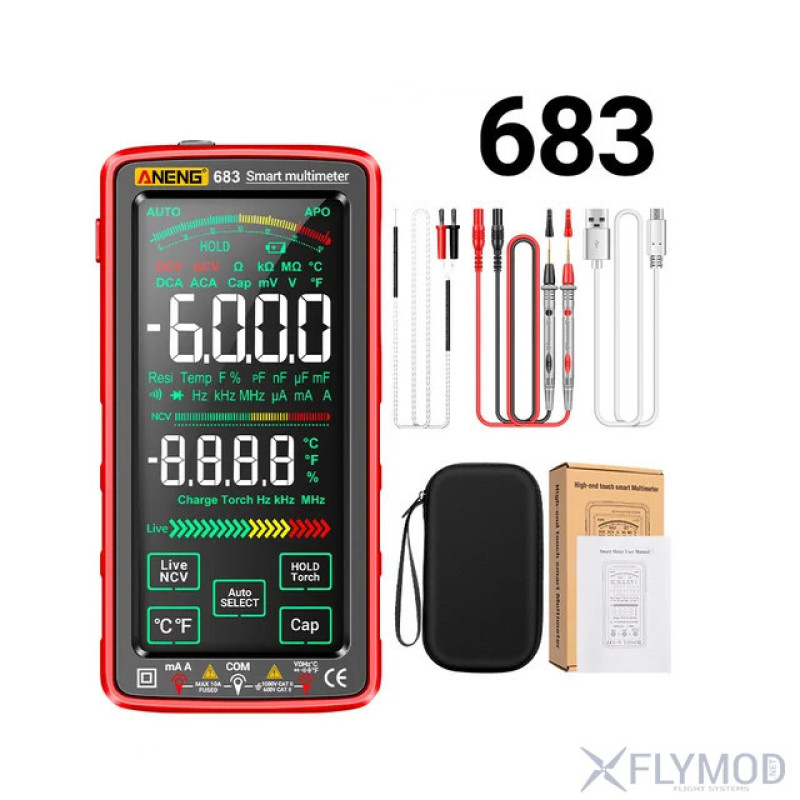

Package contents

• 1x Multimeter
• 1x Thermocouple
• 1x Set of combined test leads
• 1x USB cable
• 1x Manual
• 1x Storage case
