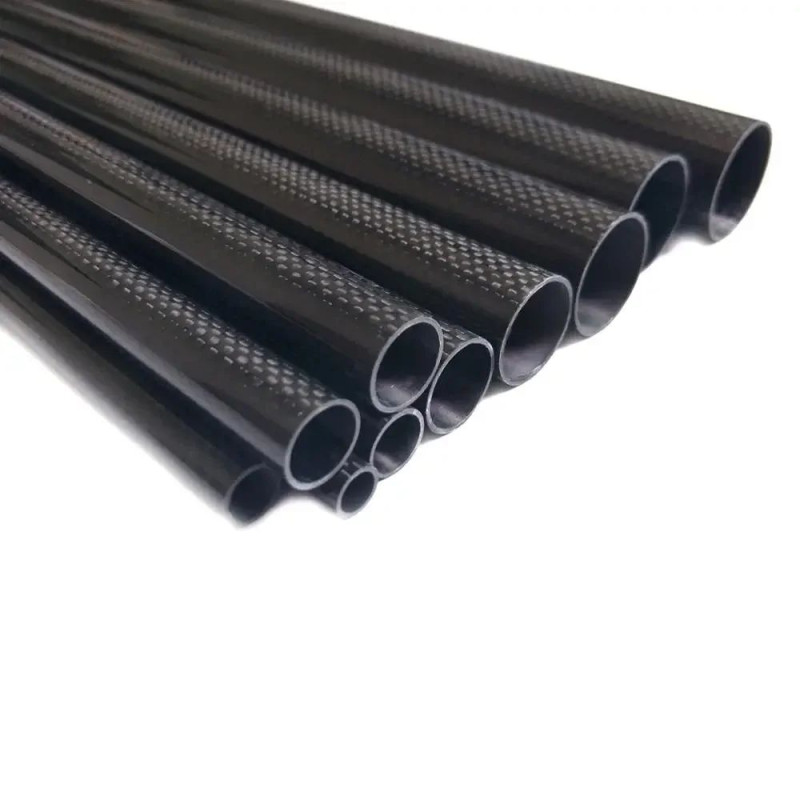

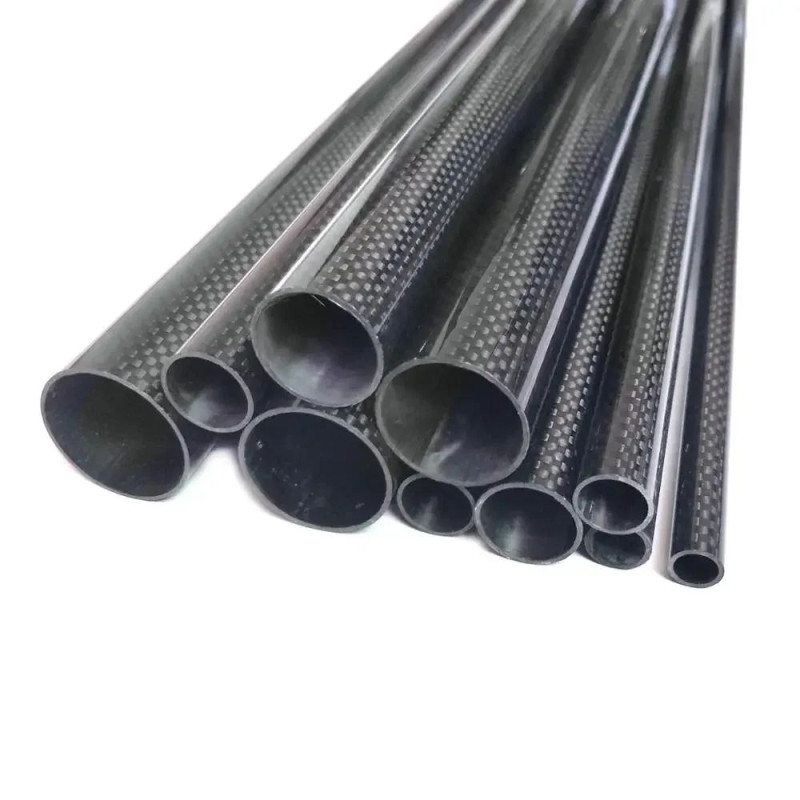

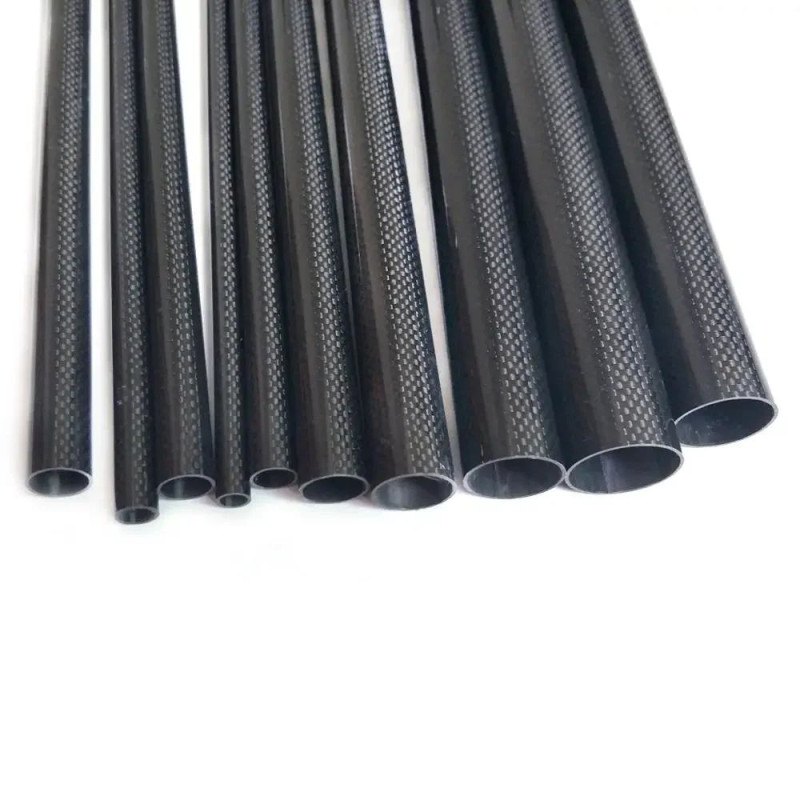

Carbon tube 26x24x1000mm (3K Twill)

The carbon tube is manufactured using a carbon fiber winding method with a special 3K Twill weave, which provides high strength and an aesthetic surface pattern. 3K Twill technology differs from pultrusion in its increased resistance to tearing and bending, so the product demonstrates exceptional mechanical characteristics while remaining lightweight and easy to process.

This tube is designed for use in model making and engineering solutions where high rigidity and low weight are required: UAV (drone) frames, spars, truss elements, struts, stringers, surface edges, and other structural parts. The matte surface provides an elegant look and allows for easy application of glue or protective coatings during assembly.

Specifications:

• Type: Tube
• Section parameters, mm: Outer ∅26, inner ∅24
• Length, mm: 1000
• Weight, g: 120
• Surface: Matte

The product is compatible with typical methods of fastening and joining carbon elements: cutting with a fine-toothed saw or circular saw attachment, final sanding with sandpaper, and fixing with epoxy or cyanoacrylate adhesives. Due to thin walls and high rigidity, it is recommended to use protective sleeves or end caps when mounting in heavily loaded joints.

Advantages: high specific strength with low mass, excellent resistance to mechanical loads and deformations, possibility of precise processing, and ease of integration into complex structures. The 3K Twill material provides a balance between appearance and technical properties, making the tube an optimal choice for prototyping and serial production of lightweight structures.

Manufacturer: China

Category: Drones & Quadcopters > Drone Accessories

This tube is an ideal choice for technically complex projects requiring reliability, precision, and aesthetic design. By ordering the Carbon tube 26x24x1000mm (3K Twill), you get a material that will facilitate assembly, increase joint rigidity, and allow you to reduce the overall mass of the device without losing strength.

Other recommendations for use: before gluing, try to clean surfaces from dust and degrease; if necessary, use reinforcing inserts in places where fastening screws are attached; when manufacturing aerodynamic elements, consider the direction of the weave to avoid local stress concentrations.
