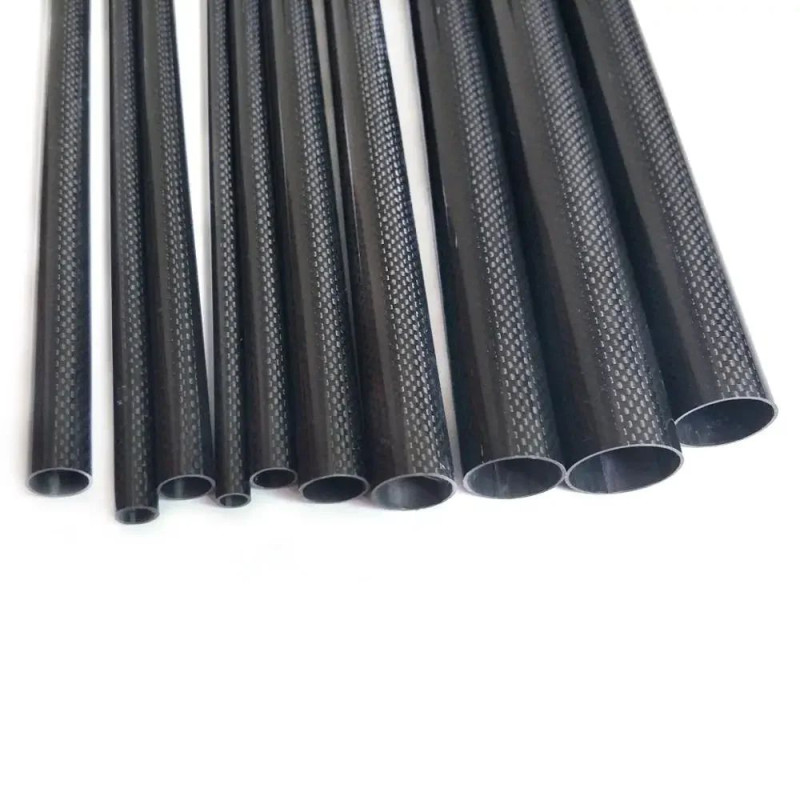

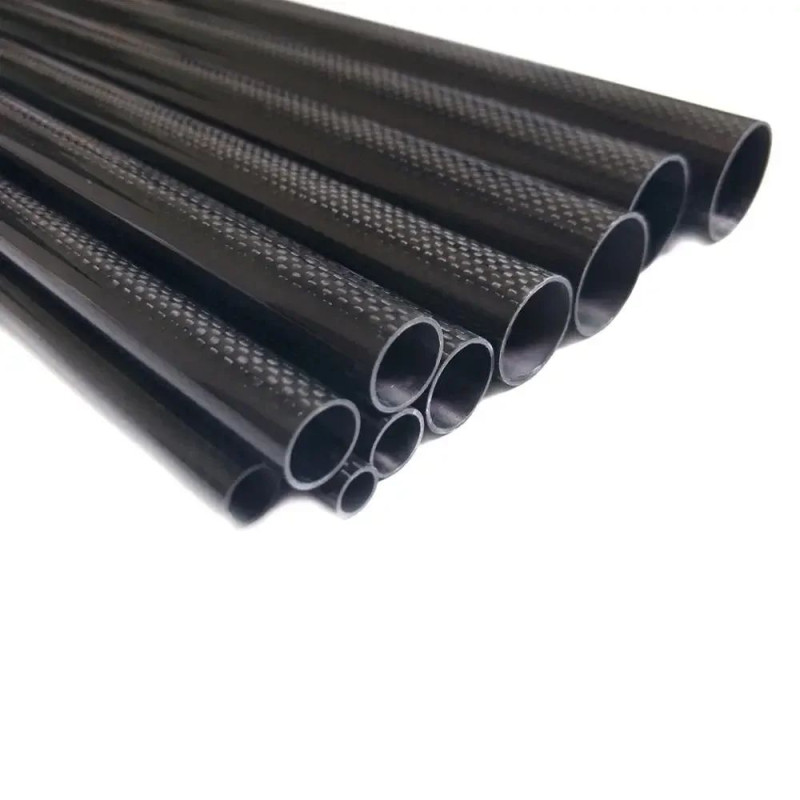

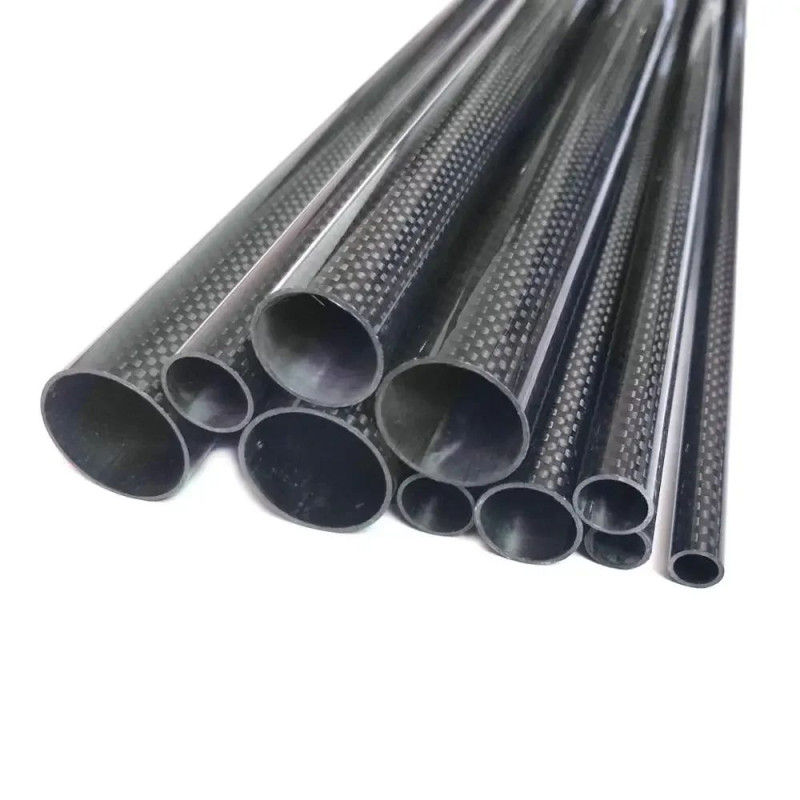

Carbon tube 22x20x1000mm (3K Twill)

Introducing the 3K Twill carbon tube with an outer diameter of ∅22 mm and an inner diameter of ∅20 mm, 1000 mm in length, manufactured in China. This tube is made from high-strength carbon fiber with a 3K Twill weave, providing an attractive matte finish and characteristic fabric texture. The material combines high rigidity and low weight, making the product ideal for use in RC aircraft modeling, drones, quadcopters, and other high-tech structures.

The carbon tube features excellent resistance to bending and pressure, is easy to machine, and bonds well with various types of adhesives, including epoxy resins and cyanoacrylate glues. This minimizes assembly and modification efforts, while maintaining high joint strength.

Application: Carbon tubes are widely used in modeling and industrial solutions for creating spars, truss elements, struts, stringers, and surface edges. They enable the creation of lightweight and rigid structures, often surpassing some grades of high-strength steel in strength performance at a significantly lower mass.

Product characteristics:

• Type: Tube
• Material: Carbon fiber reinforced polymer (carbon fiber), 3K Twill weave
• Outer diameter: ∅22 mm
• Inner diameter: ∅20 mm
• Length: 1000 mm
• Weight: 98 g
• Surface: Matte
• Country of manufacture / brand: China
• Area of application: modeling, drones and quadcopters, structures with increased strength and weight requirements

Carbon fiber reinforced polymers are composite materials based on carbon fiber, combining high specific strength and rigidity with low weight. In many designs, the use of carbon allows for a reduction in the overall mass of the product without losing strength characteristics, which is especially important for aircraft, sports equipment, and precision mechanisms. The Carbon tube 22x20x1000mm (3K Twill) will be a reliable element in your projects where precise dimensions, geometric stability, and durability are important.

When choosing, consider that the tube is easy to glue and cut, but appropriate protective measures should be applied when processing carbon fiber reinforced polymers: use a protective mask and gloves, avoid inhaling dust when sanding.
