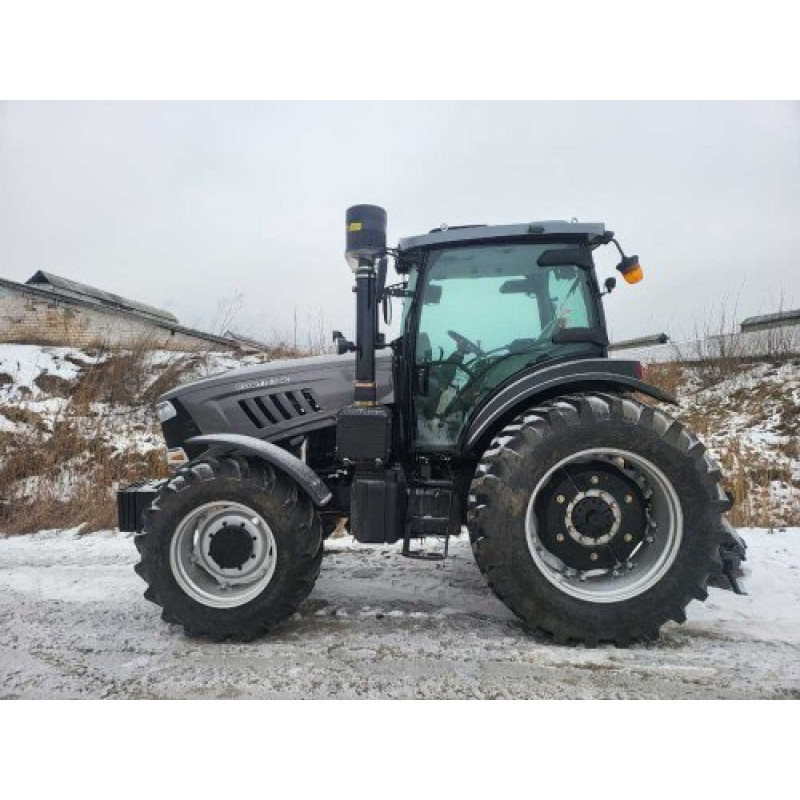

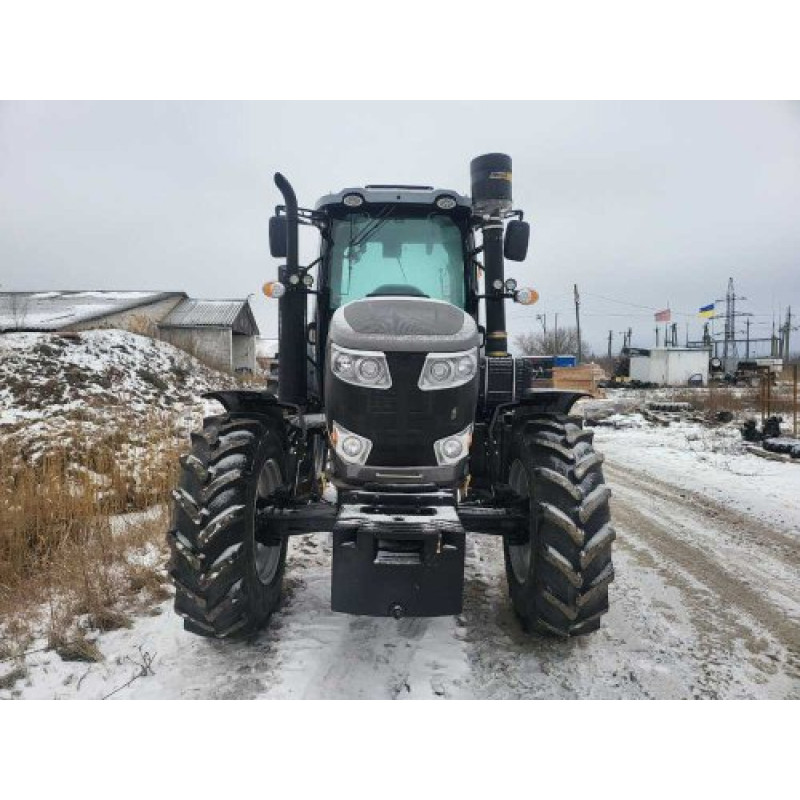

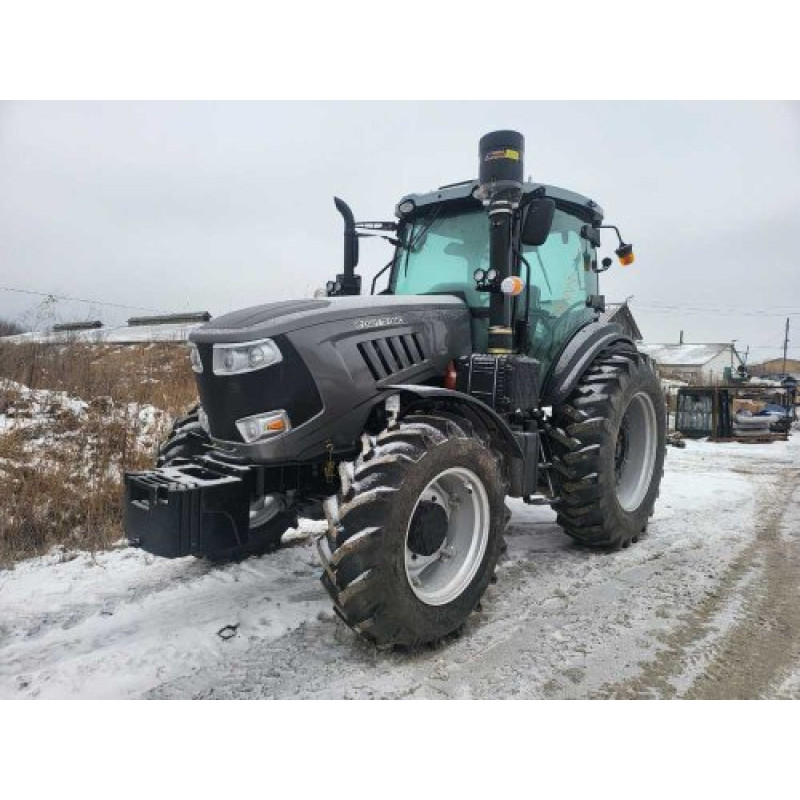

Tractor SKAUT TD-1304C — a powerful all-rounder for big tasks

Brand: Skaut. Product type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. The SKAUT TD-1304C model combines high power, reliability, and survivability in challenging field conditions, during transportation, and when performing loading and unloading operations. This is a 4x4 all-wheel-drive tractor with a YTO LR6M5 4-stroke diesel engine, ensuring stable operation under intense loads.

The SKAUT TD-1304C is equipped with a 130 hp (95.6 kW) engine with a displacement of 7700 cm3 and six vertically arranged cylinders. The starting system is an electric starter, and the cooling system is liquid, closed with forced circulation of coolant. The nominal traction force is 28.7 kN, which, combined with all-wheel drive, ensures confident movement across fields and operation with heavy trailed and mounted implements.

The transmission's technical base includes a 24+8 speed gearbox with a direct main drive, a dry dual-disc clutch, and hydraulic power steering. The brakes are located on the secondary shaft of the gearbox and are designed as brake drums. A rear differential lock is provided to improve off-road capability.

The hydraulic system is built on gear pumps (NSH) — separate pumps for implement drive and for power steering operation. The number of hydraulic outlets is 6; the lifting capacity of mounted equipment reaches 4500 kg, allowing for a wide range of mounted implements. The power take-off (PTO) shaft is rear, splined, with speeds of 540/1000 rpm.

The chassis and wheels are adapted for field use: adjustable front wheel track 1750-1990 mm and rear 1750-2120 mm, tire size front 14.9-26 and rear 18.4-38. The tractor's ground clearance of 480 mm allows for work on uneven terrain. The machine's dimensions are 4850x2450x3100 mm, and its curb weight is 5200 kg. Additional equipment includes a compressor, air conditioner, and a trailer connector (socket).

Key advantages of the model:

• High power of 130 hp and engine displacement of 7700 cm3 for heavy and prolonged work;
• 4x4 all-wheel drive and nominal traction force of 28.7 kN for improved off-road capability;
• Reliable 24+8 transmission and dry dual-disc clutch for precise load control;
• Powerful hydraulics with a lifting capacity of 4500 kg and six hydraulic outlets for a wide range of implements;
• Comfort and additional options: air conditioner, compressor, and trailer socket.

The SKAUT TD-1304C is ideal for large farms, municipal services, and industrial use where high traction, reliability, and durability of components are required. The model is designed for intensive operation with heavy mounted and trailed implements, ensuring efficiency and stability in operation.

Technical specifications:
