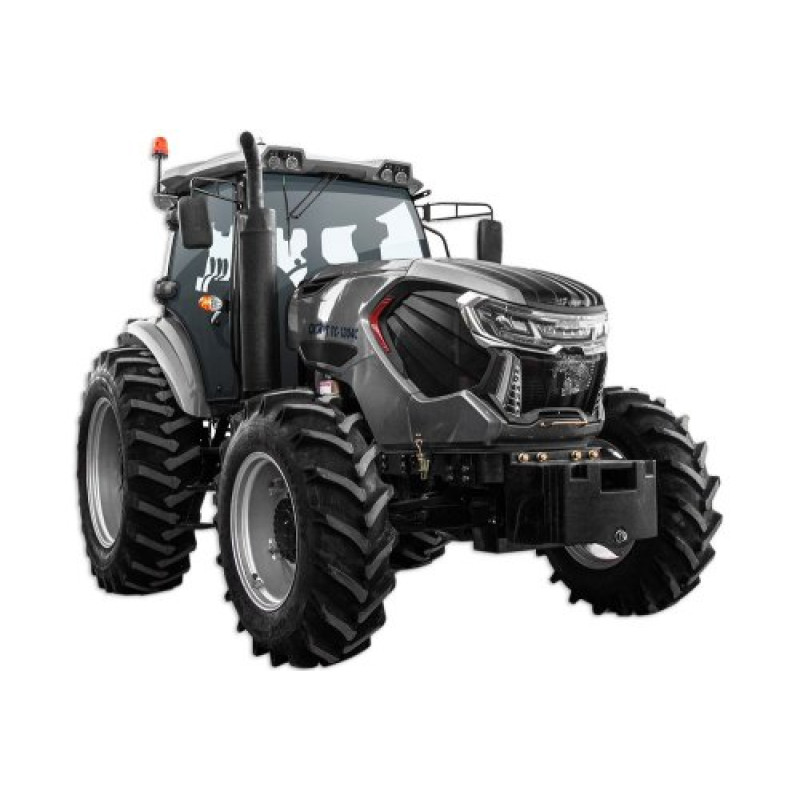

SKAUT TC-1804C Tractor — A Powerful All-Rounder for Agricultural and Commercial Use
The SKAUT TC-1804C from manufacturer Skaut is a 4x4 mototractor designed for heavy field, utility, and transport tasks. The model combines a large-volume diesel engine, reliable transmission, and modern hydraulics, making it efficient for plowing, cultivating, sowing, towing, and working with mounted equipment.
Advantages of this model include high power and productivity, a robust 4x4 wheel formula for improved traction, high ground clearance, and significant lifting capacity for mounted equipment, allowing it to work with heavy implements even in challenging soil conditions.
Technical Specifications:
| Engine power, hp (kW) | 180 (132.3) | ||
| Wheel formula | 4x4 | ||
| Engine type | diesel, 4-stroke, SC7H180G3 | ||
| Number and arrangement of cylinders | 6, vertical | ||
| Engine start system | electric starter | ||
| Cooling system | liquid, closed, with forced circulation of coolant | ||
| Engine displacement, cm3 | 7700 | ||
| Gearbox (КП) | 24+8 | ||
| Rear differential lock | + | ||
| Clutch | dry 2-disc, constantly closed type | ||
| Final drive | direct | ||
| Steering | hydraulic | ||
| Brakes | on rear wheels, disc, with mechanical drive, dual pedals | ||
| Power take-off (PTO) | rear, splined | ||
| Hydraulic system pump type | gear pump for hitch drive / gear pump for power steering operation | ||
| Mounted equipment lifting capacity | 4500 kg | ||
| Power take-off (PTO) speed, rpm | 540/1000 | ||
| Tire size | front 14.9-26, rear 18.4-38 | ||
| Wheel track | front 1955, rear 2015 | ||
| Ground clearance, mm | 420 | ||
| Number of hydraulic outlets | 6 | ||
| Trailer connector (socket) | + | ||
| Compressor | + | Air conditioner | + |
| Dimensions LxWxH mm | 4990x2460x3120 | ||
| Curb weight, kg | 5200 |
The SC7H180G3 engine with a displacement of 7700 cm3 and a power of 180 hp (132.3 kW) provides ample traction for working with trailers and heavy mounted equipment. The liquid cooling system with forced circulation ensures stable operation during prolonged use, and the electric starter provides easy and reliable starting.
The 24+8 transmission, combined with a rear differential lock and a dry dual-disc clutch, ensures smooth and efficient power transfer. The direct final drive increases drive efficiency, and hydraulic steering makes maneuvering easier even under load.
The hydraulic complex consists of gear pumps for hitch drive and power steering operation, has 6 hydraulic outlets, and a mounted equipment lifting capacity of 4500 kg — sufficient for a wide range of tools and implements. The rear splined PTO with speeds of 540/1000 rpm is compatible with most modern mechanisms.
The model is equipped with disc brakes on the rear wheels with mechanical drive and dual pedals for safe maneuvering. The presence of a trailer socket, compressor, and air conditioner enhances versatility and operator comfort.
Large tires (front 14.9-26, rear 18.4-38), a front track of 1955 mm and a rear track of 2015 mm, and a ground clearance of 420 mm allow for confident movement over rough terrain and cultivation of heavy soils. Dimensions of 4990x2460x3120 mm and a curb weight of 5200 kg give this model stability and balance under heavy loads.
The SKAUT TC-1804C is the choice for farms and enterprises that require a versatile, reliable, and productive mototractor for industrial and agricultural operation.
