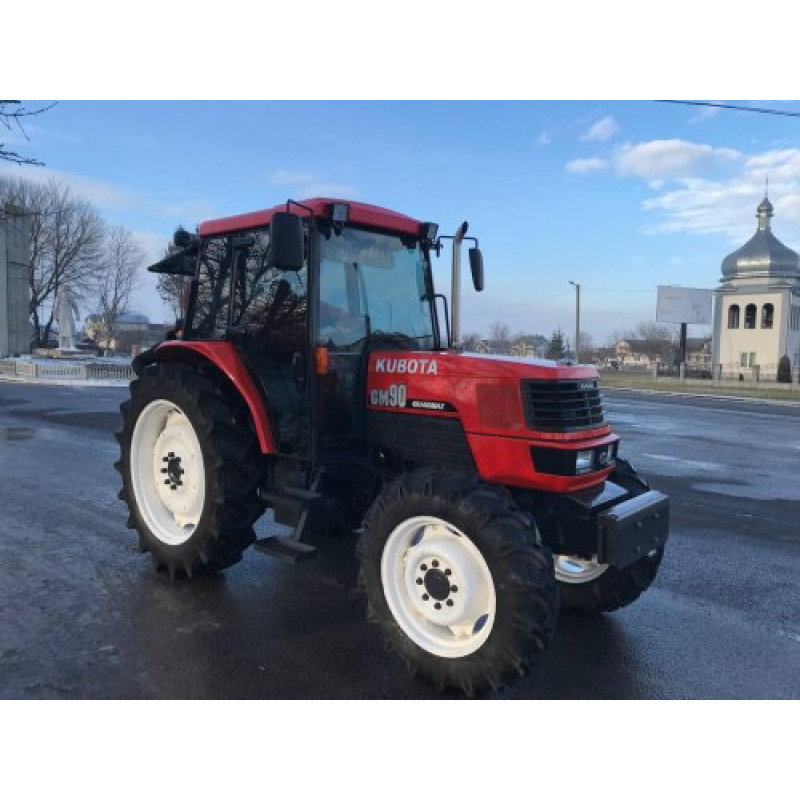

KUBOTA GM90 Tractor — a reliable all-rounder for heavy-duty work

The KUBOTA GM90 model from Kubota combines high power, durability, and operational versatility. This 89 hp (65.5 kW) class mini-tractor is designed for a wide range of agricultural, municipal, and construction tasks: tillage, sowing, harvesting, towing, and working with mounted and trailed equipment.

The heart of the machine is a V3300T 4-stroke diesel engine with a displacement of 3300 cm3 and four vertical cylinders. The starting system is an electric starter, and the cooling system is liquid, closed with forced circulation, ensuring stable operation under intense loads and in challenging climatic conditions.

Advantages of KUBOTA GM90

• High engine power: 89 hp (65.5 kW) for efficient work in the field and on the road;
• Reliable transmission with a 12+12 gearbox, providing a wide range of speeds and maneuverability;
• 4x4 wheel formula and rear differential lock for increased off-road capability;
• Dry single-disc clutch of continuously closed type for reliable torque transmission;
• Hydraulic control with a gear pump (NSh) for implement drive and a separate NSh for power steering operation;
• Rear, splined power take-off (PTO) shaft with 540/1000 rpm modes for connecting various mounted equipment;
• Effective brakes on the secondary gearbox shaft with brake drums for safe braking under load.

The transmission design includes a direct main drive, which increases reliability during heavy traction work. Tires and ground clearance provide the necessary stability and passability: front tires 11.2-24, rear — 13.6-38, ground clearance is 480 mm, allowing confident work on uneven terrain and between rows. The adjustable front wheel track within 1200-1390 mm and rear 1210-1390 mm adds flexibility when adapting to various agricultural tasks.

Tractor dimensions: 3980x1780x2570 mm, curb weight — 2870 kg, making the KUBOTA GM90 optimal for medium and heavy-duty work, as well as for equipping with front loaders and other additional equipment.

Category: Tractors > Mini-tractors. Brand: Kubota. The model is ideal for farms, agricultural enterprises, municipal services, and construction, where economy, reliability, and versatility are important.

Technical specifications

Technical specifications:

This technical package makes the KUBOTA GM90 an excellent choice for those seeking a balance between power, economy, and durability. If you plan intensive operation with mounted or trailed equipment — the GM90 will demonstrate stable results in various conditions. For assistance with configuration, options, and additional equipment, please contact our specialists.
