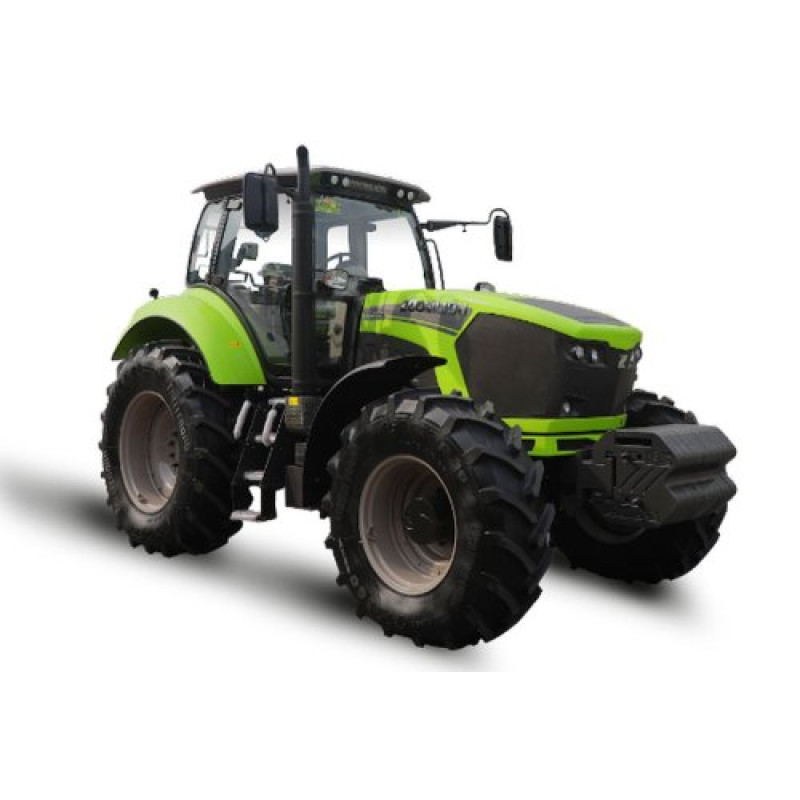

Zoomlion PL2304 Tractor

Introducing the powerful and reliable Zoomlion PL2304 tractor from the manufacturer Zoomlion. This model is designed for intensive agricultural use: plowing, soil cultivation, sowing, cargo transportation, and working with large trailed and mounted equipment. The PL2304 combines high productivity, fuel efficiency, and a comfortable cabin for long work shifts. The tractor belongs to the "Tractors" category and "Mini Tractors" subcategory, meeting the demands of farmers and agricultural enterprises.

Below are the full technical specifications and equipment of this tractor — the table compiles all key parameters of the engine, transmission, hydraulic system, chassis, and cabin.

Engine. The unit is based on a 6-cylinder WEICHAI engine with water cooling and a pre-start heater, ensuring reliable starting at low temperatures and stable operation under heavy loads. The nominal power is 230 hp (169.5 kW), with a displacement of 7.5 L — sufficient to provide high torque for heavy field operations.

Transmission and Hydraulics. The hydraulic clutch combined with the 40+40 transmission allows precise speed selection for field and transport work. The separate hydraulic system with 4 pairs of hydraulic outlets and a gear pump driven by the engine has a capacity of 110 L/min, guaranteeing efficient operation of a wide range of mounted equipment. The PTO with 540/1000 rpm modes enables connection of various implements and devices.

Chassis and Maneuverability. The front and rear wheel track of 2060/2450 mm, ground clearance of 430 mm, and turning radius of 6.8 m ensure good cross-country capability and sufficient maneuverability in fields and on roads. Tire sizes 540/85R30 at the front and 650/65R42 at the rear are optimized for power transfer to the soil and reduced compaction. Hydraulic rear differential lock and independent hydraulic steering enhance off-road capabilities in challenging conditions.

Cabin Comfort and Safety. The spacious cabin is equipped with air conditioning, cabin filters, a heater, MP3 radio, a 12V socket, a sun visor, a comfortable seat, and a thick solid sound-insulating mat. It also features a fire extinguisher bracket, interior trim, a drawbar, and a towing hitch for practical tasks. Hydraulic disc brakes provide reliable braking.

Advantages of Zoomlion PL2304

• High engine power of 230 hp for heavy field work.
• Reliable 6-cylinder WEICHAI engine with pre-start heater for easy starting in cold weather.
• Wide range of 40+40 transmission gears allows fine-tuning of work speed.
• Efficient separate hydraulic system with 110 L/min capacity and 4 pairs of hydraulic outlets for connecting complex mounted mechanisms.
• Comfortable and well-equipped cabin for long work shifts.
• Large 400 L fuel tank for long-term work without frequent refueling.

Dimensions and Weight. The tractor's dimensions are 5715x2610x3200 mm with a wheelbase of 3085 mm and a curb weight of 8575 kg, making the PL2304 a stable and reliable base for heavy implements. Front counterweights of 25x45 kg allow adjusting the machine's balance for different mounted equipment.

The Zoomlion PL2304 model is a solution for farmers and enterprises requiring powerful, reliable, and comfortable machinery with a wide range of technical capabilities and useful options. The tractor is ideal for large farms where productivity, durability, and versatility of application are important.
