Product Code: FA101-81265-101
In Stock
279 000 грн.
Buy this product in 1 click:
Main specifications
Bore/stroke:
85 / 90
Brakes:
drum mechanical
Clutch coupling:
2-disc, dry
Cooling System:
liquid forced
Cooling system fan drive:
V-belt drive
All specifications
We will deliver this product:
Payment
Description
All JINMA tractors come with a 2-year warranty.
Specifications
Bore/stroke
85 / 90
Brakes
drum mechanical
Clutch coupling
2-disc, dry
Cooling System
liquid forced
Cooling system fan drive
V-belt drive

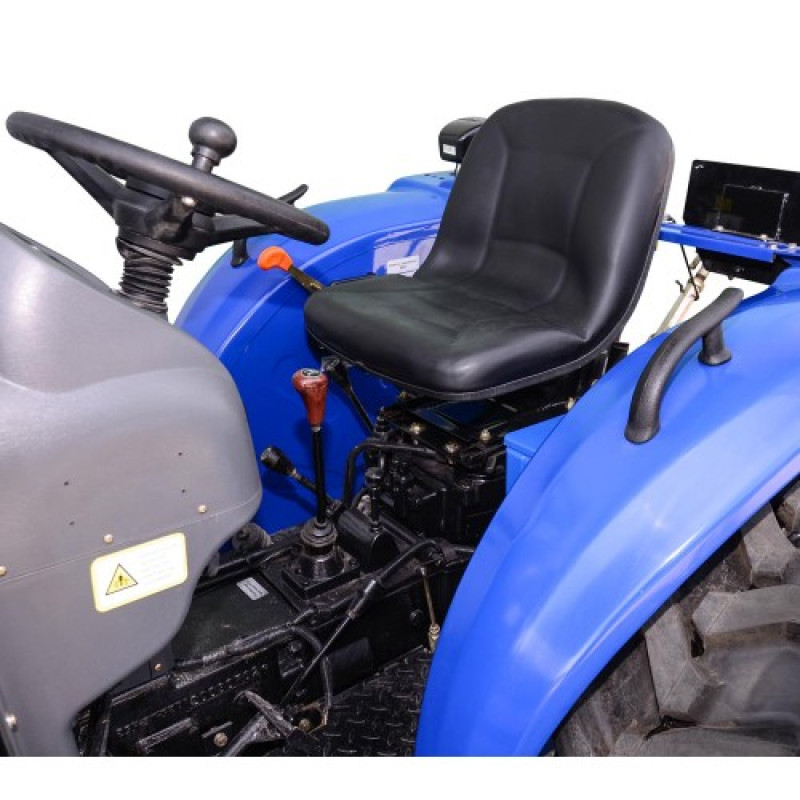

Driver's Seat
adjustable
Engine cooling system capacity, L
10
Engine displacement, cm³
1532
Engine model
YD 385T
Engine oil capacity, L
6.6
Engine oil type
mineral or semi-synthetic
for diesel engines
Engine type
diesel
Front axle crankcase volume, L
6
Front axle lubricant type
Silver SAE 85W-90; Gold SAE 80W-90;
Platinum SAE 75W-90 (transmission)
Front tire size
6.50-16
Front track, mm
1100
Fuel tank capacity, L
30
Gearbox
(4x2)+(4x2)
Gearbox and rear axle crankcase volume, L
14

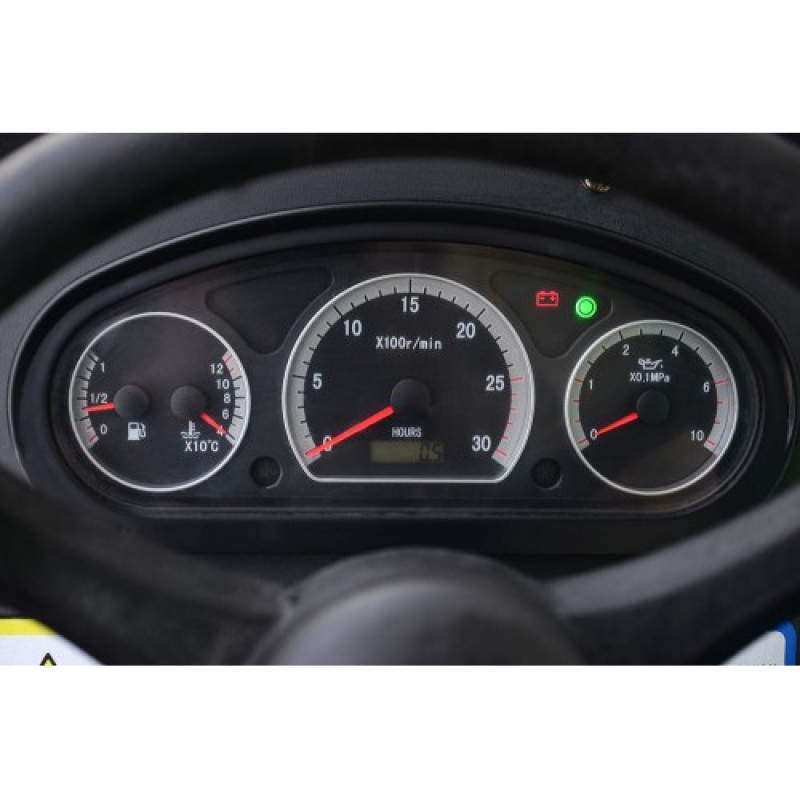

Hour Meter
digital
Hydraulic pump type
gear-driven
Launch System
electric starter, with safe start
Loaded weight, kg
1350
Main Gear
direct

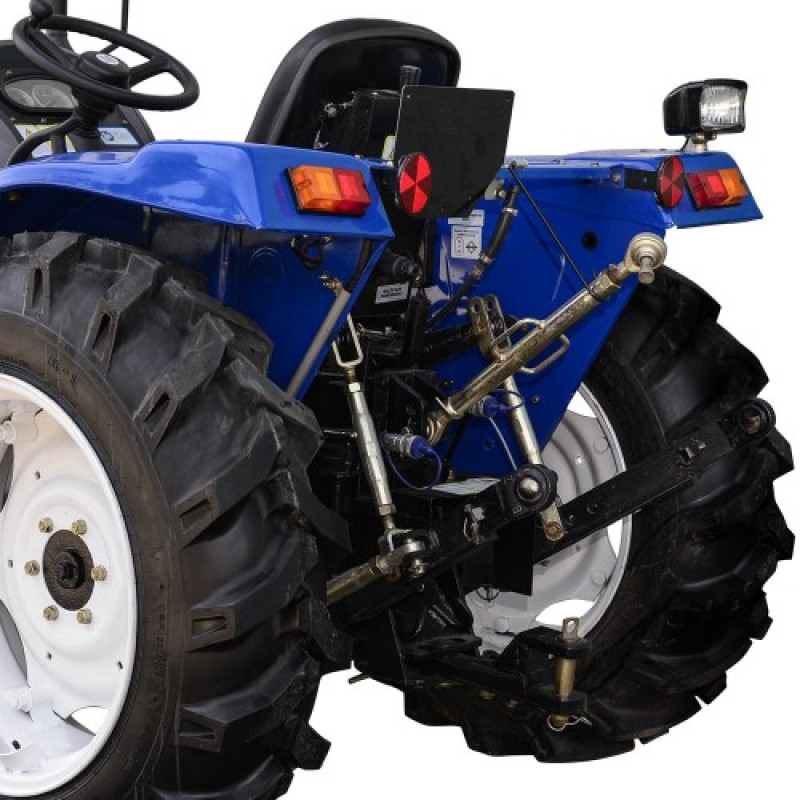

Maximum payload capacity of the attachment mechanism, kg
420
Minimum clearance, mm
300
Minimum turning radius with brakes, m
2.8±0.2
Minimum turning radius without brakes, m
3.0±0.2
Nominal engine crankshaft speed, rpm
2350
Nominal engine oil consumption, g/kWh
2.04
Nominal pulling force, kN
6.6
Number and arrangement of cylinders
3, vertical
Number of Hydration Ports
2 (1 pressure, 1 drain)
Overall dimensions (L x W x H), mm
3150 x 1500 x 1900
Power Steering Pump
UP
Power Take-Off (PTO)
rear longitudinal
Power take-off (PTO) shaft speed, rpm
540 / 1000
Rated engine power, hp (kW)
24 (17.6)
Rear axle differential lock
+
Rear Tire Size
11.20-24
Rear track, mm
1120–1340
Theoretical forward speed, km/h
1.82-27.78
Theoretical reverse speed, km/h
1.76-26.75
Trailer Socket
1
Type of oil in gearbox and rear axle
TAP 15
Wheel formula
4x4
Wheelbase, mm
1700
