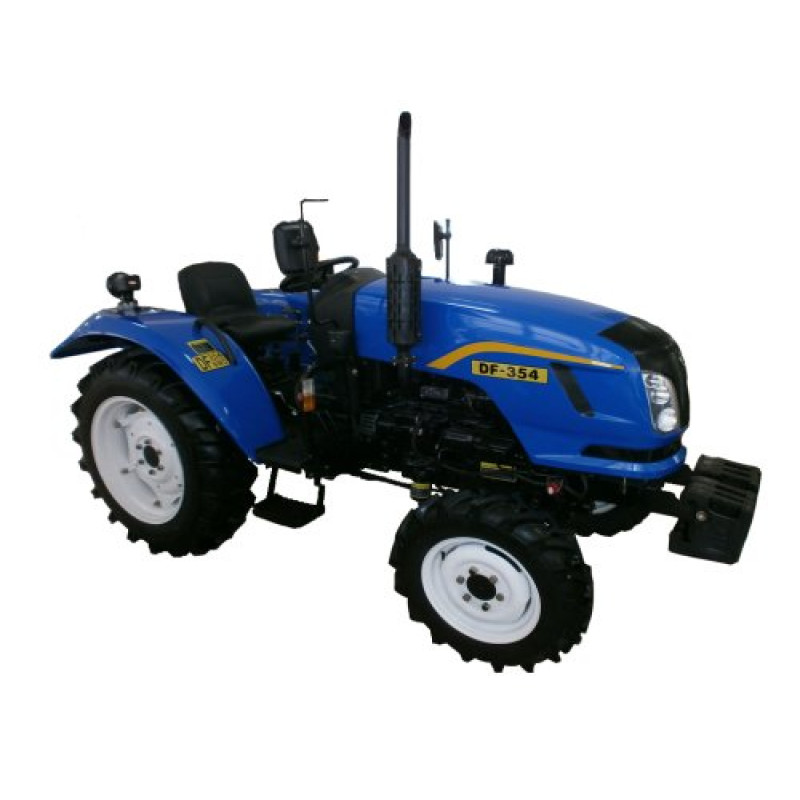

DONGFENG 354 Tractor — Buy DongFeng DF-354 Mini Tractor

Introducing the practical and reliable mini tractor DongFeng DF-354 from the DongFeng brand. This compact tractor is designed for use in private households, on farms, in municipal services, and on construction sites. Thanks to its three-point hitch system and the ability to connect towed equipment, the DF-354 easily handles mowing, area cleaning, cargo transportation, and other tasks where maneuverability and off-road capability are important.

Engine and Chassis: The model is equipped with a three-cylinder TY395 diesel engine with a power output of 35 hp (25.7 kW), forced liquid cooling, and direct injection. The engine's displacement is 2231.65 cm³; cylinder bore and piston stroke are 95 × 105 mm; nominal crankshaft speed is 2400 rpm. Nominal fuel consumption is ≤ 251.6 g/kWh, nominal oil consumption is ≤ 2.04 g/kWh. Starting is provided by an electric starter with safe start, ensuring reliable ignition in various conditions.

Transmission and Drives: The mechanical gearbox in a (4 + 1) × 2 configuration allows working with various loads; permanent 4 × 4 all-wheel drive enhances off-road capability. A dry dual-disc clutch, rear differential lock, and power steering ensure comfortable and safe operation. The cooling fan is driven by a V-belt, and the brakes are of the drum type.

Hydraulics and PTO: The power take-off (PTO) operates at 540/1000 rpm. The hydraulic system with a gear pump allows lifting mounted equipment with a maximum lifting capacity of 580 kg, enabling the connection of a wide range of implements and performing heavy operations.

Wheels, Running Parameters, and Dimensions: Wheel formula 4 × 4, minimum ground clearance — 358 mm. Wheelbase — 1739 mm. Rear wheel track is adjustable: 1100 mm (base), 1200, 1300, 1400 mm; front — 1200 mm. Tire size: rear 11.2 × 24, front 6.5 × 16. Minimum turning radius with one-sided brake — 2.8 m. Theoretical travel speed: forward 1.75 - 30.68 km/h, reverse 2.26 - 11.70 km/h. Overall dimensions (L × W × H) — 3370 × 1500 × 1620 mm; structural weight — 1385 kg.

Fluids and Volumes: Fuel tank capacity — 28 L; engine crankcase volume — 4.5 L; gearbox and rear axle crankcase volume — 25 L; front axle crankcase volume — 6.6 L; engine cooling system volume — 8.2 L. Recommended engine oil — mineral or semi-synthetic for diesel engines; in gearbox and rear axle — mineral; in front axle — transmission oil.

Comfort and Design: In its basic configuration, this model comes without a cabin but features a soft seat for comfortable operator work. Metal frames over the wheels protect against dirt, and the rounded hood provides a good view of the field or area, enhancing safety during operation.

Advantages and Operation: The DongFeng DF-354 combines an economical diesel engine, simple design, and high traction characteristics: nominal traction force 7.23 kN. The presence of power steering, differential lock, and large wheels with an aggressive tread ensure stability and confident handling on various terrains. With regular maintenance, this mini tractor will serve for a long time and be a reliable assistant for private or farm households.

Recommended Analogues and Related Models:

• Jinma 404
• Shifeng 354
• Dongfeng
• Xingtai
• Foton
• Zoomlion
• DTZ 5244
• Bulat 454, Bulat 250, Bulat 254
• Belarus 320.4
• Shifeng 350 L
• DW 244
• DTZ 5404K
• Solis 26 Tractor, Solis 50
• Shifeng SF-244

Technical Specifications:

With timely care and regular maintenance, the DongFeng DF-354 will be a durable and efficient tool in your household. If you are looking for an affordably priced mini tractor with good features and practical characteristics, this model deserves your attention. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.
