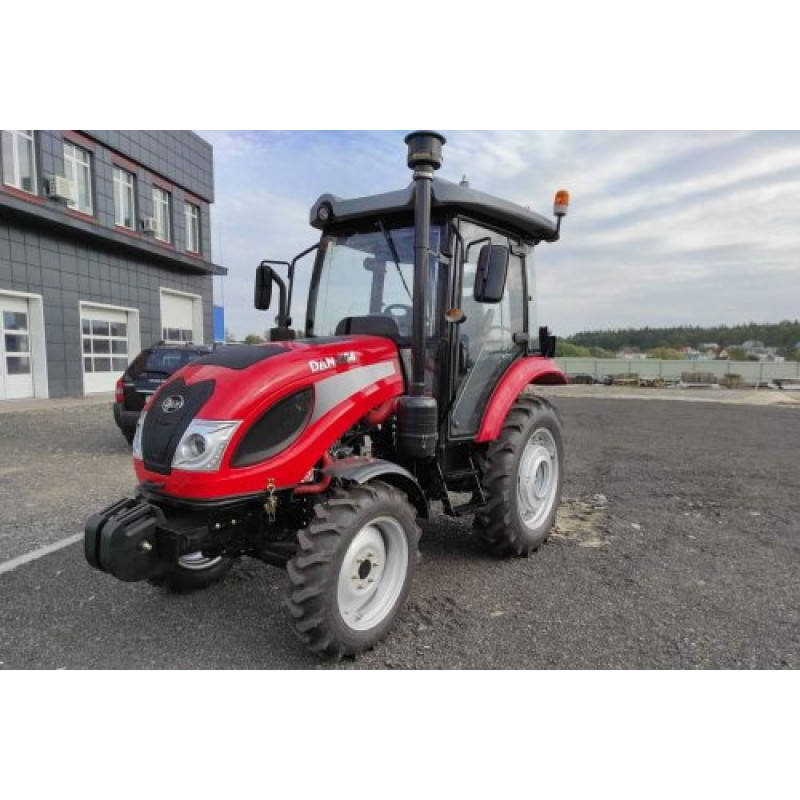

DAN 504 Tractor — Reliable 50-hp Mototractor from DAN
The DAN 504 tractor from DAN is a representative of the Tractors > Mototractors category, designed for intensive work in fields, garden plots, and for various household tasks. The model is equipped with a powerful 4-cylinder diesel engine with a displacement of 3.26 L, developing 50 hp (36.8 kW), and combines a reliable transmission, an efficient hydraulic system, and a comfortable sealed cabin with filters and cabin heating.
Technical specifications:
| Engine type | 4-cylinder diesel engine |
| Engine power, hp (kW) | 50 (36.8) |
| Engine displacement, L | 3.26 |
| Rated engine crankshaft speed, rpm | 2400 |
| Air cleaning system | External filter with oil bath |
| Clutch | Dual-disc |
| Transmission | Mechanical, 12+4 |
| Speed range forward / reverse, km/h | 2.6-32.48 / 3.98-11.22 |
| Hydraulic system: type / number of hydraulic outlets | Combined / 2 pairs |
| Hydraulic pump type | Gear pump driven by engine |
| PTO: power, kW | 29.5 |
| PTO: speed, rpm | 540/1000 (6-spline shafts) |
| Hitch lifting capacity, kg | 830 |
| Rear differential lock | Mechanical |
| Front / rear wheel track, mm | 1300/1300-1600 |
| Steering | Hydraulic, independent |
| Front / rear tire size, inch | 8.3-20 / 13.6-28 |
| Turning radius, m | 4.2 |
| Ground clearance, mm | 300 |
| Overall dimensions: LxWxH, mm | 3850x1750x2650 |
| Wheelbase, mm | 2000 |
| Curb weight, kg | 2250 |
| Brakes | Disc, in oil bath, with hydraulic drive |
| Fuel tank capacity, L | 50 |
| Cabin equipment | Sealed cabin with filters, cabin heater, fire extinguisher stand, toolbox for tools and accessories |
Key advantages of DAN 504 at a glance
- Powerful 4-cylinder diesel engine (3.26 L / 50 hp / 36.8 kW) provides high traction reserve for working with various attachments.
- Reliable mechanical 12+4 transmission and wide speed range (forward 2.6–32.48 km/h, reverse 3.98–11.22 km/h) allow precise speed selection for tasks.
- Efficient hydraulic system with combined type and two pairs of hydraulic outlets, gear pump driven by engine, and 29.5 kW PTO (540/1000 rpm) — for operating heavy attachments.
- Hitch lifting capacity of 830 kg and mechanical rear differential lock increase productivity in difficult soil conditions.
- Operator comfort and safety: sealed cabin with filters, cabin heater, fire extinguisher space, and toolbox.
- Disc brakes in an oil bath with hydraulic drive ensure reliable braking and system durability.
The tractor's overall dimensions of 3850x1750x2650 mm, ground clearance of 300 mm, wheelbase of 2000 mm, and turning radius of 4.2 m make the DAN 504 maneuverable in various areas. A curb weight of 2250 kg and a fuel tank capacity of 50 L guarantee long operation without frequent refueling. Tire sizes 8.3-20 (front) and 13.6-28 (rear) along with an adjustable track of 1300/1300-1600 mm provide versatility for adapting to different soil types.
The DAN 504 is a successful combination of power, reliability, and comfort for agricultural work and private farming. The manufacturer DAN has provided all necessary technical parameters and equipment for efficient and safe operation.
