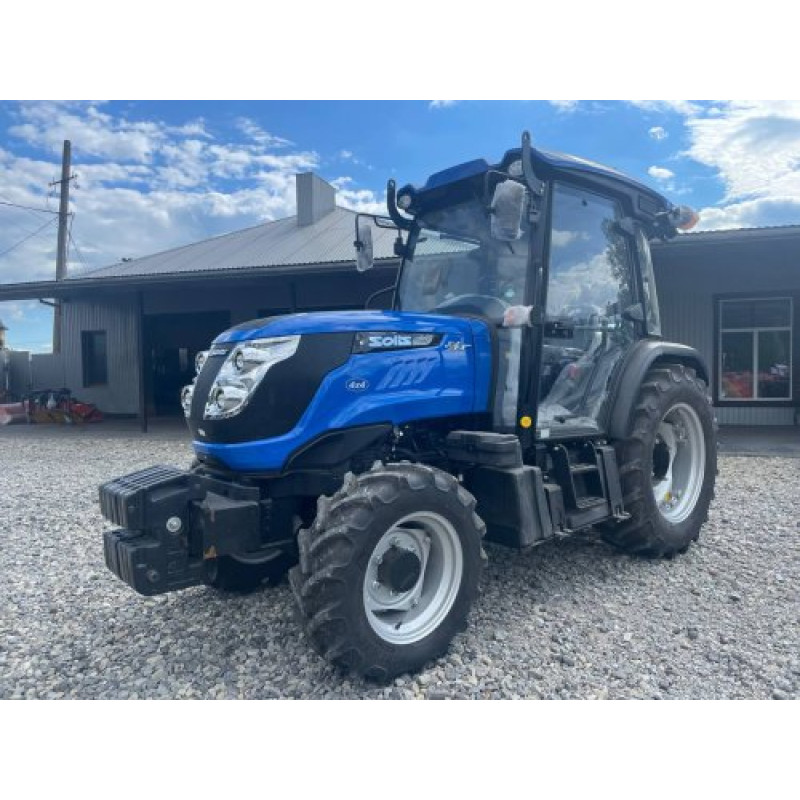

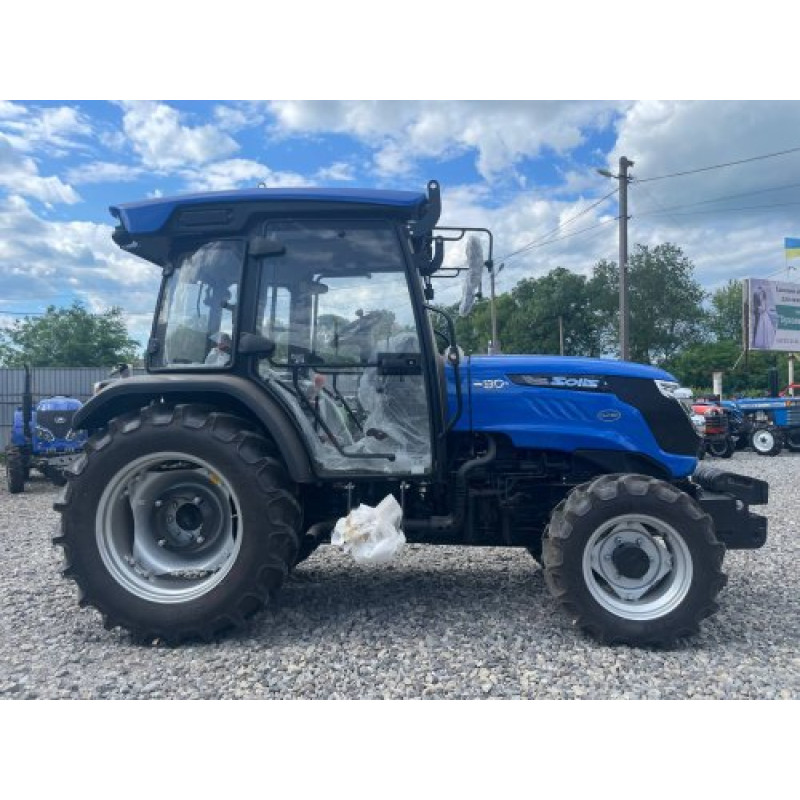

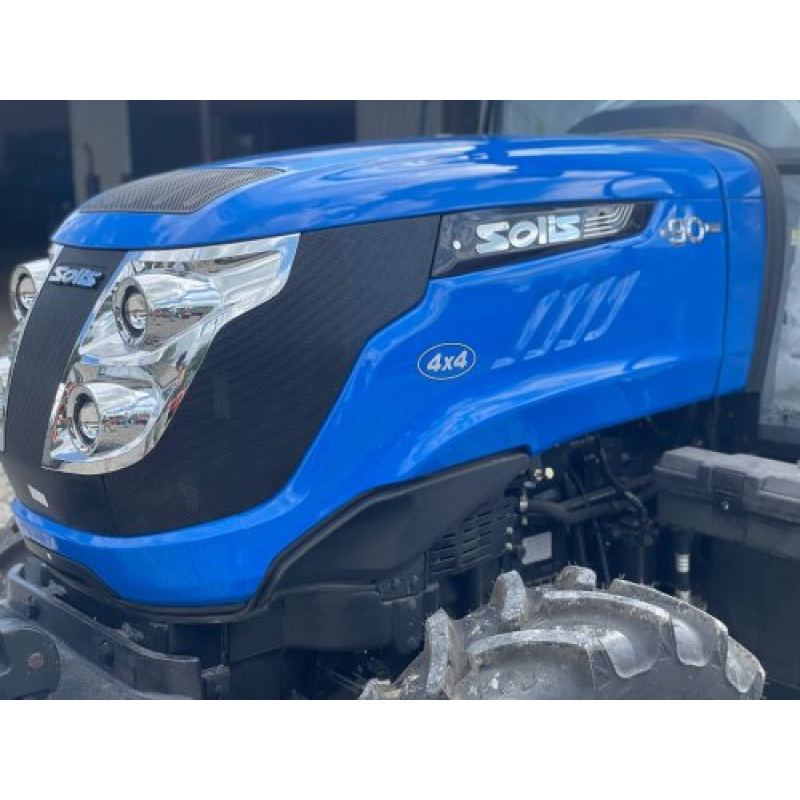

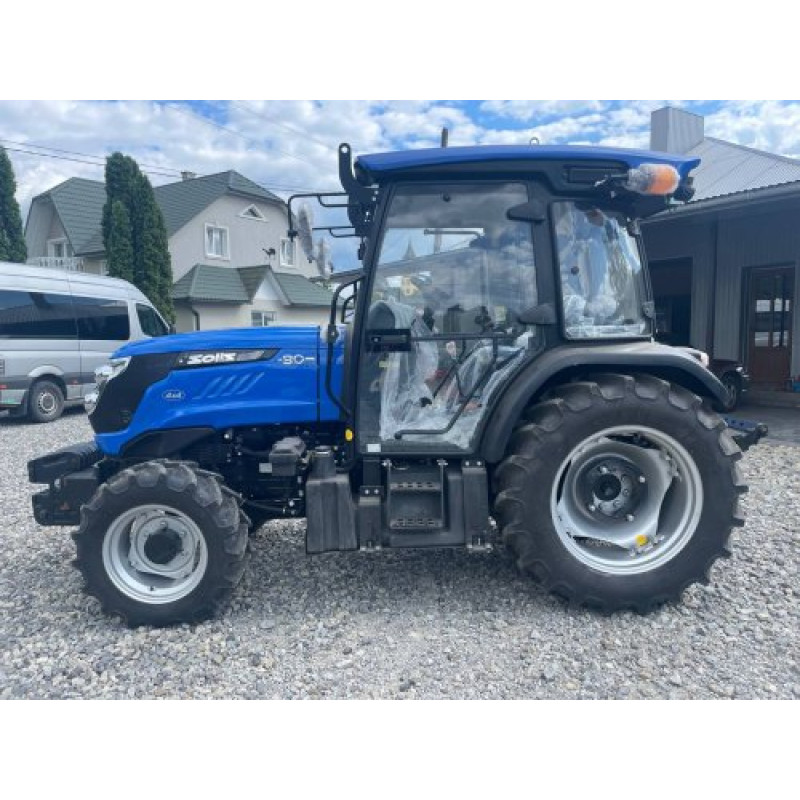

Solis 90 Tractor — a reliable universal tractor from SOLIS

The Solis 90 tractor (SOLIS brand) — is a powerful and multifunctional machine for agriculture, utilities, animal husbandry, construction, and mining. This model combines Indian reliability with modern technical solutions that increase engine life and wear resistance of components. Updates concerned not only functionality but also operator safety and comfort.

Purpose and design features

The Solis 90 is suitable for working with loaders, trailers, and complex mounted implements. The veteran design is combined with modern electronics and robust mechanics: a powerful engine, reliable Antonio Carraro transmission, sturdy chassis, productive hydraulics, and a well-thought-out electrical system. The model is optimal for farmers and utility services that need a versatile mid-range tractor.

Engine

It is equipped with a turbocharged 4-cylinder ITL/Sonalika 90-NT (N 90) diesel engine with a displacement of 4087 cm3 and Turbocharged & Intercooled (TCIC) technology. The power is 90 hp, nominal speed — 2200 rpm. Maximum torque is 367 Nm at 1500 rpm. An economical Bosch fuel system and pre-start winter heating are implemented for reliable starting in cold weather. The maximum travel speed — 35 km/h, minimum — about 1.53 km/h.

Transmission and drive

The mechanical synchronized transmission from Antonio Carraro with a 12+12 gearbox and convenient reverse ensures efficient operation in confined spaces. Drive type — 4x4, clutch — dual-disc. This combination guarantees reliable power transmission and maneuverability in the field and on the construction site.

Chassis

The front and rear axles are designed by Antonio Carraro, with independent suspension at the front. Adjustable front/rear track: 1150-1284 mm and 969-1215 mm respectively. Wheelbase — 2350 mm. Various sources mention a ground clearance of 390 mm or 265 mm — this depends on the wheel configuration or trim version, so it is worth clarifying when ordering. Front and rear wheels can be in 12.4-24 / 18.4-30 (inches) options or radial tires 280/70R18 and 360/70R28. Minimum turning radius — 3.6 m. Brakes — oil-immersed disc brakes on all wheels.

Hydraulics and PTO

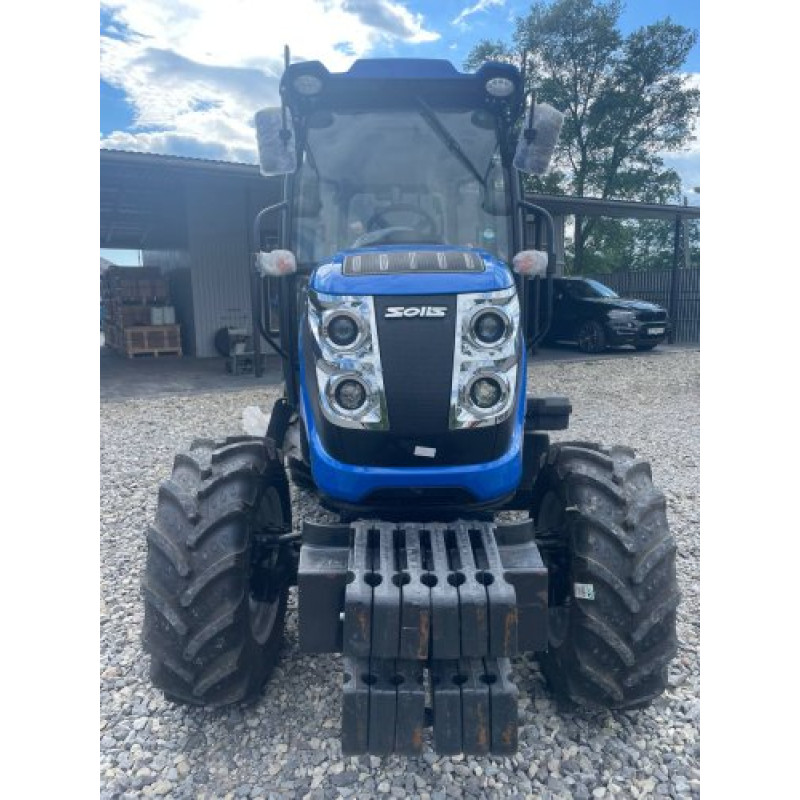

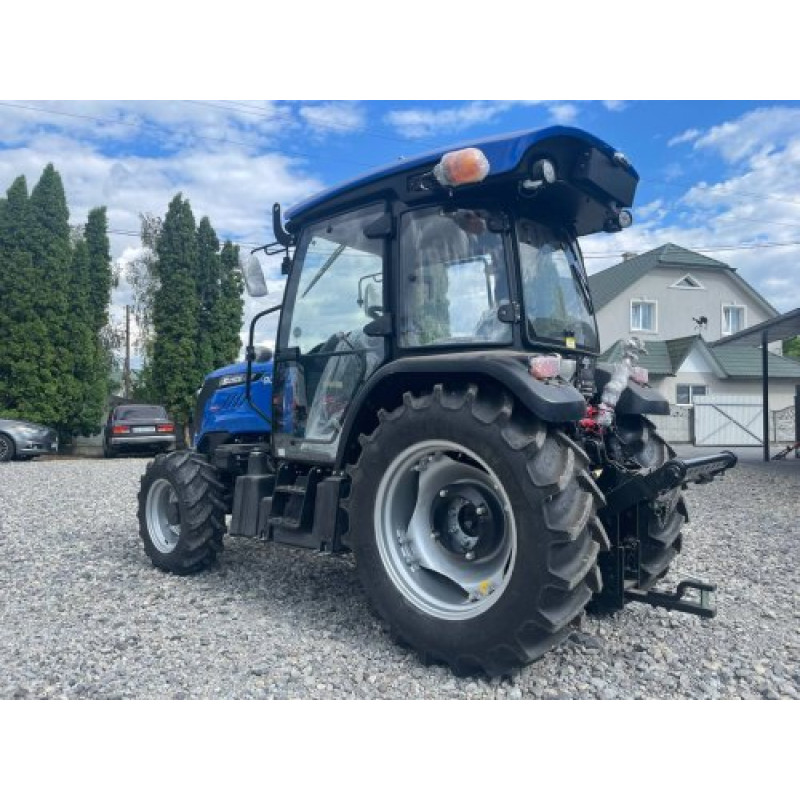

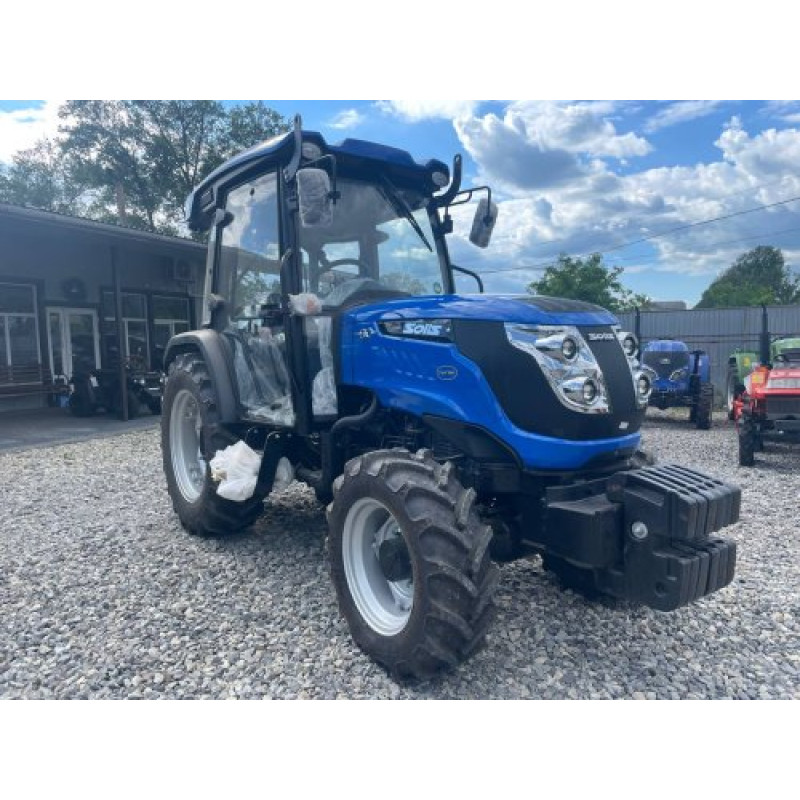

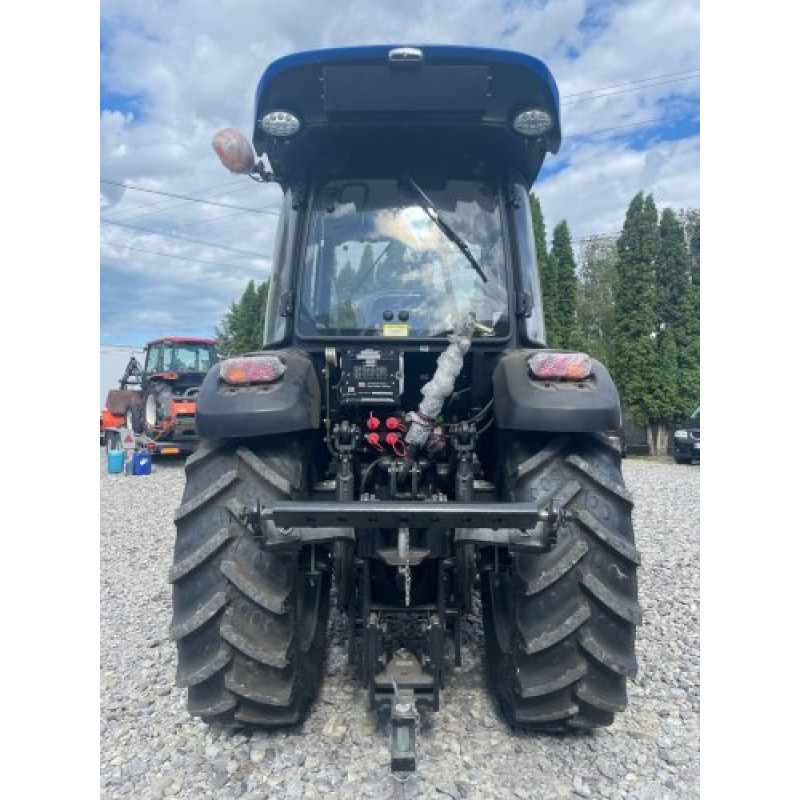

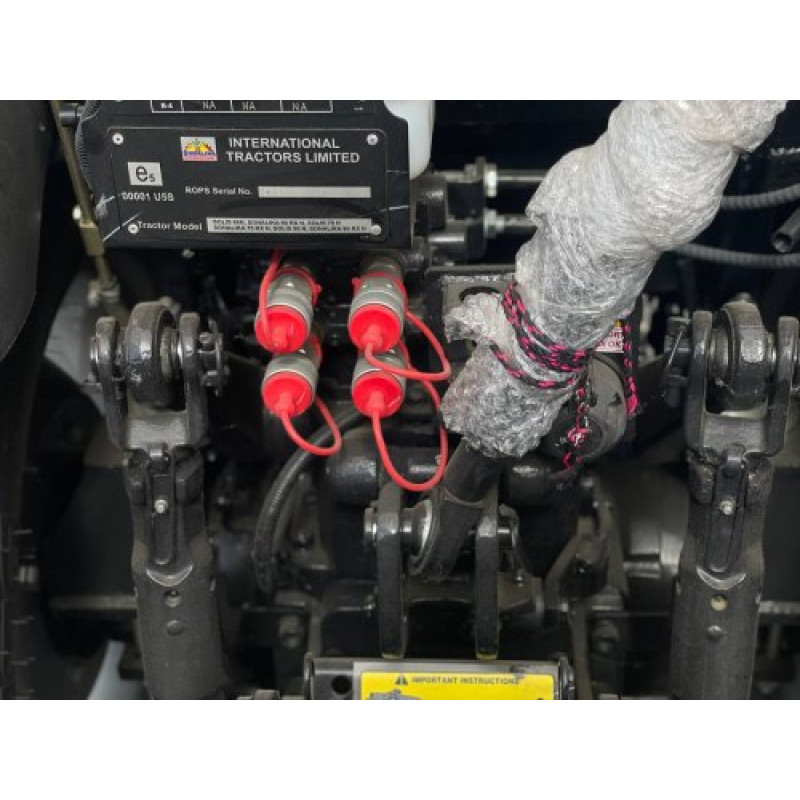

The rear three-point hitch of CAT-II standard has a lifting capacity of up to 2500 kg with a standard tractor weight of about 3500 kg. There is an additional 2DA/2SA hydraulic circuit, 4 hydraulic outlets, and a trailer socket. The PTO in some variants is specified as 540/1000 rpm, in the technical table it is 540/540E — this reflects the configuration options. The maximum permissible towing capacity — up to 10 tons. Front counterweights — 6 blocks with a total weight of 186 kg; rear wheel counterweights 34 kg each (total 68 kg).

Electrical system

A 12 V / 100 A generator provides stable power to electrical equipment. The battery is typical for this class — 12 V / 100 Ah.

Operator safety and comfort

The cabin frame meets ROPS safety requirements; if necessary, the structure can be reinforced to FOPS for loader operation. Protective options include:

• emergency clutch shutdown;
• protective PTO shutdown;
• neutral safety switch.

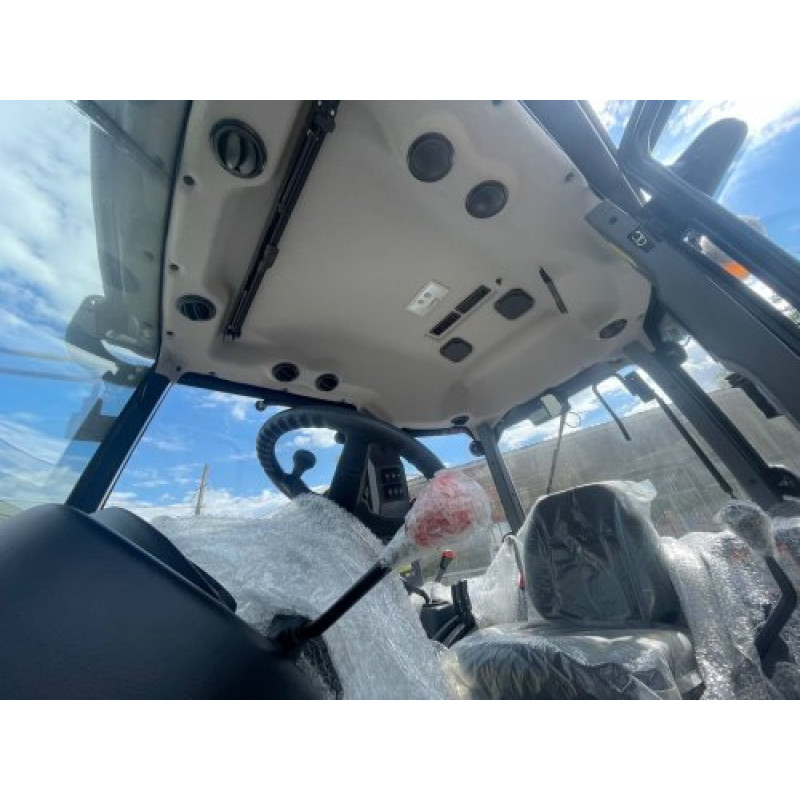

Seat belts are also installed. For comfort, there is an adjustable steering column, heater, fan, air conditioner, and Kenwood audio system.

Operational advantages and purchase conditions

The Solis 90 combines an affordable price with high performance and extended engine life thanks to modern design solutions. The equipment quickly pays for itself in various industries. Possible payment terms: cash on delivery, bank transfer, or purchase on credit. Brand: SOLIS. Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.

Specifications:

This information covers the key parameters and advantages of the Solis 90 tractor and will help you make the right choice of equipment for your production tasks.
