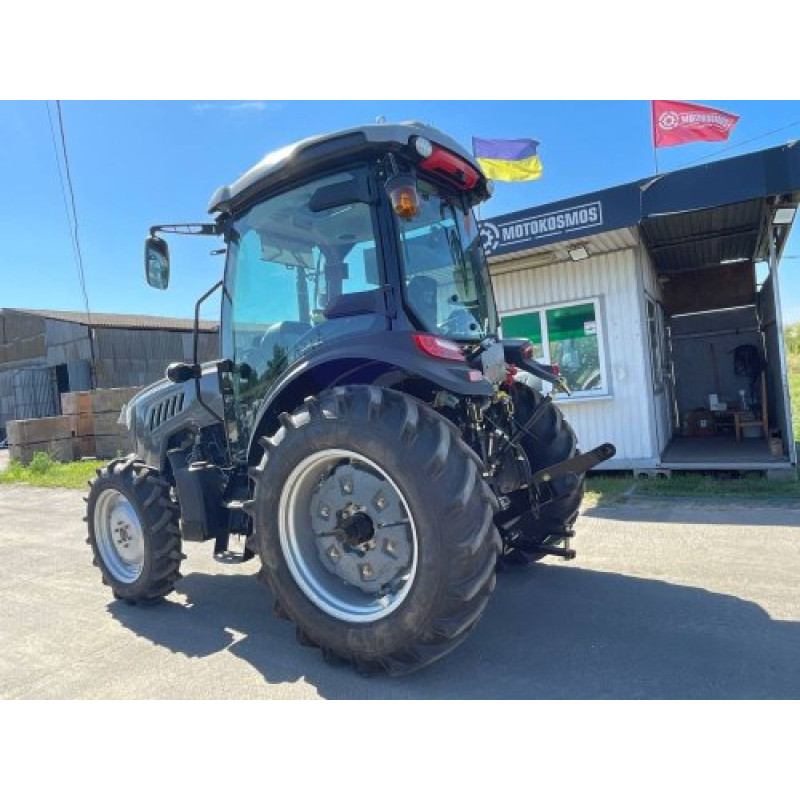

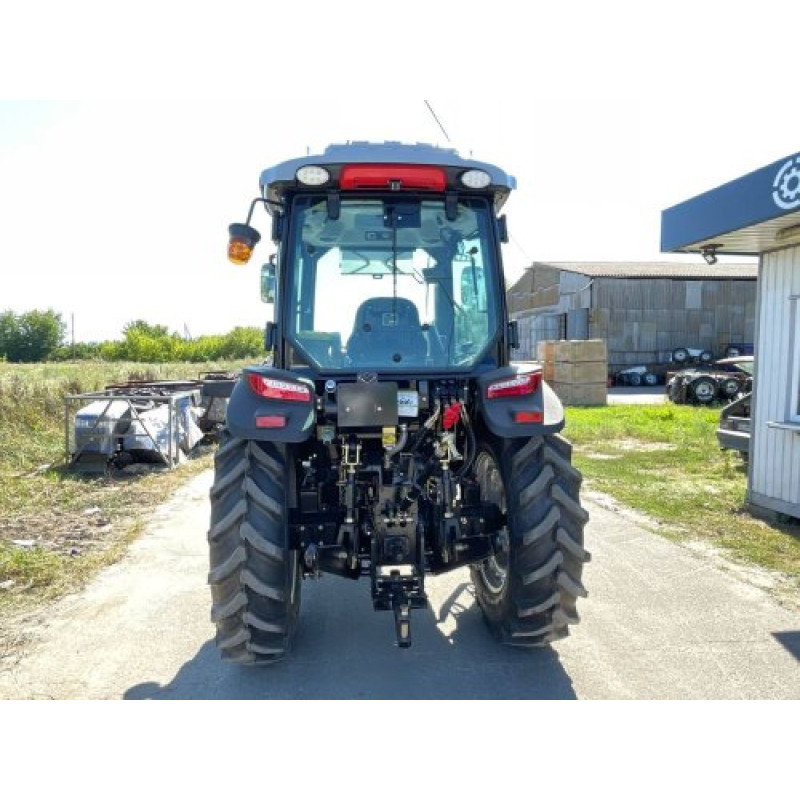

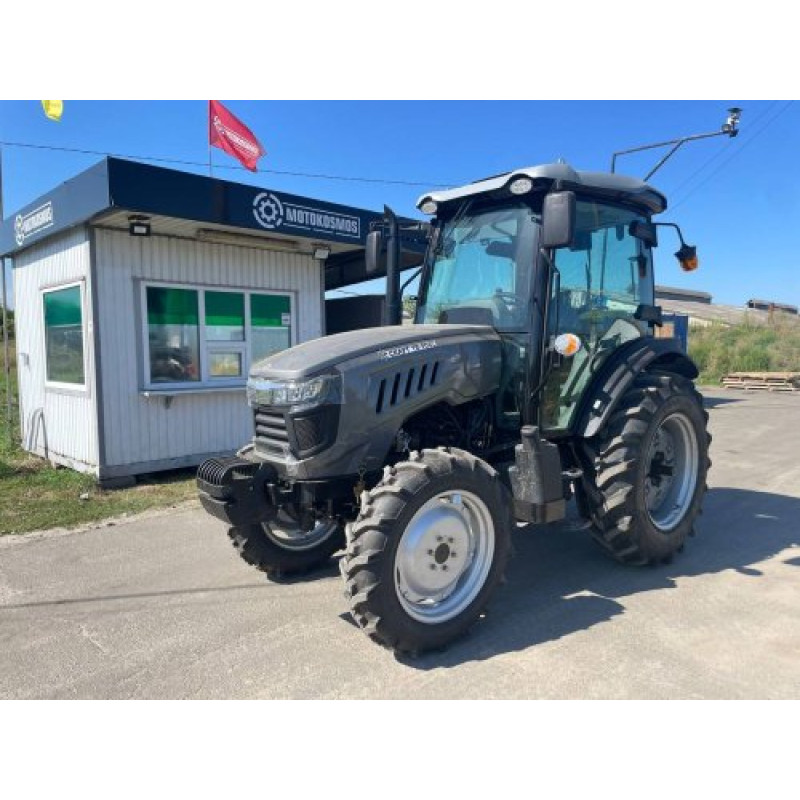

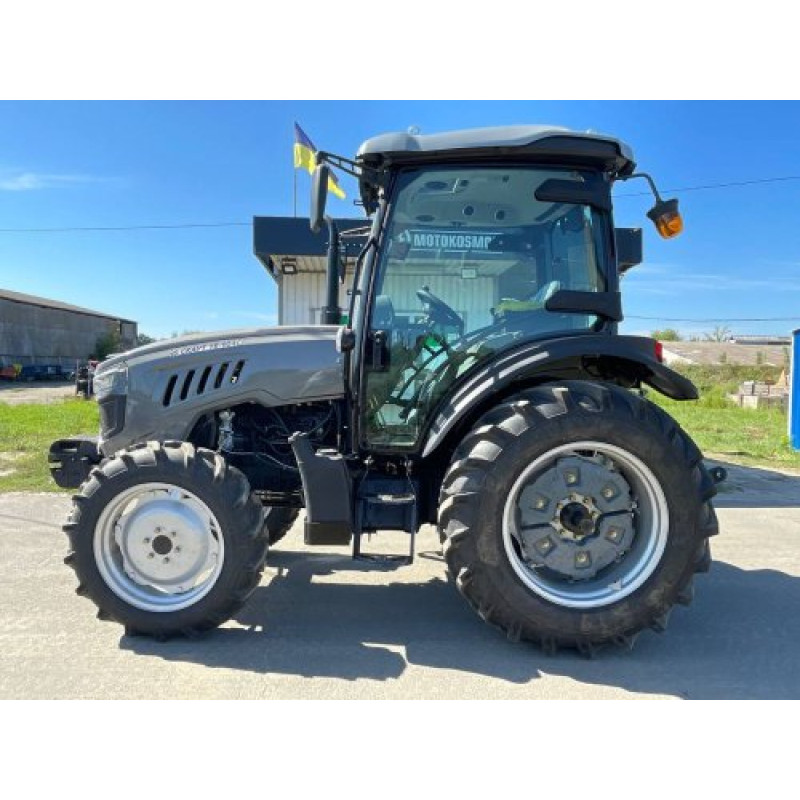

Tractor SKAUT TV-904S — powerful universal 4x4 for agriculture and utility work
The SKAUT TV-904S tractor from the Skaut brand is a reliable mini-tractor in the category: Tractors > Mini-tractors, designed for intensive use in the field and at utility facilities. The model is equipped with a YTO Y4105ZT 4-stroke diesel engine with a power of 90 hp (66.2 kW), a volume of 4200 cm3, with electric starter ignition and a closed liquid cooling system with forced circulation. The four-cylinder vertical block ensures reliable and stable operation under load, and the nominal fuel consumption is ≤323 g/kWh.
- Wheel formula: 4x4 for improved off-road capability.
- Gearbox: (4x3)+(4x3) — wide range of speeds for field, transport, and utility work.
- Clutch: dry 2-disc, ensuring durability and reliable gear shifting.
- Rear differential lock: yes (+) — for increased off-road capability in difficult conditions.
- Steering: hydraulic with gear pumps (NSh) — separate NSh for implement drive and NSh for power steering operation.
- Implement lifting capacity: 1880 kg, allowing work with a large number of agricultural and utility implements.
- Power take-off (PTO) shaft: rear splined, operating speeds 540/1000 rpm.
- Dimensions (LxWxH): 4000x1850x2890 mm; curb weight — 3900 kg.
- Tires: front 300/70 R20, rear 380/85 R30; ground clearance 390 mm.
- Track: front 1330-1490 mm, rear 1300-1820 mm.
- Brakes: on the secondary shaft of the gearbox, drum brakes.
- Trailer connector (socket): yes (+); number of hydraulic outputs: 4.
Technical specifications:
| Engine power, hp (kW) | 90 (66.2) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, YTO Y4105ZT |
| Number and arrangement of cylinders | 4, vertical |
| Engine start system | electric starter |
| Cooling system | liquid, closed, with forced circulation of cooling fluid |
| Engine displacement, cm3 | 4200 |
| Nominal engine fuel consumption, g/kWh | ≤323 |
| Gearbox (КП) | (4x3)+(4x3) |
| Rear differential lock | + |
| Clutch | dry 2-disc |
| Main drive | direct |
| Steering control | hydraulic |
| Brakes | on the secondary shaft of the gearbox, drum brakes |
| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump (NSh) for implement drive / NSh for power steering operation |
| Implement lifting capacity | 1880 kg |
| Power take-off (PTO) shaft speed, rpm | 540/1000 |
| Tire size | front 300/70 R20, rear 380/85 R30 |
| Wheel track | front 1330-1490, rear 1300-1820 |
| Ground clearance, mm | 390 |
| Number of hydraulic outputs | 4 |
| Trailer connector (socket) | + |
| Dimensions LxWxH mm | 4000x1850x2890 |
| Curb weight, kg | 3900 |
The SKAUT TV-904S combines a robust frame and transmission with an efficient YTO diesel unit, making this tractor a versatile solution for field work, loading operations, and utility tasks. The presence of a differential lock, a powerful PTO with two speed modes, and sufficient lifting capacity allows working with various equipment and implements. Simple maintenance, a well-designed hydraulic system with separate gear pumps for implements and power steering ensure ease of operation and high productivity in difficult conditions.
