Product Code: FA94-18315-94
126 720 грн.
Buy this product in 1 click:
Main specifications
Cooling: natural
Dimensions (HxWxD), mm: (450 x 420 x 160)*3
Efficiency, %: 98
Humidity, max: 40…80%
Max. power at Umin, kW: 21.9
All specifications
We will deliver this product:
Payment
Description

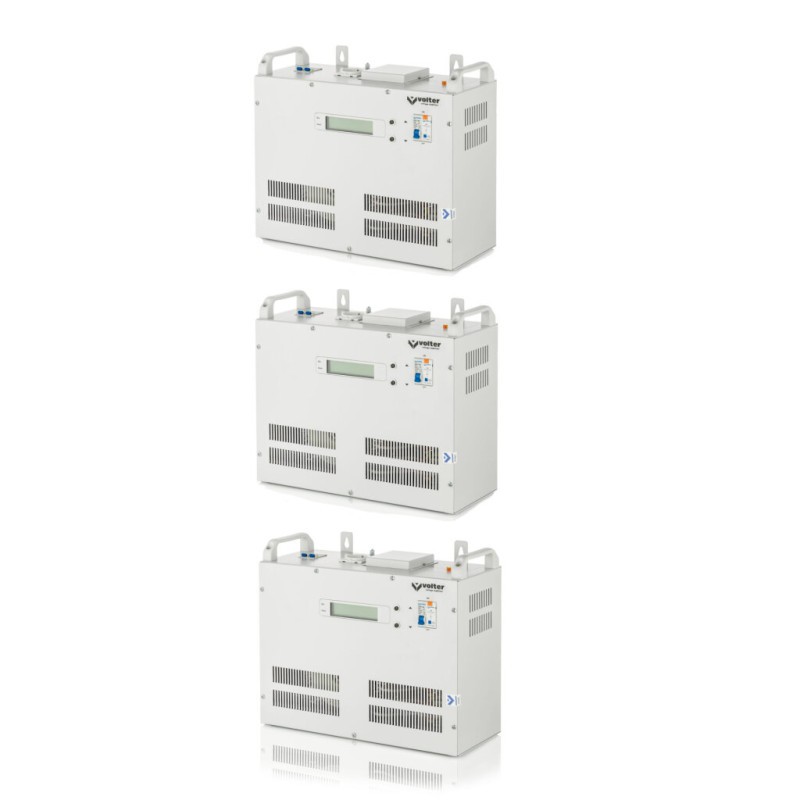

The Volter-33 pt is a three-phase voltage stabilizer consisting of three 11 kW high-precision stabilizers.

This Volter stabilizer operates continuously 24/7 and is permanently installed for the entire house (apartment, office, production equipment). It connects via a terminal block, in the phase break at the input immediately after the meter.

The stabilizer contains no mechanical elements, including a fan (convection cooling is implemented).

The Volter™-33 pt (3*11) can operate in freezing conditions, allowing you to install it in an unheated room.

The stabilizer provides the ability to adjust the output voltage by 15 Volts up and down with a 1 Volt increment. This feature is useful if your consumers require a voltage different from 220 Volts (e.g., 230).

Specifications
Cooling natural

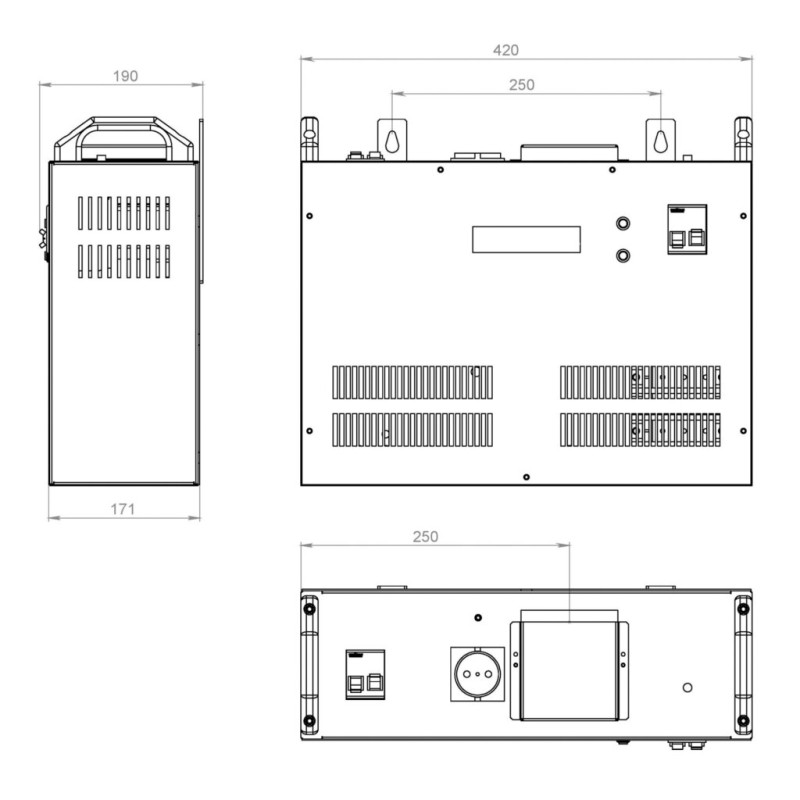

Dimensions (HxWxD), mm (450 x 420 x 160)*3
Efficiency, % 98
Humidity, max 40…80%
Max. power at Umin, kW 21.9
Maximum current, A 50
Maximum power, kW 33

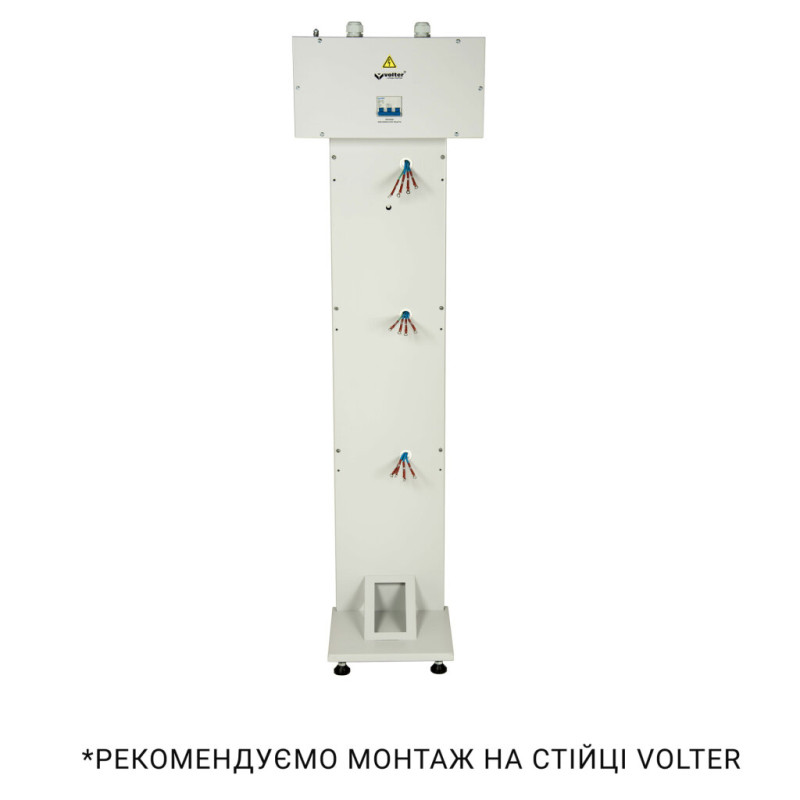

Mounting method wall-mounted/floor-standing
Noise level, dB 34-40, depending on the load
Number of stages 16
Output voltage 220 V (per phase)
Phase three phases
Protection class IP20
Response time, ms 20
Stabilization accuracy +2 -3%
Temperature range Operating temperature range from +1°C to 40°C indoors
Temperature range, custom Operating range from minus 25°C to plus 40°C indoors - additional cost for a three-phase stabilizer - 1500
Type electronic thyristor
Warranty, months LIFETIME
Weight, kg 101.4
Weight, kg 33.8*3
Color light gray
