All about product
Description
Specification
Reviews 0
Questions0

0 Leave a review
Product Code: FA94-18276-94
181 620 грн.
Buy this product in 1 click:
Main specifications
Cooling: natural
Dimensions (HxWxD), mm: (650 х 420 х 190)*3
Efficiency, %: 98
Humidity, max: 40…80%
Max. power at Umin, kW: 43.5
All specifications
We will deliver this product:
Payment
Description

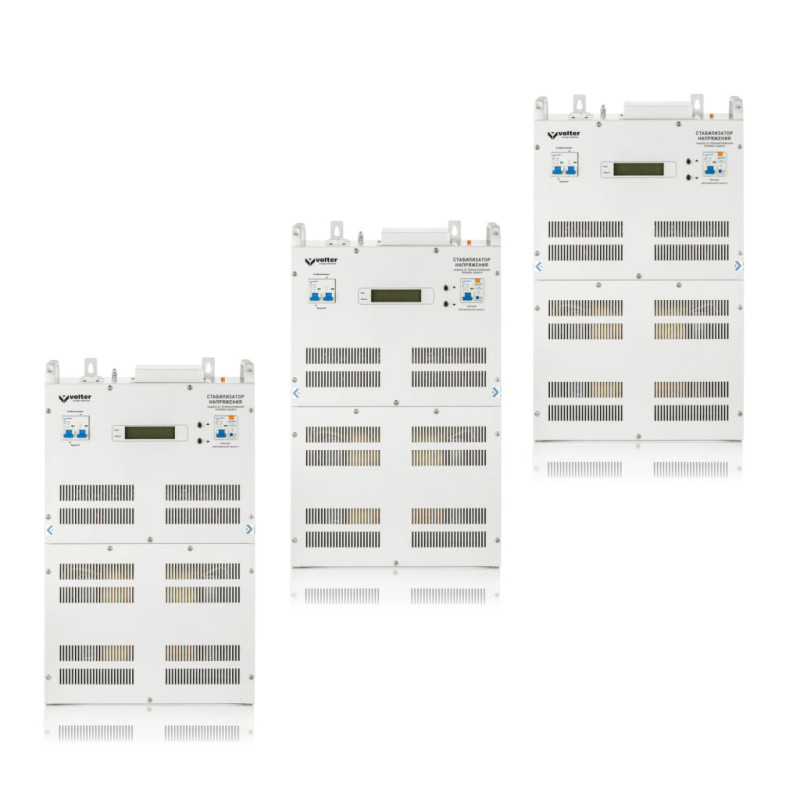

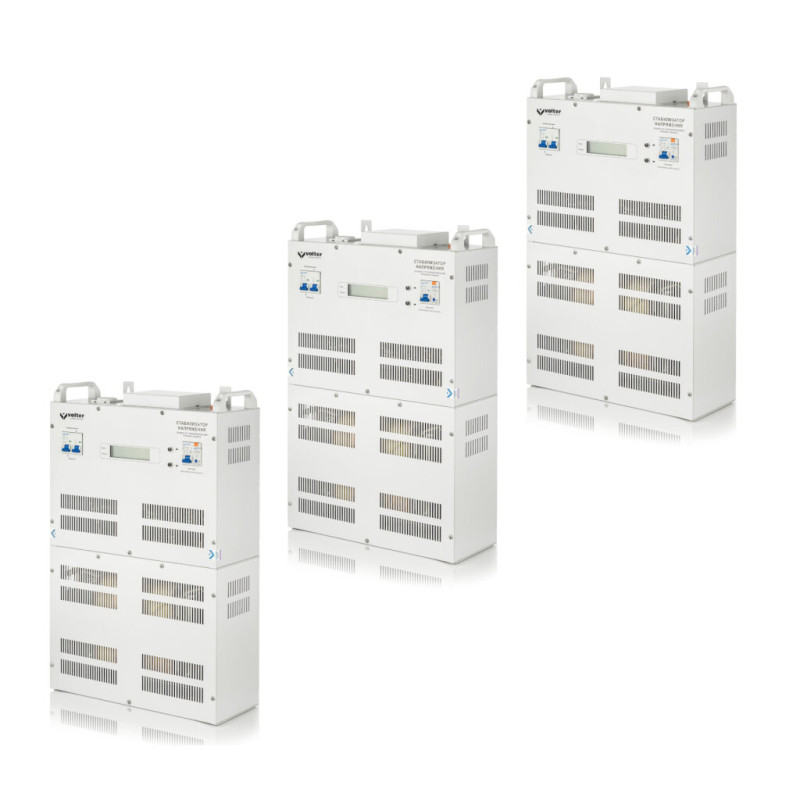

Smart-66 is a three-phase voltage stabilizer for an apartment or house with a maximum power of 22 kW per phase, belonging to the Volter Smart series, designed to provide stabilized voltage to all types of electrical consumers when powered from a grid with unsatisfactory voltage quality.

The stabilizer contains no mechanical elements, including a fan (convection cooling is implemented).

Volter™-66 pt (3*22) is capable of operating in freezing conditions, allowing you to install it in an unheated room.

The stabilizer provides the ability to adjust the output voltage by 15 Volts up and down with a 1 Volt increment. This function will be useful if your consumers require a voltage different from 220 Volts (e.g., 230).

Specifications
Cooling natural

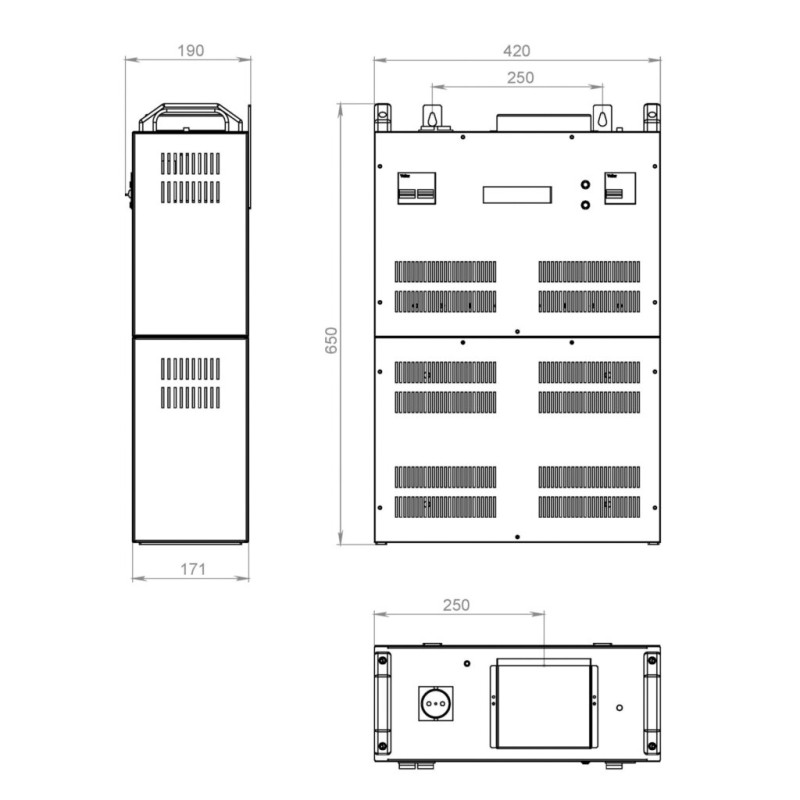

Dimensions (HxWxD), mm (650 х 420 х 190)*3
Efficiency, % 98
Humidity, max 40…80%
Max. power at Umin, kW 43.5
Maximum current, A 100
Maximum power, kW 66
Mounting method wall-mounted/floor-standing
Noise level, dB 34-40, depending on the load
Number of stages 16
Output voltage 220 V (per phase)
Phase three phases
Protection class IP20
Response time, ms 20
Stabilization accuracy +2 -3%
Temperature range Operating temperature range from +1°C to 40°C indoors
Temperature range, custom Operating range from minus 25°C to plus 40°C indoors - additional cost for a three-phase stabilizer - 1500
Type electronic thyristor
Warranty, months LIFETIME
Weight, kg 161.1
Weight, kg 53.7*3
Color light gray
