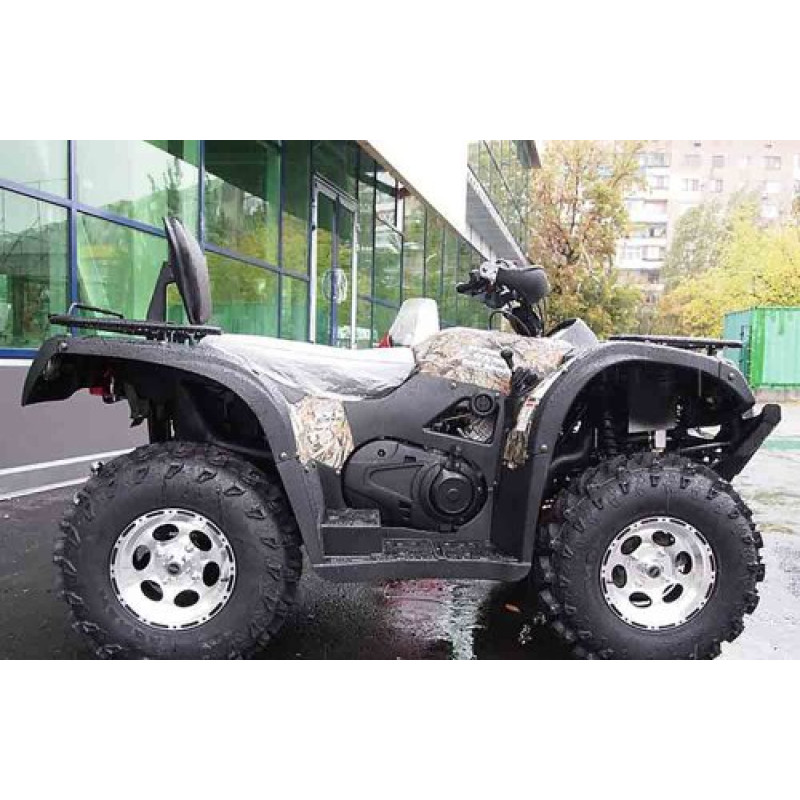

Speed Gear Force 500 (base) — Quad Bike
Brand: SPEED GEAR. Product Type: Motor Vehicles > Quad Bikes. The Speed Gear Force 500 (base) model is designed for those who need reliable, powerful, and versatile all-terrain transport for recreation, agricultural work, hunting, and fishing.
This quad bike is equipped with a 4-stroke carbureted gasoline engine with a displacement of 500 cm3, developing 35 hp at 6500 rpm. An electric starter is installed for quick and convenient starting, and the cooling system is liquid-cooled. The drive is all-wheel drive with selectable 2x4 and 4x4 modes, as well as a differential lock for confident off-road capability on difficult terrain. The automatic transmission (V-belt variator) with high, low, forward, neutral, and reverse modes ensures ease of control and smooth operation.
Key Advantages
- Powerful 500 cm3 liquid-cooled engine with electric starter for reliable starting in various conditions.
- 4x4 all-wheel drive system with 2x4 switching and differential lock for improved off-road capability.
- Automatic transmission (variator) provides comfortable riding without manual gear shifting.
- Durable tubular metal frame with body kit, allowing for the installation of additional trunks and accessories.
- High-strength ABS plastic body kit ensures durability and protection of external elements.
Specifications:
| Wheel formula | 4x4 |
| Engine power, hp | 35 hp at 6500 rpm. |
| Engine type | gasoline, 4-stroke, carburetor |
| Engine displacement, cm3 | 500 |
| Engine starting system | electric starter |
| Cooling system | liquid |
| Transmission | automatic (V-belt variator) |
| Transmission modes | high, low, forward, neutral, and reverse / all-wheel drive, 2x4 and 4x4 modes |
| Differential lock | yes |
| Final drive | direct |
| Front brakes | disc |
| Rear brake | disc on wheel axle |
| Wheelbase, mm | 1365 |
| Tire size | front 26x8-10, rear 26x10-10 |
| Fuel tank capacity, L | 17 |
| Dimensions, LxWxH mm | 2250x1365x1225 |
| Front suspension | independent, double A-arm, transverse levers, coil springs, shock absorbers |
| Rear suspension | independent, double A-arm, transverse levers, coil springs, shock absorbers |
| Average fuel consumption, L / 100 km | 7 |
| Weight, kg | 329 |
| Plastic body kit | high-strength ABS plastic (front bumper, side mudguard, fender flares) |
| Metal body kit | tubular, integrated into the frame with the possibility of installing additional trunks |
Thanks to a spacious 17-liter tank and an average consumption of about 7 L/100 km, the Speed Gear Force 500 (base) provides good autonomy for long trips. Disc brakes at the front and a disc rear brake on the axle provide reliable braking in difficult conditions. Dimensions of 2250x1365x1225 mm and a weight of 329 kg make the machine stable and controllable even under intense loads. The design with a tubular metal body kit integrated into the frame allows for the installation of additional equipment and trunks, increasing versatility of use.
If you need a powerful, reliable, and easy-to-operate quad bike with modern mechanics and thoughtful ergonomics — the Speed Gear Force 500 (base) will be an excellent choice for active recreation and work.
