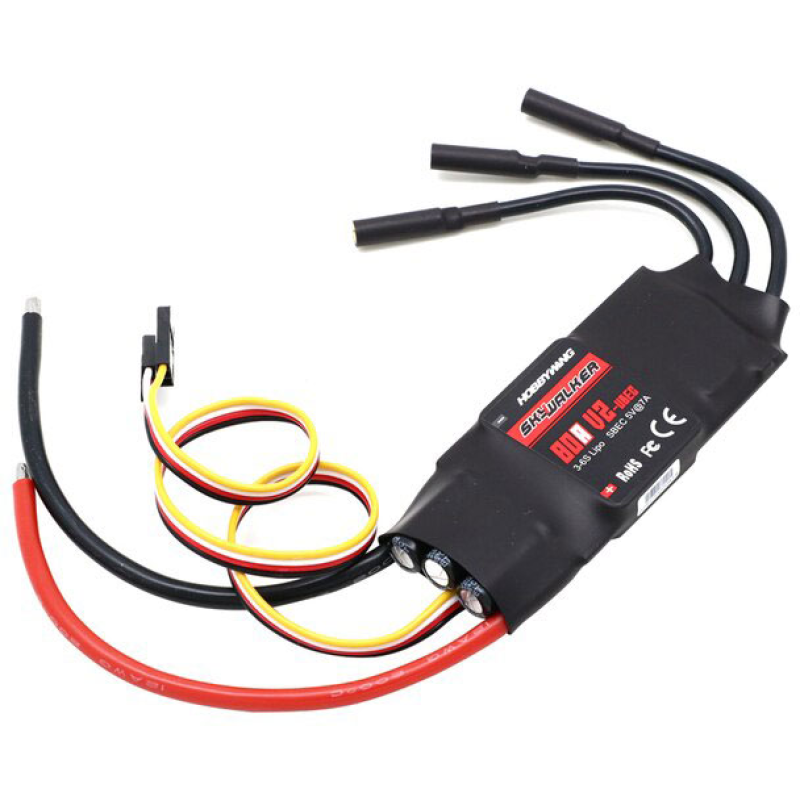

Hobbywing Skywalker 80A v2 ESC

HOBBYWING SKYWALKER 80A V2 — a reliable brushless electronic speed controller (ESC) for RC aircraft and drones, combining high performance with advanced safety features and ease of setup. This ESC ensures no motor rotation after battery connection, regardless of throttle position, making it safe when preparing the model for flight. It offers throttle calibration for full compatibility with various transmitters, as well as programming support via transmitter, LED program card, or program port for quick setup in the field and at home.

The controller supports various battery types, including Lipo and NiMH, making it a versatile choice for a wide range of models. The model features low-voltage protection, overheat protection, and accidental throttle opening protection, enhancing reliability and operational safety. Multiple operating modes and flexible control signal frequency settings are supported for optimal performance in different control systems.

Key Features and Technical Parameters:

• Manufacturer: HOBBYWING
• Product Name: SKYWALKER 80A UBEC
• Type: Brushless Electronic Speed Controller (ESC)
• Continuous / Peak Current: 80A / 100A (up to 10 seconds)
• Control Signal Frequency: 50Hz to 432Hz
• Maximum RPM:
  • 210,000 RPM for 2-pole motors
  • 70,000 RPM for 6-pole motors
  • 35,000 RPM for 12-pole motors
• Power Supply Voltage: 3-6 S Lipo
• BEC Output:
  • Voltage: 5V
  • Max Current: 7A
• Power Connection: Red - 12AWG - 150mm × 1, Black - 12AWG - 150mm × 1
• Motor Connection: Black - 14AWG - 100mm × 3
• Input and Output Connectors: None
• ESC Programming via: Transmitter, Program Card, Program Port
• Firmware Update: Not supported
• Dimensions: 85x36x9 mm
• Weight: 79 g

The Hobbywing Skywalker 80A V2 is suitable for amateur and semi-professional builds where a powerful yet easy-to-configure ESC is required. Thanks to its wide control signal frequency range (50–432 Hz), the device is compatible with various receivers and transmitters, and the throttle calibration feature ensures precise motor response to your commands. The 5V/7A BEC parameters allow powering onboard electronics without the need for additional converters for small systems.

The controller provides reliable protection for the electrical components of the device: low battery voltage protection, overheat protection, and protection against unintended throttle input when connecting the battery. Programming capabilities via transmitter or card allow for quick parameter changes in the field, which is convenient during test flights or competitions.

Additional information: the ability to use with Lipo and NiMH batteries, lack of firmware update support, and absence of built-in input/output connectors should be considered when planning installation and integration into a specific model.

Images and designations: Skywalker_UBEC_V2_Body (original file name: 653bb9b55b3ff733Skywalker_UBEC_V2_Body)

The Hobbywing Skywalker 80A V2 — is an optimal choice for those seeking a powerful, safe, and easy-to-configure ESC for their drones and quadcopters.
