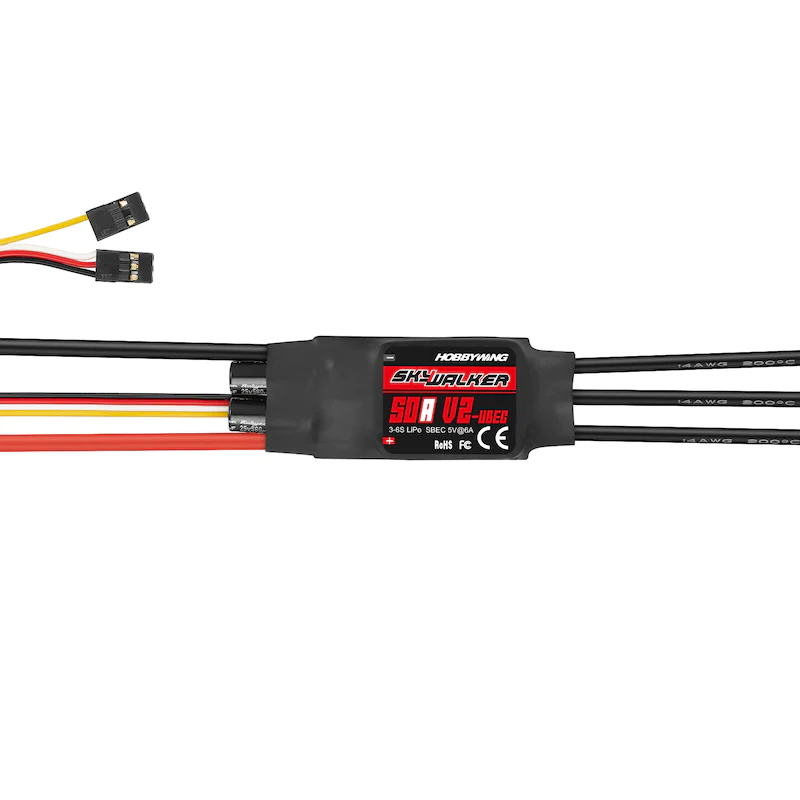

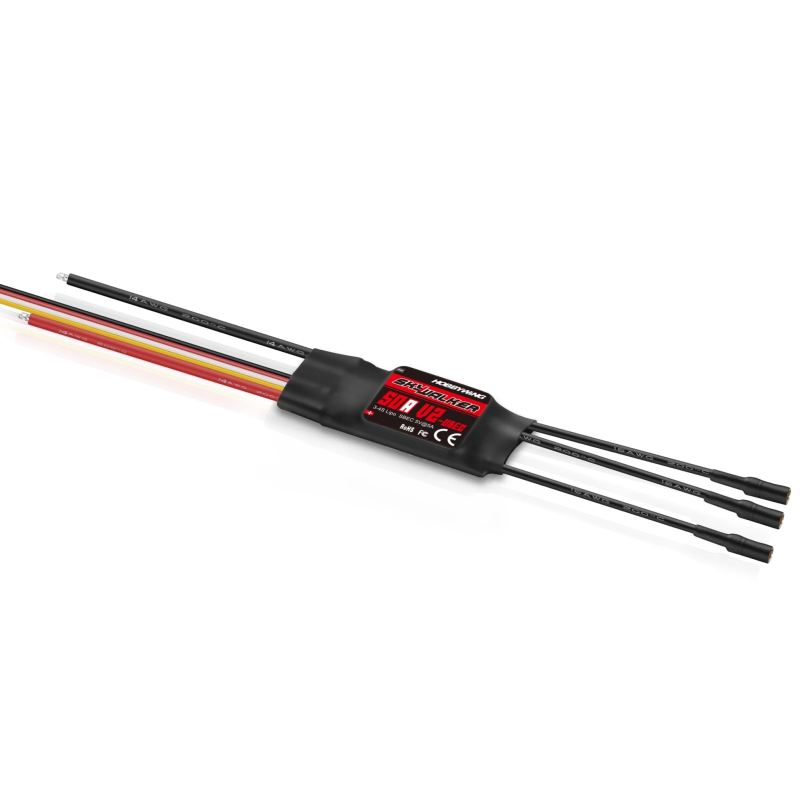

HOBBYWING SKYWALKER 50A V2 Plus — Speed Controller for Models

Hobbywing SKYWALKER 50A V2 Plus — is a reliable programmable electronic speed controller (ESC) designed for RC airplanes, helicopters, and other medium-sized models. This model from Hobbywing combines high performance, a comprehensive set of protections, and the ability to precisely tune for a specific motor and operating conditions.

Key Features and Compatibility

• Model: HOBBYWING SKYWALKER 50A V2 Plus
• Manufacturer: Hobbywing
• Category: Drones and Quadcopters > Drone Components > Drone Spare Parts (this product also belongs to the Stacks (FC+ESC) category)
• Rated (Continuous) Current: 50 A
• Peak Current: 65 A (up to 10 seconds)
• Power Supply: 2S to 4S LiPo; also supports 5–12 NiMH batteries
• BEC: Built-in switching BEC with 5 A current; various sources mention an output voltage of 5 V or 5.5 V
• Operating Frequency: 50 to 432 Hz
• Programming: Fully programmable — parameters can be configured using a programmer or special software

Functionality and Protections

The controller is equipped with a range of useful functions for safe and intensive model operation. Key features include:

• Overcurrent protection and overheat protection — ensure reliable operation under load
• Support for braking function for precise RPM control and convenient propeller landing
• Adjustable start mode — allows optimizing motor acceleration for a specific propeller
• Ability to fine-tune parameters for different propellers and workloads

Dimensions, Weight, and Design

• Dimensions (according to one description): approximately 48 x 28 x 8 mm
• Alternative dimensions (from another list of characteristics): 65 x 25 x 12 mm
• Weight: approximately 43 g
• Compact and lightweight body facilitates installation in medium-sized models without significant additional load

Package Contents

• The package includes one SKYWALKER 50A V2 Plus controller

Practical Application

SKYWALKER 50A V2 Plus is suitable for a wide range of models: from sport and training aircraft to medium helicopters. Support for 2S–4S LiPo batteries and a switching BEC with 5 A output current ensure stable power for the receiver and servos. Programmability allows adapting the controller to different motors and propellers, while protections ensure safe operation even in intensive flight modes.

Detailed Technical Parameters (Summary)

• Rated Current: 50 A
• Peak Current: 65 A (up to 10 s)
• BEC: Switching, 5 A, 5 V / 5.5 V mentioned
• Frequency: 50-432 Hz
• Power Supply: 2S-4S LiPo or 5-12 NiMH
• Dimensions: 48x28x8 mm (one description) / 65x25x12 mm (another description)
• Weight: 43 g

If you are looking for a programmable and protected mid-range ESC with an optimal power-to-weight ratio — the HOBBYWING SKYWALKER 50A V2 Plus from Hobbywing will ensure stable operation of your model's power system. Thanks to its wide operating frequency range, built-in BEC, and adjustable start and brake modes, this controller will be a reliable component for flights in various conditions.
