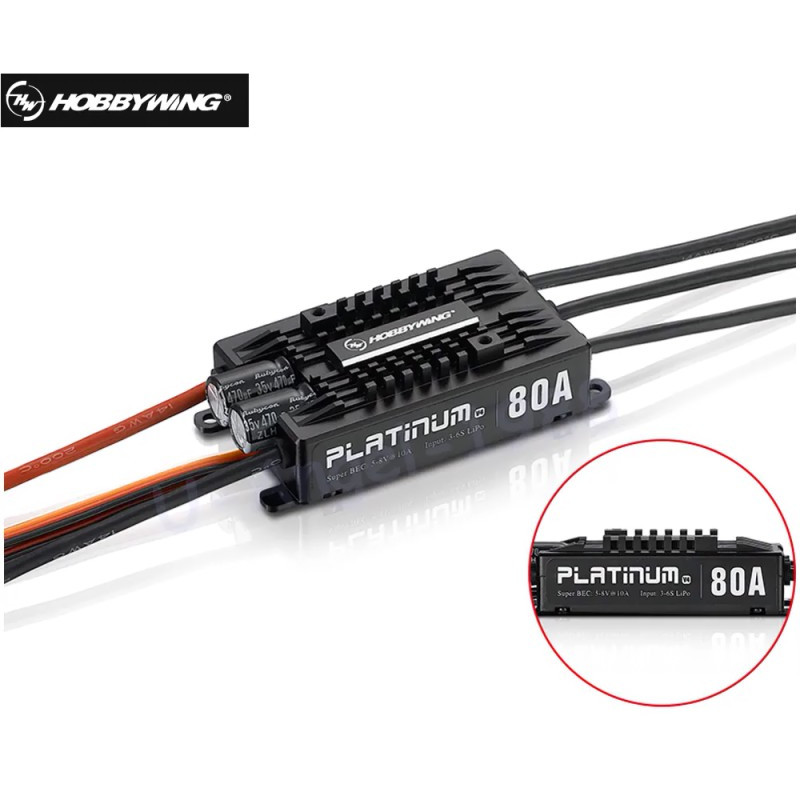

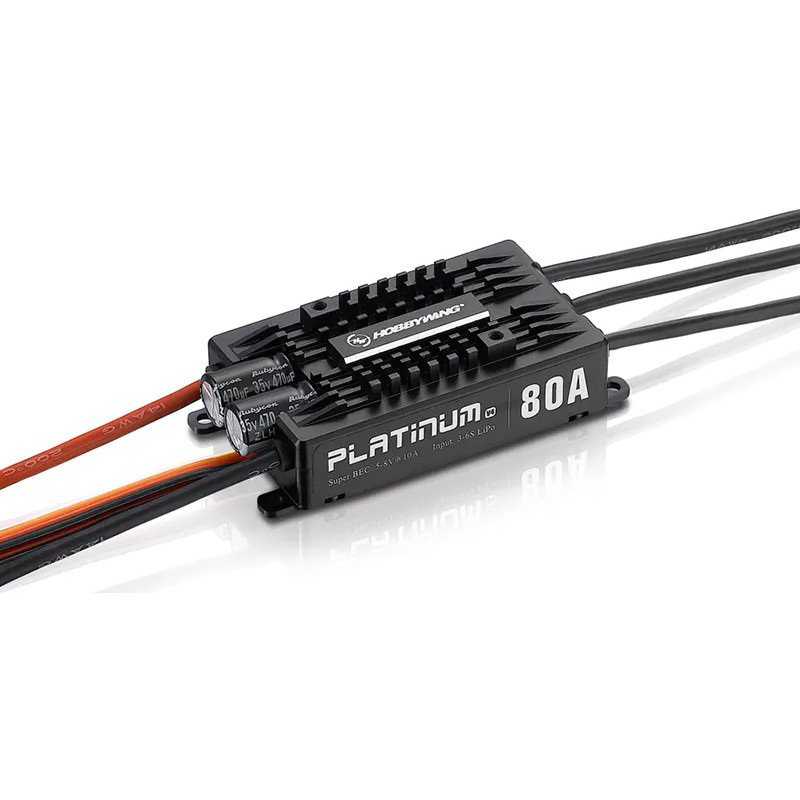

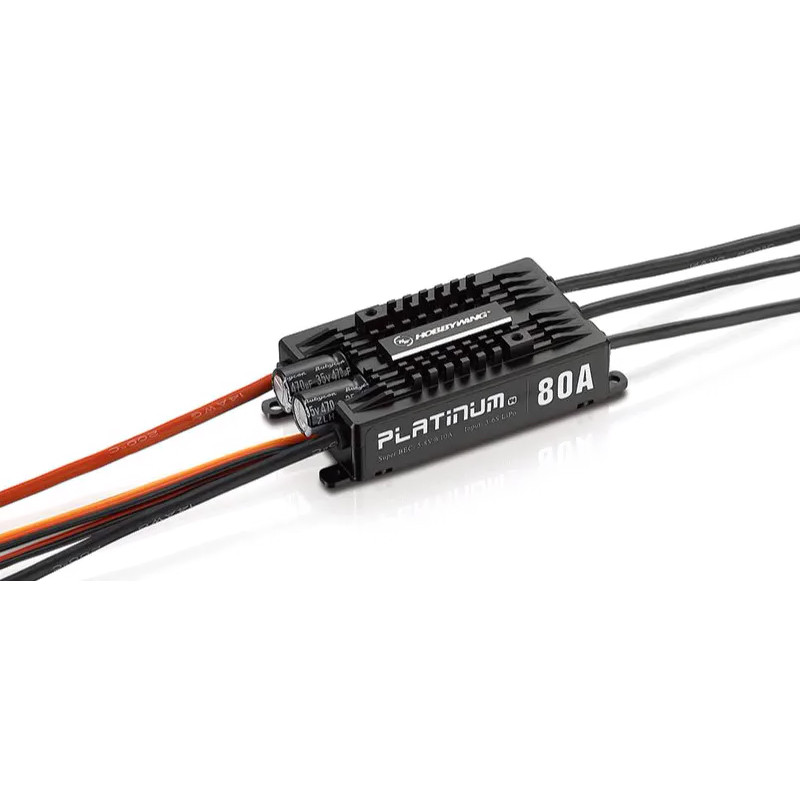

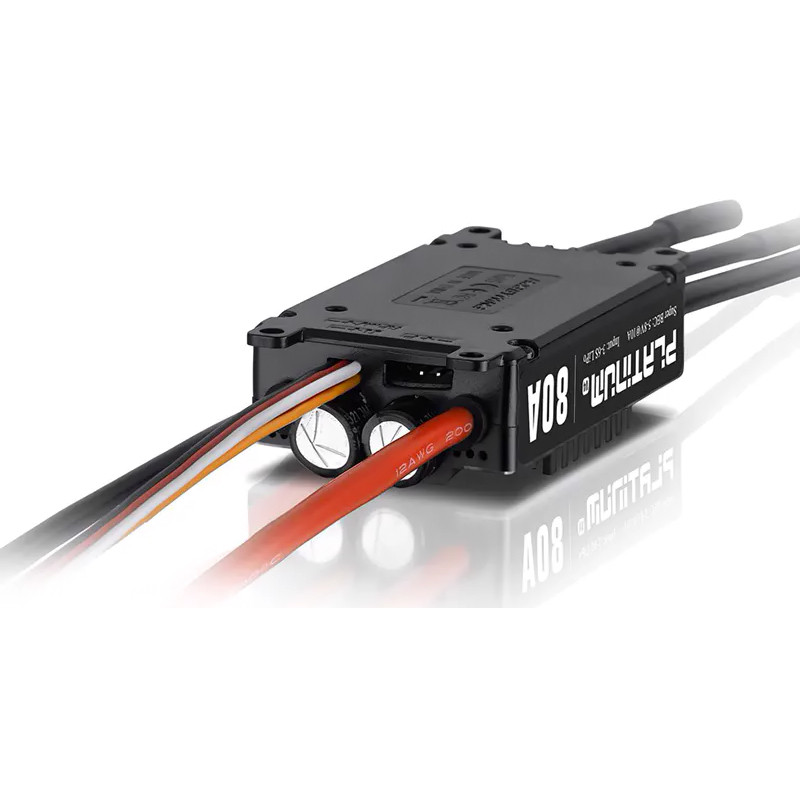

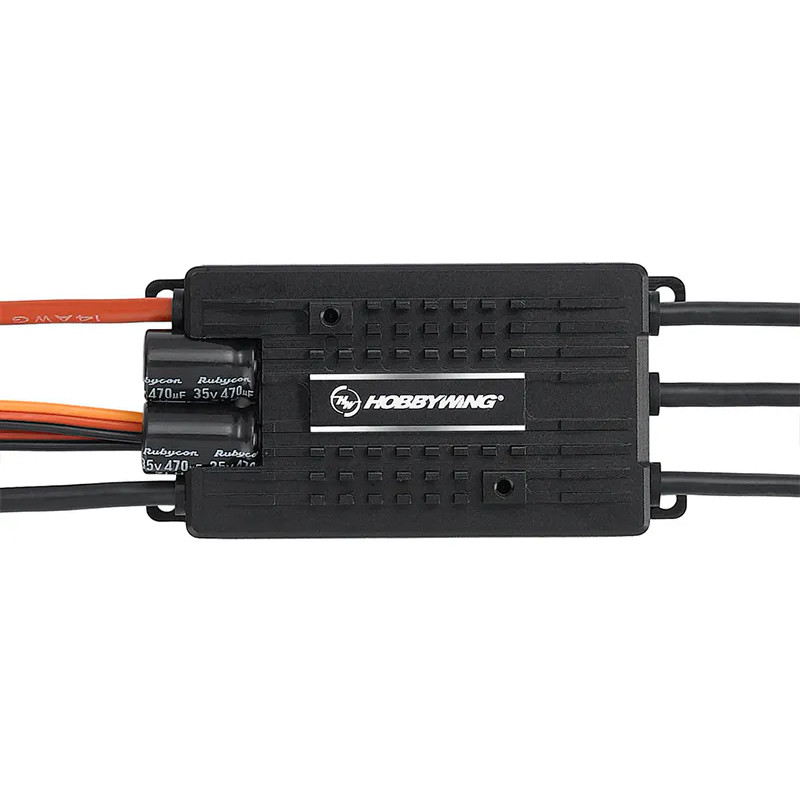

HobbyWing Platinum V4 80A 3-6S ESC

Brand: Hobbywing. Category: Drones & Quadcopters — Stacks (FC+ESC). This compact and powerful programmable Platinum Pro V4 80A 3-6S speed controller is designed for brushless motors and combines high performance with easy setup. It features a built-in BEC and active forced cooling with a miniature fan, ensuring stable operation under load and suitability for airplanes and racing cars.

Key Advantages and Features

The controller features advanced control and precise electronics: it uses a 32-bit processor with a clock speed of 72 MHz and modern speed control algorithms, ensuring smooth and fast motor response. A high-voltage BEC is used to provide reliable power to control systems. Convenient programming options and firmware updates are available to the user.

• Compact and Powerful Housing: optimal size and weight with high current endurance.
• Forced Cooling: miniature fan to maintain temperature during intensive operation.
• Programmable Interface: separate port for programmer connection; supports firmware updates via Wi-Fi or a dedicated application.
• DEO Technology: motion optimization and increased motor control efficiency.
• Easy Setup: ability to fine-tune controller parameters to your needs.

Power and BEC

The controller is equipped with a built-in BEC with adjustable output voltage and multiple operating modes. The product description states: built-in BEC with adjustable output voltage from 5 to 8 V at 10 A (up to 25 A peak). The technical specifications also list BEC modes: 6 V / 7.4 V, 4 A (switchable mode). This allows adapting power delivery to the needs of various equipment and peripherals.

Braking Modes

• No Brake
• Standard Brake
• Proportional Brake
• Reverse

Technical Specifications

• Purpose: For brushless motors
• Current: 80 A continuous / 100 A peak
• Voltage: 3-6S LiPo
• BEC: 6 V / 7.4 V, 4 A (switchable mode)
• Voltage Range: 5 – 7.4 V
• Firmware Update: Supported (via programmer, Wi-Fi, or dedicated application)
• Dimensions: 84.3×38.2×20.4 mm (with fan)
• Weight: 95 g (with wires)

The HobbyWing Platinum V4 80A 3-6S is an excellent choice for those seeking a reliable ESC for models requiring stable power and precise control. With firmware update support and easy programming, you can adapt the controller's operation to specific tasks: from high-speed models to demanding aerospace solutions. Support for various braking modes and the ability to fine-tune the BEC make this controller a versatile component in your electronics setup.

Other characteristics and compatibility with your model can be clarified with specialists or in the manufacturer's technical description. The description provides all key parameters and capabilities, including cooling features, programming, and electrical characteristics.
