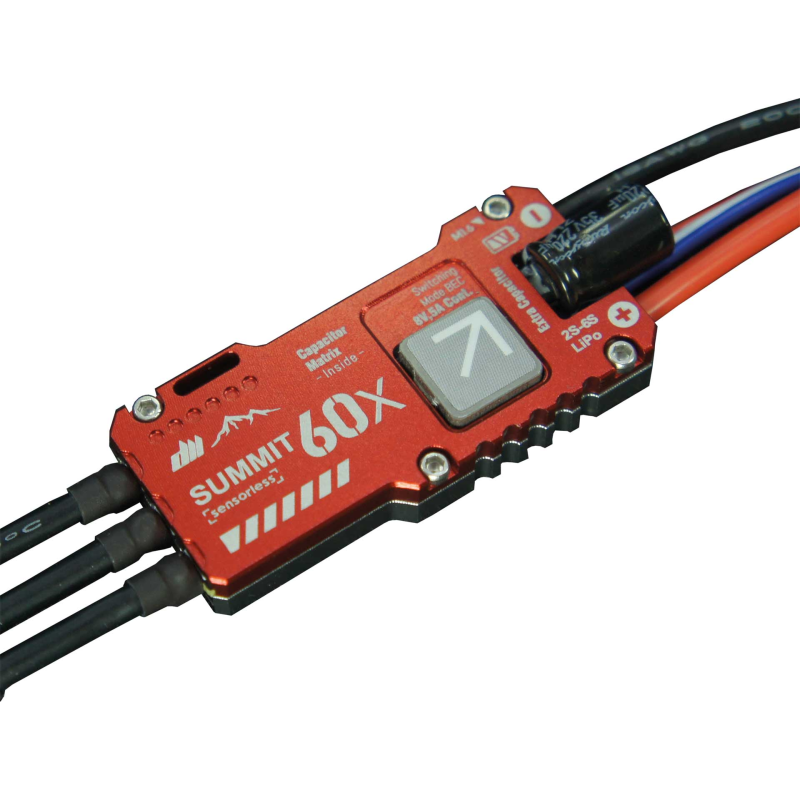

Dualsky SUMMIT 60X.U8 ESC (ID: 10913) — a high-performance brushless ESC from Dualsky, designed for demanding models and drones where compactness, precise control, and reliability are crucial. This controller combines a slim aluminum CNC-machined body with powerful functionality, making it an ideal choice for F3A, 3D aerobatics, gliders, medium-sized helicopters, and high-performance UAVs.

Description and Purpose

The SUMMIT 60X.U8 is designed for installation in confined fuselage spaces, where compact dimensions of 66×26×15 mm and a low weight of approximately 45 g are important. The slim aluminum body ensures efficient cooling and mechanical stability during intensive operation. Product type: Drones & Quadcopters > Stacks (FC+ESC). Brand: Dualsky.

Technical Specifications

• Input Voltage: 3–8S LiPo (up to 33.6 V)
• Max Current: 60 A
• Peak Current: up to 80 A
• Processor: ARM 32-bit, 48 MHz
• Protocol Support: PWM, DShot, ProShot, MultiShot
• Control Modes:
  • Sine modulation
  • Bidirectional (3D / soft reverse)
• Telemetry: via adapter, auto-identification, compatible with major protocols
• Protections:
  • Overcurrent protection
  • Overheat with power reduction
  • Low voltage protection (2.5–4.0 V/cell)
  • Low RPM protection
  • Demag compensation to prevent synchronization loss
• Other Features:
  • Programmable rotation direction
  • Braking with 1–100% adjustment
  • Regenerative braking
  • Automatic throttle calibration
  • Programming via USB-C
  • S.BUS input signal support
• Dimensions: 66×26×15 mm
• Weight: approximately 45 g
• Wires:
  • Power: 12AWG, 100 mm
  • Signal: 22AWG, 300 mm, JR type
• Housing: Aluminum CNC, Slim design

Operational Advantages

The Dualsky SUMMIT 60X.U8 ensures smooth and efficient motor acceleration thanks to sine modulation and active damping, which reduces noise and increases energy efficiency. Built-in protection algorithms guarantee reliability against overloads, overheating, and low voltage, while the Demag compensation function minimizes the risk of synchronization loss under load. Telemetry via adapter and auto-identification facilitate integration into modern flight control systems.

USB-C programming, S.BUS support, and a wide range of control protocols make the SUMMIT 60X.U8 a flexible solution for various model configurations. Adjustable braking, reverse, and 3D aerobatics functions transform this ESC into a versatile tool for complex maneuvers. Thanks to its compact size, low weight, and durable housing, it easily integrates into designs with limited space where compactness and cooling are important.

Brand: Dualsky. Product ID: 10913. Type: Drones & Quadcopters > Stacks (FC+ESC).
