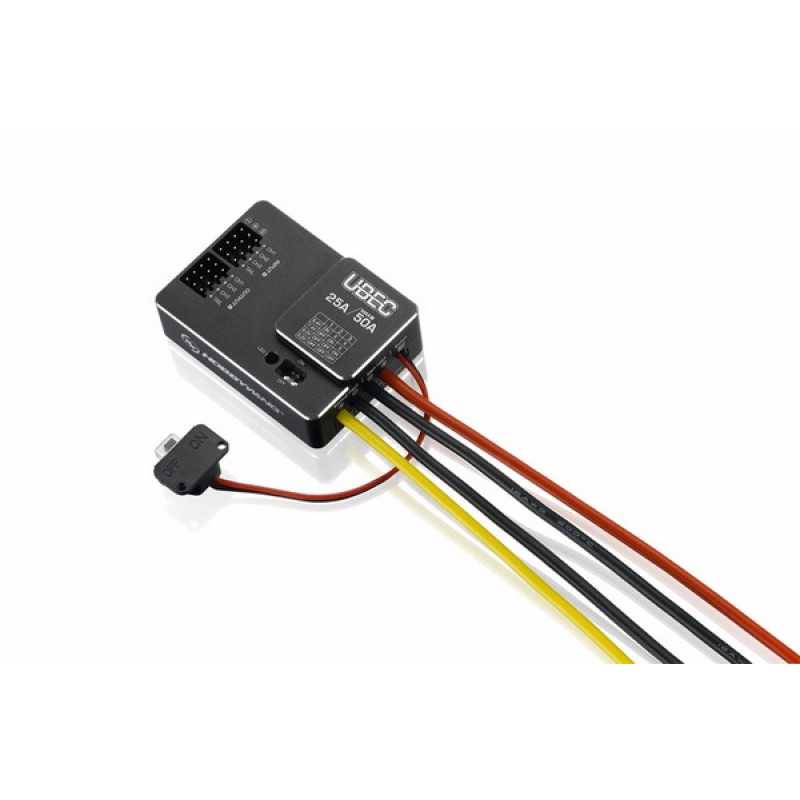

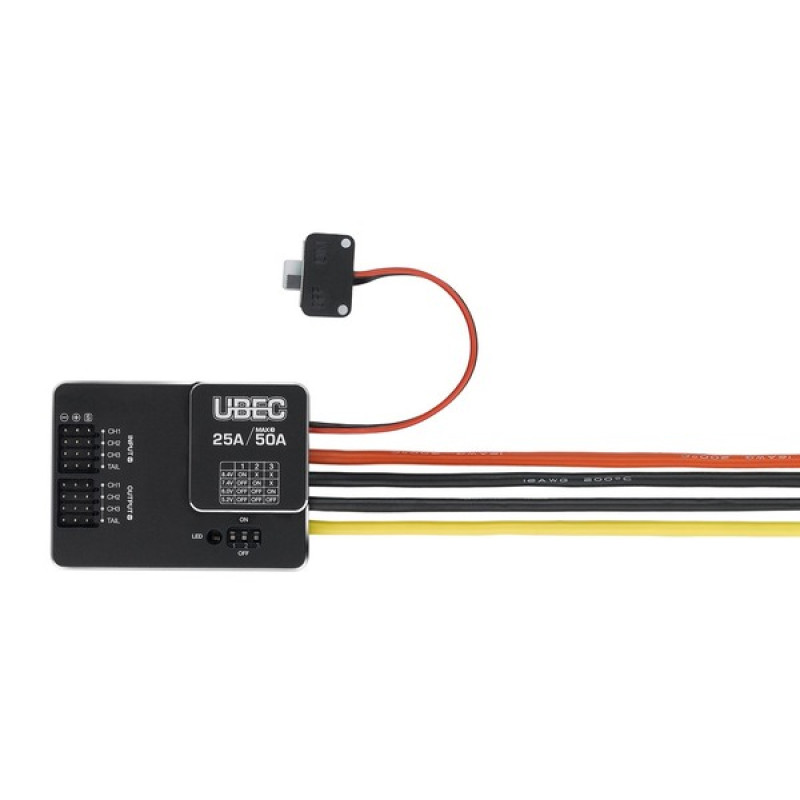

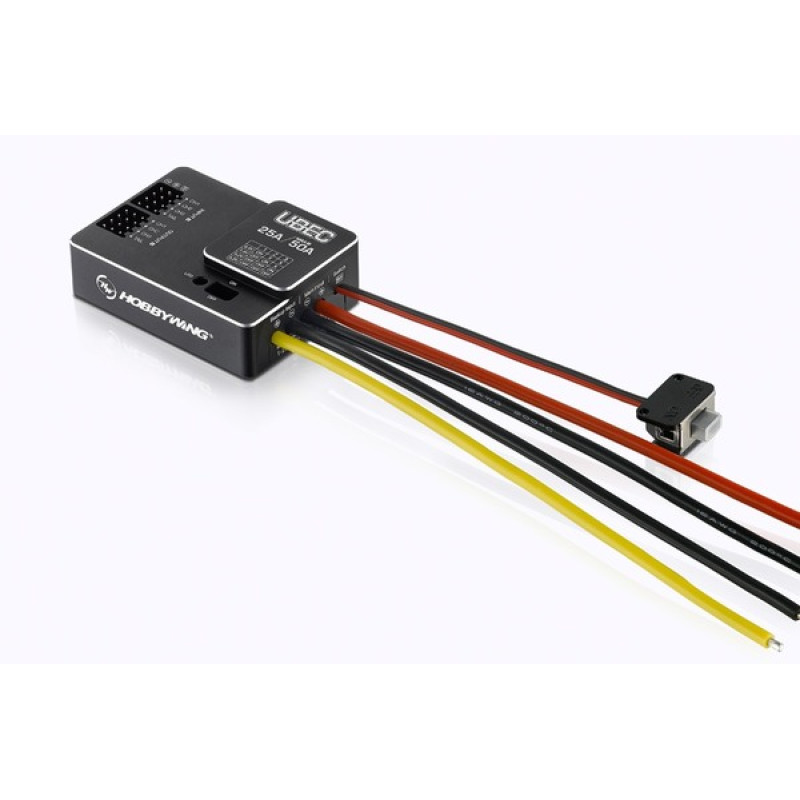

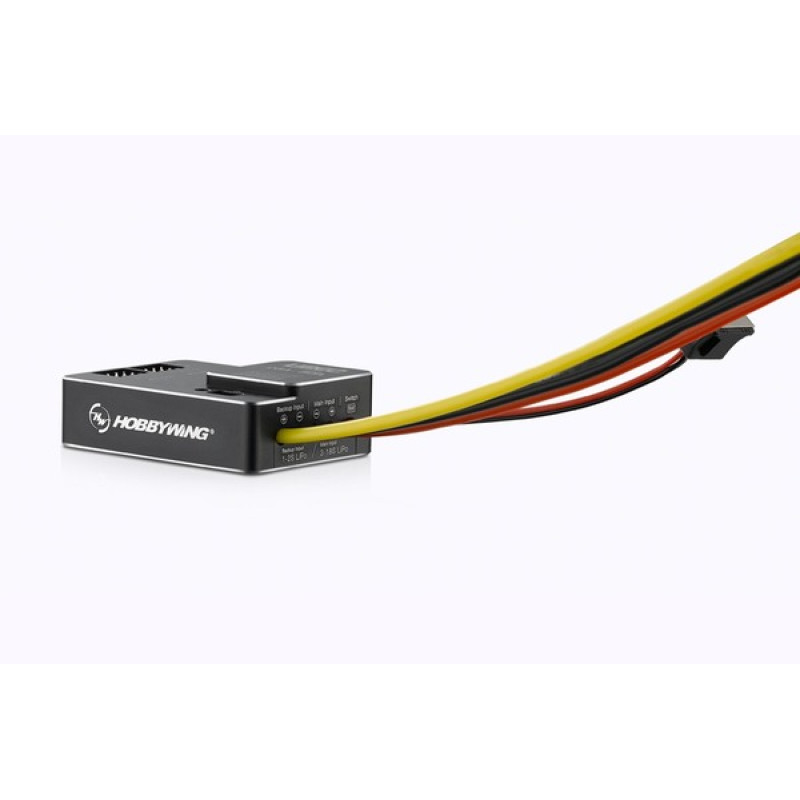

HOBBYWING Power Regulator - 25A HV UBEC from the Hobbywing brand is a highly reliable switching BEC (UBEC) designed for drones and quadcopters that require a stable and protected power supply for flight electronics, controllers, and servos. The model is intended for integration into components of the category: Drones and Quadcopters > Stacks (FC+ESC), and is characterized by compact dimensions and a wide input voltage range for compatibility with various power systems.

Key Features

• Type: Switching BEC
• Power (Input Voltage): 9-80 V
• Output Voltage: 5.2/6/7.4/8.4 V (fixed values with switching capability)
• Rated Current: 25 A — ensures reliable operation with increased power consumption
• Dimensions: 55*40.2*17.6 mm
• Weight: 74.5 g

Package Contents

• Voltage regulator — 1 pc
• Dupont-3pin wire set — 4 pcs
• Ferrite ring — 1 pc

The HOBBYWING 25A HV UBEC is suitable for use with electronic speed controllers (ESCs), flight electronics, flight controllers, and servos. Thanks to its wide input voltage range of 9–80 V, this module is compatible with high-voltage LiPo batteries and multi-battery configurations, making it a versatile solution for models with various power sources.

Switching between fixed output voltages of 5.2/6/7.4/8.4 V allows for easy adaptation of power to specific receivers, servos, or other peripheral devices without additional converters. The rated current of 25 A ensures voltage stability even during sudden consumption spikes, typical during maneuvers or simultaneous connection of several powerful devices.

The Dupont-3pin wire set (4 pcs) simplifies connection to standard flight controller and receiver connectors, and the included ferrite ring helps reduce electromagnetic interference, improving signal stability and reducing the likelihood of noise in the control system.

Model advantages: reliability from the renowned manufacturer Hobbywing, wide input voltage range of 9-80 V, selectable output voltage, compact dimensions of 55*40.2*17.6 mm, and low weight of 74.5 g — an optimal combination of power, mass, and ease of integration into a quadcopter frame or aircraft chassis.

Recommendations before installation: check the compatibility of the selected output voltage with your equipment (receiver module, servos, flight controller), ensure reliable electrical connections and secure mechanical fastening. For additional protection of sensitive electronics, use the ferrite ring to manage wiring and minimize interference.

This power regulator is ideal for amateur and professional models where power stability, compactness, and the ability to quickly adapt the output voltage are important. Brand: Hobbywing. Product name: HOBBYWING Power Regulator - 25A HV UBEC. Category: Drones and Quadcopters > Stacks (FC+ESC).
