EW JAMMER SYNYTSYA 2.0 (2.4 + 5.8 GHz) — infantry version with panel antenna

Brand: SMART BIRDS

The compact electronic warfare jamming system "SYNYTSYA 2.0" is designed to protect an individual soldier or a small group during assault and reconnaissance operations. The device operates in two key frequency bands, 2.4 GHz and 5.8 GHz, and is specifically optimized to counter forced drops and control interception of commercial UAVs from the MAVIC and AUTEL series. Thanks to its small dimensions and built-in 20 Ah battery, the equipment is easy to transport in a backpack or mount on a tripod for quick deployment at a position.

Purpose and limitations

"SYNYTSYA 2.0" is designed for local suppression of communication and control channels of enemy unmanned aerial vehicles in field conditions. Attention: not recommended for use on vehicles.

Key features

• Operating frequency bands: 2.4 GHz and 5.8 GHz;
• Specialization: effective counteraction against drops from MAVIC and AUTEL;
• Mobility: can be mounted on a tripod or carried in a backpack;
• Effective range: 50 to 200 m;
• Power supply: built-in 20 Ah battery or option to connect external power;

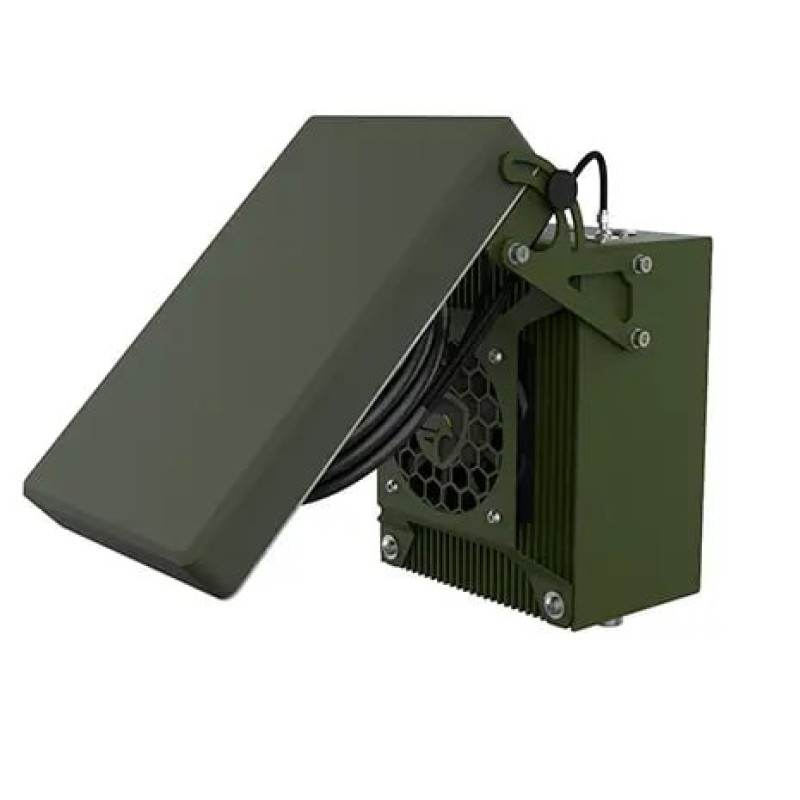

• Version with panel antenna for increased directivity and better effectiveness against drops.

Dimensions, weight, and construction

• Casing: metal, IP65 protection rating — ensures resistance to external conditions;
• Cooling: passive, which increases reliability in field conditions;
• Dimensions for 1 channel: 200 mm (490 mm with antennas) × 150 mm × 100 mm;
• Weight for 1 channel: 2 kg;
• Dimensions for up to 3 channels configuration: 240 mm (540 mm with antennas) × 220 mm × 150 mm;
• Weight for up to 3 channels configuration: 4.5 kg.

Additional options and cost

• "Backpack" option — 5,000 UAH;
• Option to replace battery with 8 Ah — 5,500 UAH;
• Military aluminum tripod — 5,000 UAH.

"SYNYTSYA 2.0" is ideal for operational units, rapid response teams, and reconnaissance groups that require a mobile and reliable means for local suppression of enemy UAV communication and control channels. Selective jamming in the 2.4 GHz and 5.8 GHz frequency bands makes it effective against standard commercial UAV models. The metal casing with IP65 protection rating and passive cooling guarantee operational reliability in field conditions.

Thanks to its variable configurations (1 channel or up to 3 channels), power options from a built-in 20 Ah battery or external source, and options for carrying or mounting, the system is a flexible solution for tactical tasks. Product type: EW jammers. Category: EW jammers > Trench EW jammers.

Product ID: 2618. Manufacturer: SMART BIRDS.
