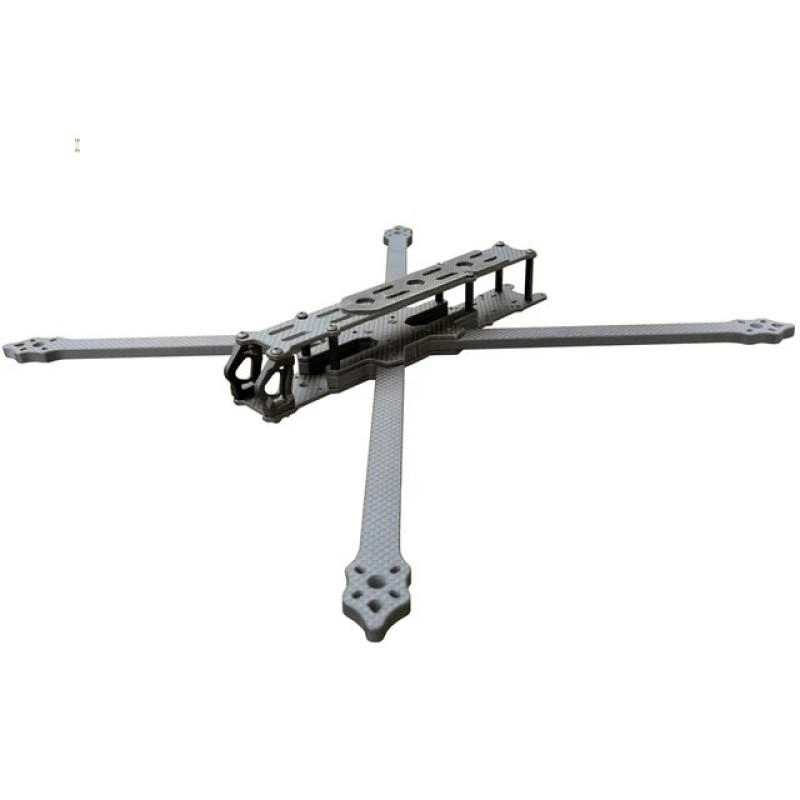

Mitoot XL10 V6 Carbon Frame — 420 mm (10")
Product Description: The Mitoot XL10 V6 Carbon Frame is a durable and lightweight 10-inch structure with a high degree of protection and thoughtful ergonomics, designed for FPV flights with an action camera and a large payload capacity. The frame is available in "with 3D print" and "no 3D print" options, allowing you to choose the configuration that suits your needs. Brand: Mitoot.
Key Features
- Compatible with DJI O3 Air Unit, CADDX Vista, and BLITZ Whoop 1.6W VTX.
- Full 3K carbon fiber construction: lightweight material with high rigidity and durability.
- Popular True-X configuration, ensuring flight stability and versatility.
- 7mm arm thickness for increased strength and stability during aggressive maneuvers.
- Supports installation of GoPro (5–11), DJI Action, Sony ZV-E10 cameras.
- Maximum payload of approximately 1.5–2.5 kg when using an iFlight Xing2 3110 motor.
- 360° TPU protection and practical antenna mounts ensure reliability and equipment protection.
Specifications
| Parameter | Value |
|---|---|
| Model | XL10 V6 |
| Product Name | 10-inch Carbon Frame with 420mm Wheelbase |
| Wheelbase | 420 mm |
| Frame Size (L×W×H) | 297×297×35 mm |
| Arm Thickness | 7 mm |
| Bottom Plate Thickness | 3 mm |
| Top Plate Thickness | 3 mm |
| Motor Mount | 16×16 mm / 19×19 mm |
| VTX Mount | 20×20 Φ2 mm / 25.5×25.5 Φ2 mm / 30.5×30.5 Φ3 mm |
| Weight | 345 ± 5 grams |
Package Contents
- 1× XL10 V6 Frame
- 1× Screw Set
- 1× Anti-slip Battery Pad
- 2× Battery Straps (color shipped randomly)
Assembly and Application Details: The frame is designed for convenient mounting of FPV components: flight controller boards and ESCs are placed inside between the 3mm thick top and bottom plates, while the thick 7mm arms add rigidity when installing large motors and flying with a payload. The True-X configuration allows for easy adaptation to various propeller and motor sets. Integrated VTX mounts and 360° TPU protection reduce the risk of damage to antennas and electronics.
Camera Compatibility and Payload: The frame is adapted for GoPro 5/6/7/8/9/10/11, DJI Action, and Sony ZV-E10, making it an excellent choice for aerial photography and FPV video recording. When using powerful motors like the iFlight Xing2 3110, the frame can carry a payload of approximately 1.5–2.5 kg, depending on the component configuration.
Other technical details: the 3K carbon construction provides an optimal balance between weight and rigidity; options with or without additional 3D-printed mounts are available for adaptation to individual assembly needs.
