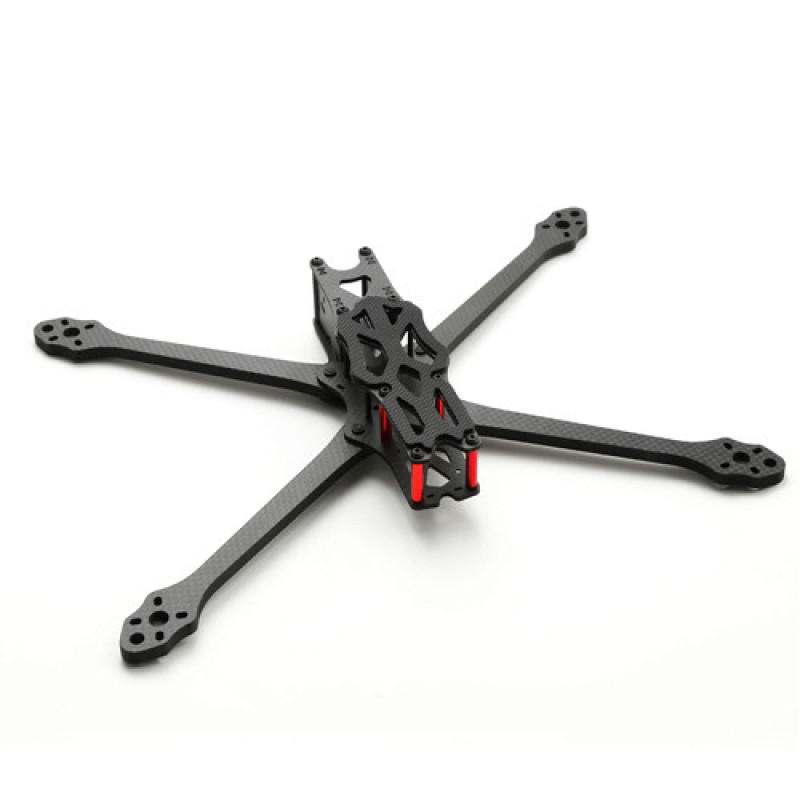

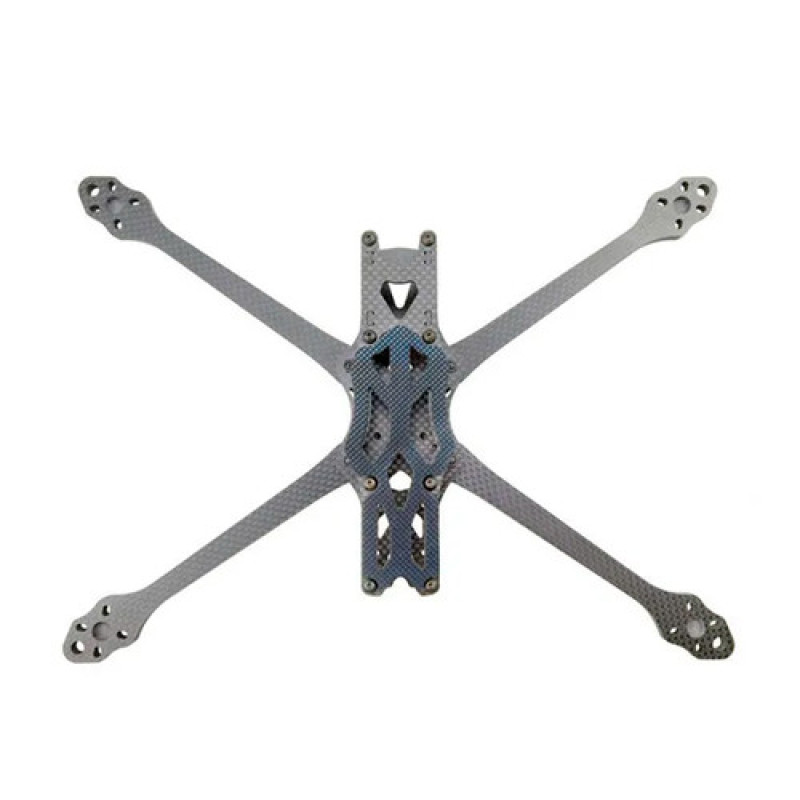

The frame is the main and load-bearing element of the quadcopter's structure, to which all other components are attached. The APEX 7" carbon frame is distinguished by its lightness, strength, and durability. It allows you to assemble an FPV drone with excellent diagonal stiffness along the arms, which in turn ensures high-quality flight.

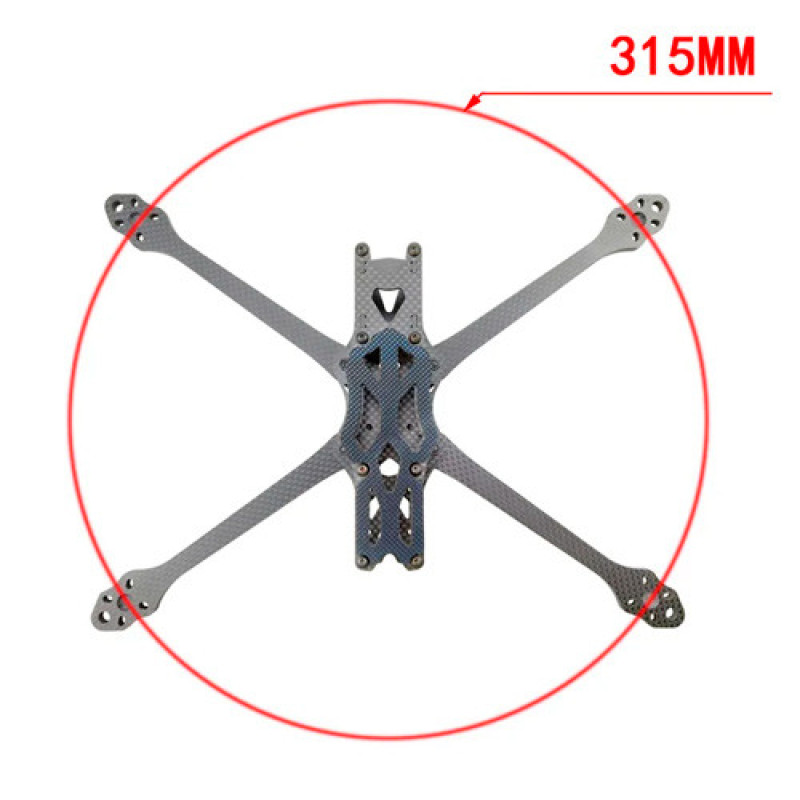

Frame diagonal: 315 mm
Arm length: 170 mm
Arm thickness: 5.5 mm
Top plate thickness: 2 mm
Bottom plate thickness: 2.5 mm
Side plate thickness: 2 mm
Camera mounting size: 22 mm

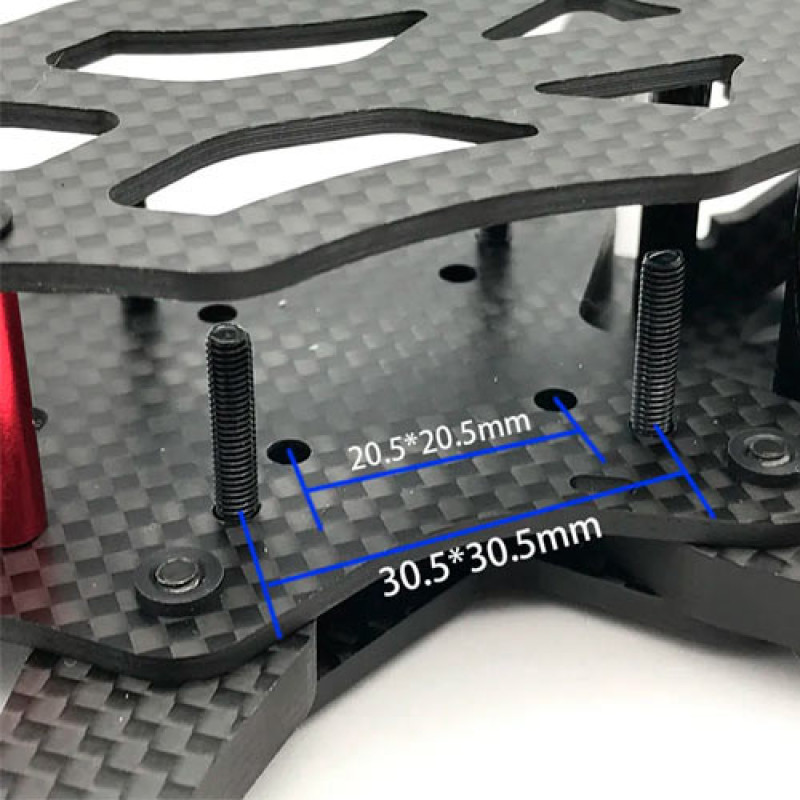

Mounting holes: 20x20 mm / 30.5x30.5 mm
VTX mounting hole: 20x20 mm
Motor mounting hole: 16x16 / 19x19 mm
Frame type: X-type
Material: Carbon
Weight (with all parts): 155 g
Recommendations:
Flight controller: F3 / F4 / F7
Motors: 2204 / 2205 / 2306 / 2307
ESC: 20 – 50 A
Propeller: 7"
Battery: 3-4S 1500-2200 mAh
Camera size: 22 mm

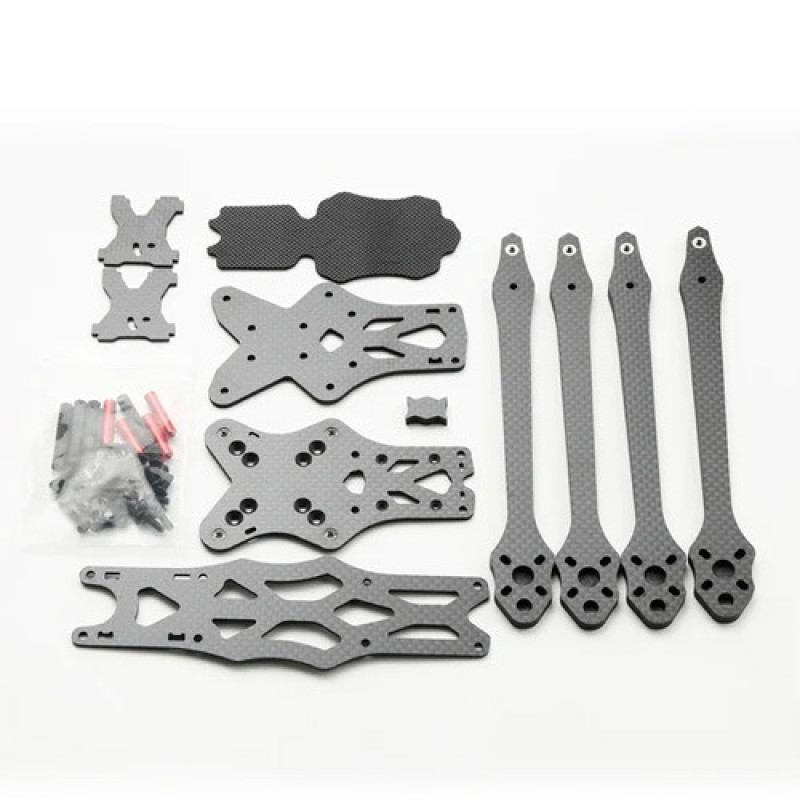

Includes standoffs (20x5 mm – red, 28x5 mm – black) and bolts, camera mount
Frame diagonal: 315 mm
Arm length: 170 mm
Arm thickness: 5.5 mm
Top plate thickness: 2 mm
Bottom plate thickness: 2.5 mm
Side plate thickness: 2 mm
Camera mounting size: 22 mm
Mounting holes: 20x20 mm / 30.5x30.5 mm
VTX mounting hole: 20x20 mm
Motor mounting hole: 16x16 / 19x19 mm
Frame type: X-type
Material: Carbon
Weight (with all parts): 155 g
Recommendations:
Flight controller: F3 / F4 / F7
Motors: 2204 / 2205 / 2306 / 2307
ESC: 20 – 50 A
Propeller: 7"
Battery: 3-4S 1500-2200 mAh
Camera size: 22 mm
Includes standoffs (20x5 mm – red, 28x5 mm – black) and bolts, camera mount
