Product Code: 35318-999
19 000 грн.
Buy this product in 1 click:
Main specifications
Battery capacity: 3000 mAh
Detection, m: 1,500 - 15,000 m
Indication: signal spectrum on display
Length: 20 cm
Main Frequencies: 400–6200 MHz
All specifications
We will deliver this product:
Payment
Description

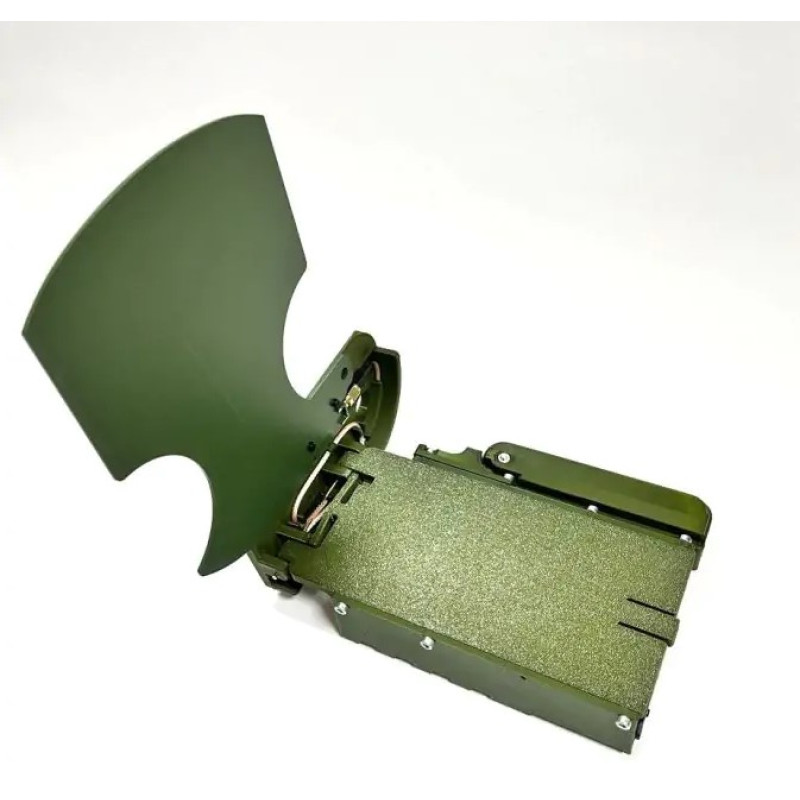

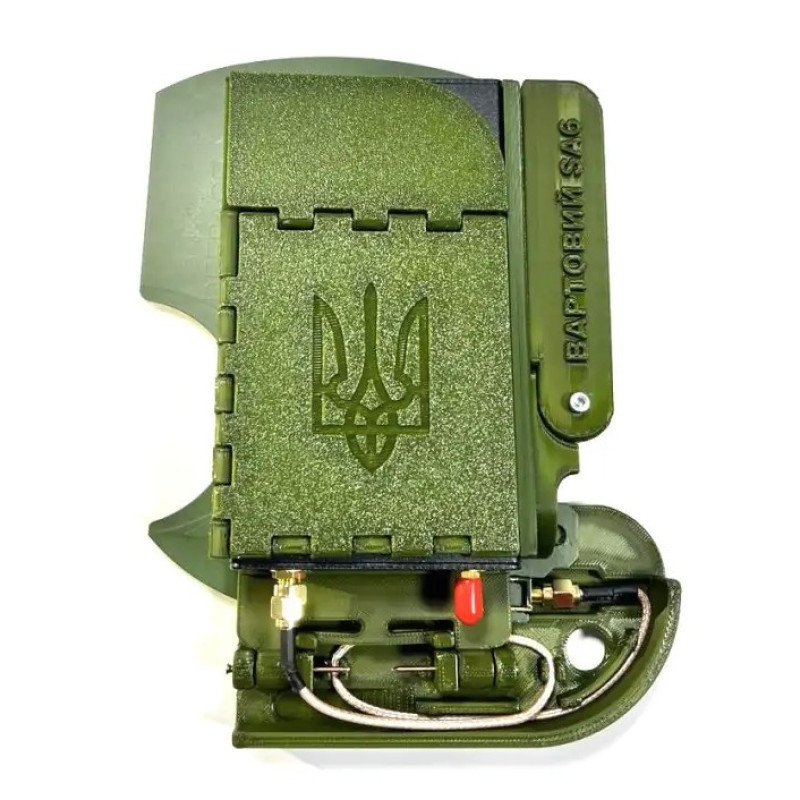

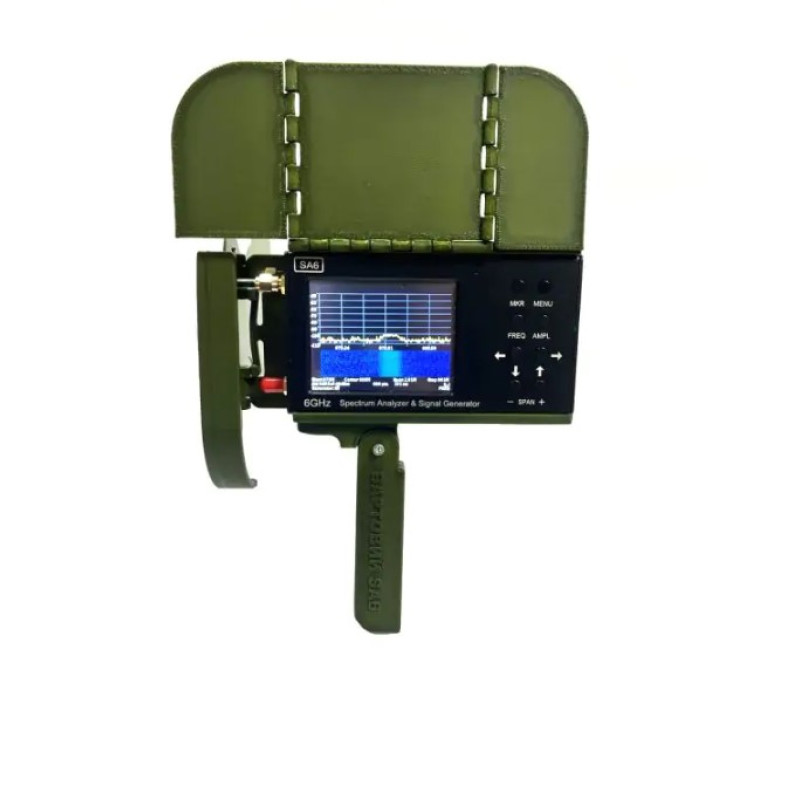

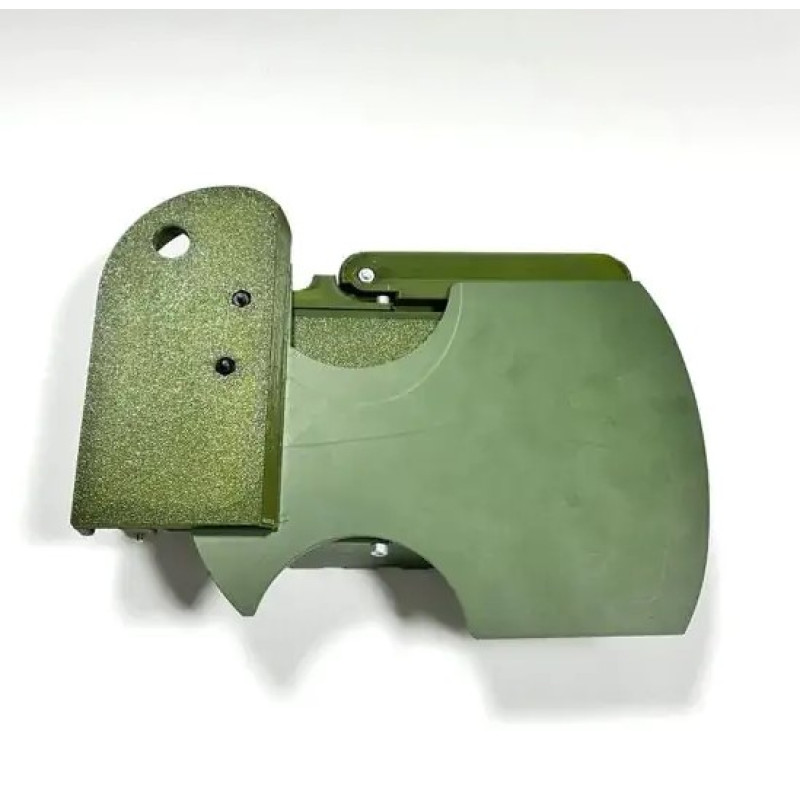

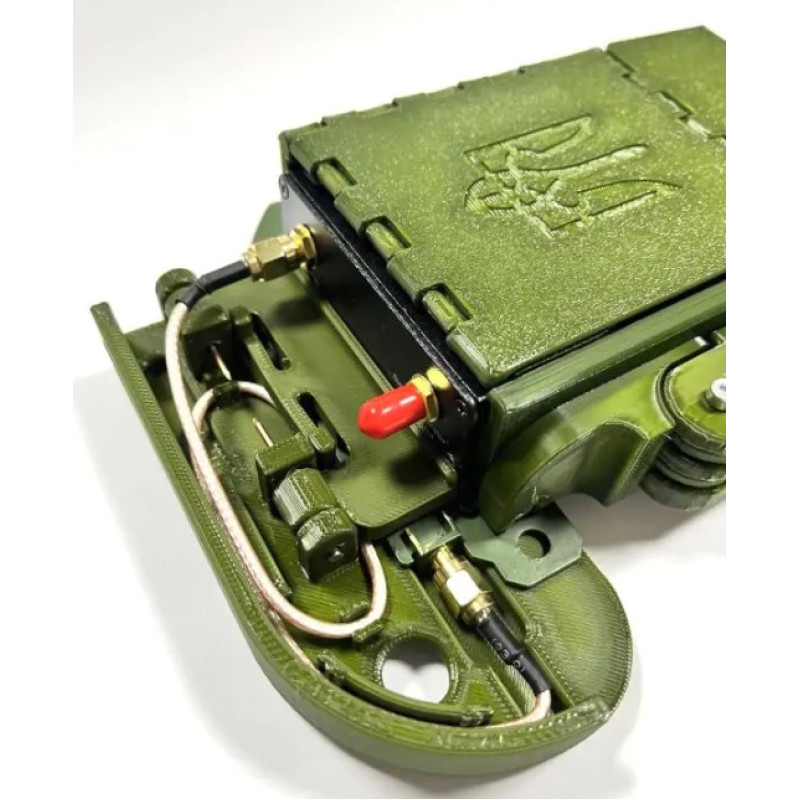

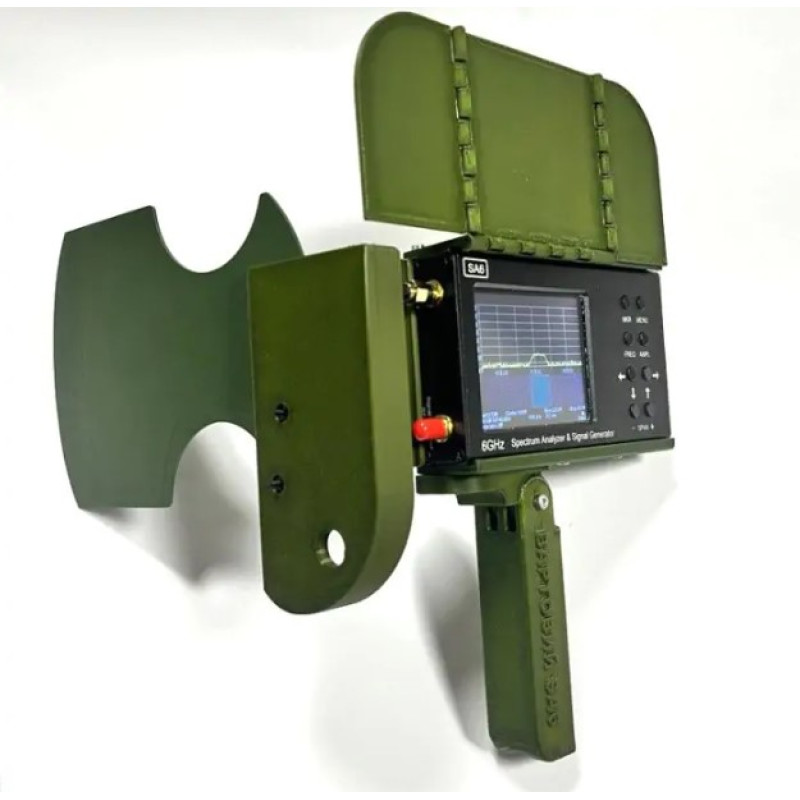

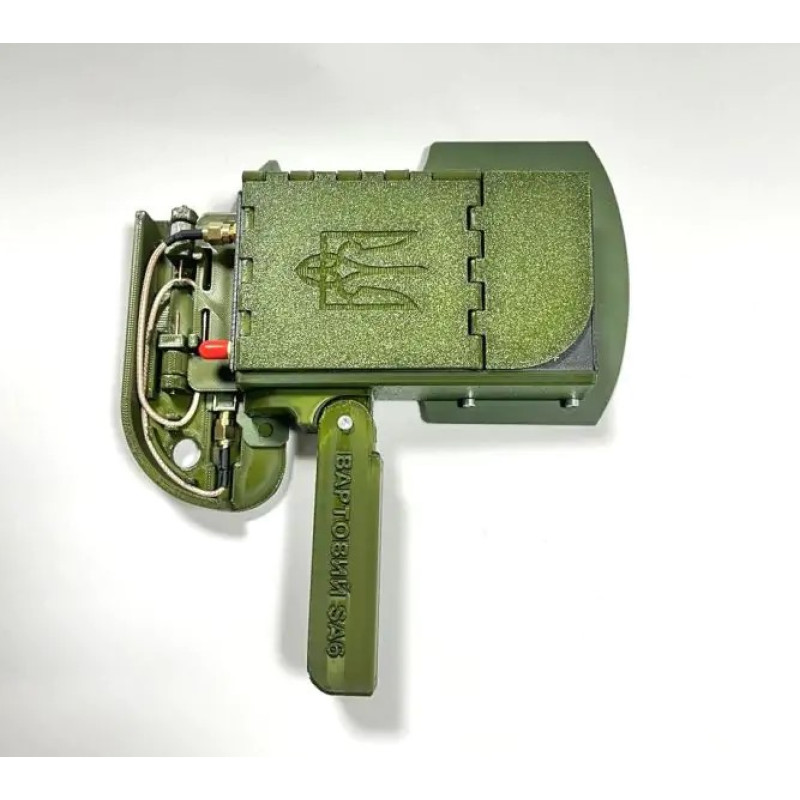

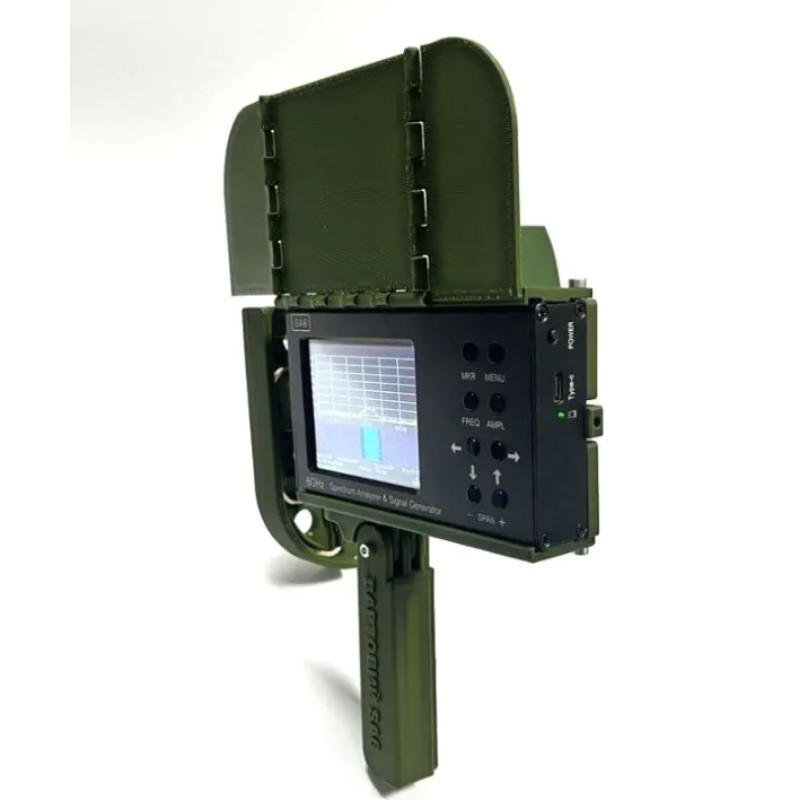

Vartovyi SA6 Drone Detector (400 MHz to 6200 MHz) ODV — a portable panoramic spectrum analyzer with a built-in signal generator. The device is designed to detect enemy UAVs, EW equipment, two-way radios, radio stations, and mobile phones. Vartovyi SA6 from manufacturer ODV analyzes signal spectra in the frequency range from 400 MHz to 6200 MHz, allowing the determination of the amplitude and frequency of signal spectral components. The analyzer displays signal spectra of all common technologies: Wi-Fi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLONASS, and others.

Detection Capabilities

Allows detection of the following objects:

  • Stationary EW: 15 km
  • Mavic 3 (or similar): 3 km
  • Radio stations, mobile EW: 2.5-3 km
  • Mobile phones: 1.5 km

Power and Battery Life

Power:

  • Charging ports: USB-C (5 volts)
  • Battery life from built-in battery: up to 60 min, or up to 24 hours with stationary power

Package Contents

Package Contents:

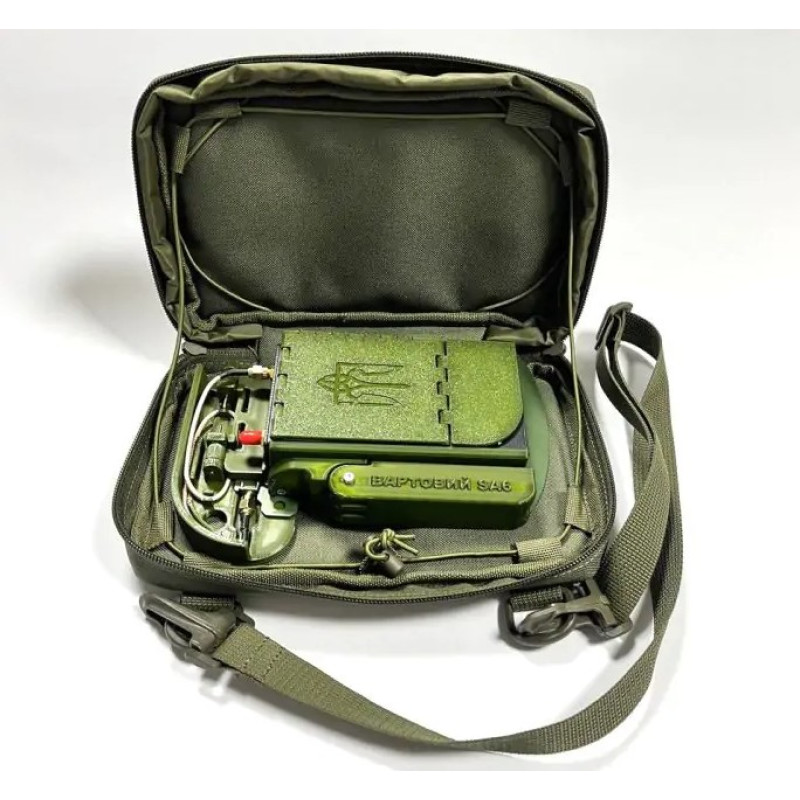

  • Spectrum analyzer
  • Measuring antenna (up to 10 GHz)
  • Resistive stylus

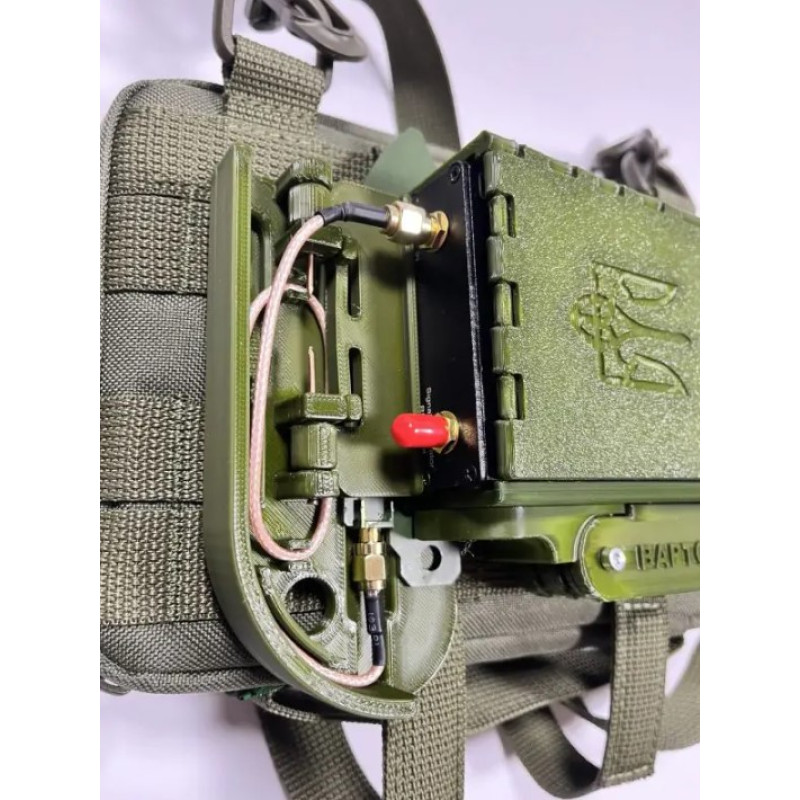

  • SMA 30 cm RG316 extension cable for antenna connection
  • SMA-KK adapter
  • USB Type-C cable - 95 cm

Specifications

  • Range of application: up to 15 km
  • Operating frequency range: 400 MHz to 6200 MHz
  • Deployment time: up to 1 min.
  • Battery life: up to 60 min.
  • Detection distance from ground: mobile phones – 1.5 km, radio stations and mobile EW – 2.5 km, drones – 3 km, stationary EW – 15 km
  • Dimensions when folded (cm): 20x15x3.5
  • Total weight (g): 410
  • Power: power consumption in off state 6 W, power consumption in on state 10 W
  • Battery: built-in 3000 mAh
  • Antenna horizontal angle: 45°
  • Antenna vertical angle: 45°

Device advantages: compactness and portability, quick deployment (up to 1 minute), wide frequency range from 400 MHz to 6200 MHz, ability to detect both low-observable mobile devices and distant stationary interference sources. The device is effective for operational reconnaissance, perimeter security, and countering unauthorized UAVs.

Manufacturer: ODV. Product type: Drone Detector.

Other products in this category here Drone Detector

ODV Drone Detectors, Drone detectors, frequency range 1-1000 MHz, Drone detectors, frequency range 1001-2000 MHz, Drone detectors, frequency range 2001-3000 MHz, Drone detectors, frequency range 3001-4000 MHz, Drone detectors, frequency range 4001-5000 MHz, Drone detectors, frequency range 5001-6000 MHz, Drone detectors, frequency range 6001-7000 MHz, Frequency Spectrum Analyzers, Drone Detectors 0.9 GHz, Drone Detectors 1.2 GHz / 1.3 GHz, 2.4 GHz Drone Detectors, Drone Detectors 3.3 GHz, Drone Detectors 4.9 GHz, 5.8 GHz Drone Detectors, Single-band drone detectors, Drone detectors with screen, Drone detectors with icon, Drone detectors with up to 1 hour of battery life

Specifications
Battery capacity 3000 mAh
Indication signal spectrum on display
Length 20 cm
Operating time from 60 min to 24 h
Power Supply built-in battery, USB-C
Weight, g 410 g
Width 15 cm
Detectors
Detection, m 1,500 - 15,000 m
Main Frequencies 400–6200 MHz
Number of Bands 1
Scanning speed up to 1 min
