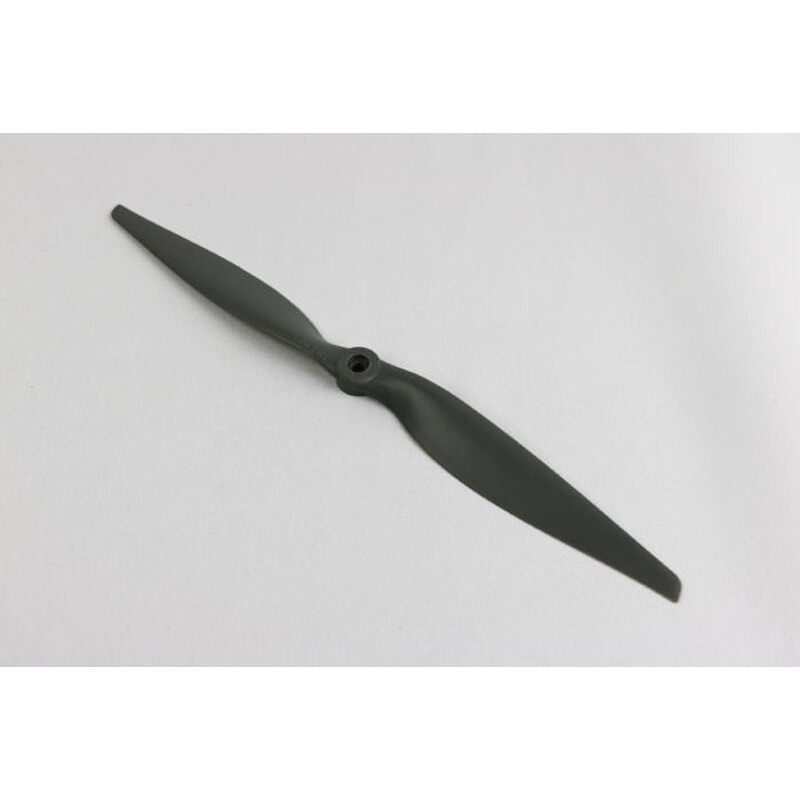

APC Nylon Glass Fiber Electric Propeller 13x6.5E (1 pc CCW) — APC
The APC Nylon Glass Fiber Electric Propeller 13×6.5E is a high-performance component from the APC brand, designed specifically for electric aircraft and models. This model combines lightweight construction, enhanced strength due to fiberglass reinforcement, and an optimized pitch for efficient thrust generation, making it an excellent choice for both amateur and professional applications. The propeller provides a harmonious balance between weight, blade stiffness, and aerodynamic efficiency, contributing to stable and economical flight.
| Specifications | Value |
|---|---|
| Material | Polyamide |
| Size | 1365″ |
| Diameter | 13″ |
| Pitch | 6.5″ |
| Propeller mounting | Smooth shaft 6.35 mm |
| Number of blades | 2 |
| Folding blades | No |
| Rotation direction | CCW (counter-clockwise) |
| Hub thickness | 10.414 mm |
| Hub diameter | 20.32 mm |
| Purpose | For aircraft; For electric motors |
Description and advantages
This Nylon Glass Fiber series propeller is designed for those who value reliability and stable thrust. The material — polyamide reinforced with fiberglass — ensures resistance to loads and impacts while maintaining minimal weight. The 13″ diameter and 6.5″ pitch (size 1365″) provide balanced engine operation, allowing for optimal RPM and efficient aerodynamic interaction. The two-blade non-folding design is suitable for a wide range of aircraft models and electric motors where simplicity and reliability are important.
Technical details
The propeller has a mounting for a smooth shaft with a diameter of 6.35 mm, making it compatible with typical electric motors for radio-controlled aircraft. The hub thickness is 10.414 mm, and the hub diameter is 20.32 mm; these parameters are important for precise selection of adapters and inserts for tight and secure mounting. The CCW (counter-clockwise) rotation direction indicates the direction in which the propeller generates thrust and is important when configuring multi-motor systems to avoid undesirable torque moments.
Package contents
- Propeller – 1 pc
- Insert set – 1 pc
- Instruction – memo – 1 pc
The propeller is suitable for aircraft models and electric motors that require a reliable and efficient solution for thrust generation. Thanks to the combination of materials and design characteristics, the APC 13x6.5E maintains good performance in various flight modes and is an excellent choice for replacing a worn or damaged propeller, as well as for initial model outfitting.
Brand: APC. Product type: Drones & Quadcopters > Propellers.
