HGLRC Zeus F748 Stack - F722 FC + 48A 3-6S 4-in-1 BLHeli_S ESC Flight Controller

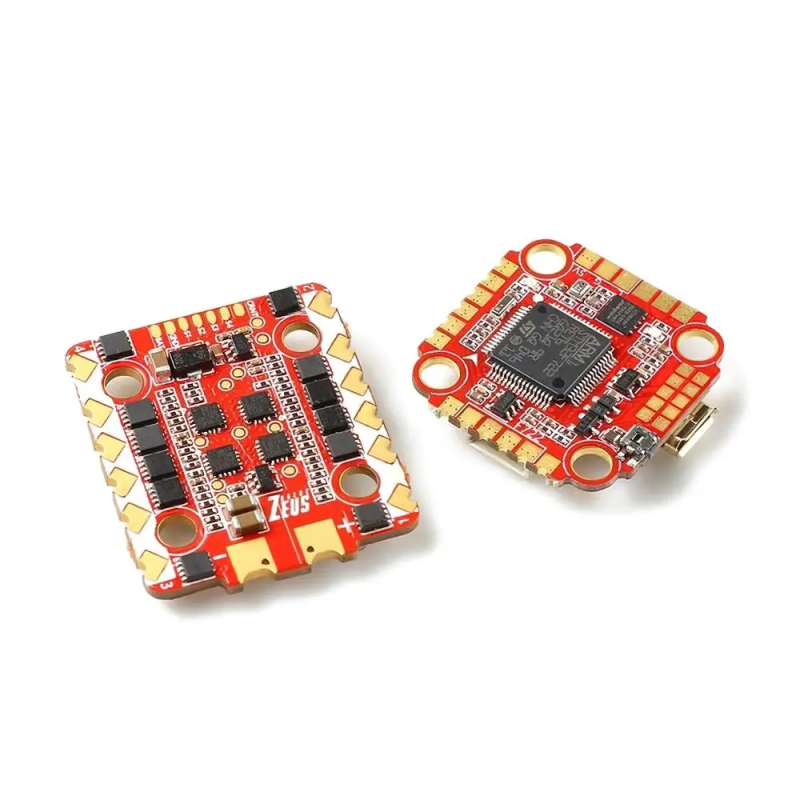

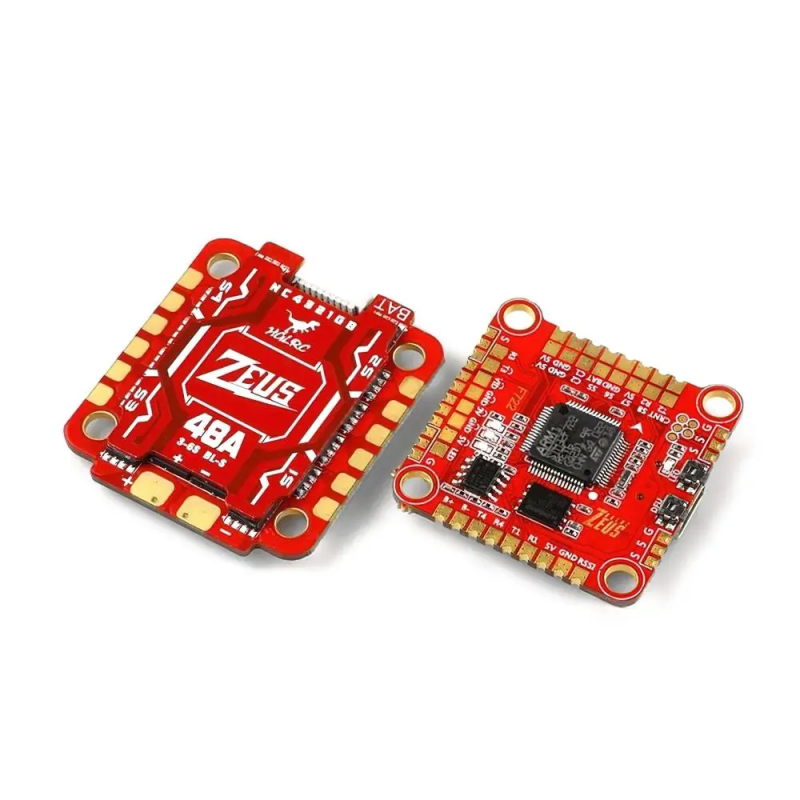

The HGLRC Zeus F748 Stack from the HGLRC brand is a full-featured FC+ESC stack in the "Drones & Quadcopters > Stacks (FC+ESC)" category, designed for fast racing and freestyle drones. The kit combines a powerful F722 flight controller and a 48A 3-6S 4-in-1 BLHeli_S ESC, compatible with frames ranging from 100mm to 450mm. The stack has a 30.5×30.5mm mounting pattern, supports 3-6S LiPo batteries, features an integrated barometer and a 16M black box for flight log storage; it also includes connectors for DJI, LED, and GPS.

Features

• Integrated LED controller: quick LED programming with one button and control via Betaflight.
• Direct solder pads: pads for direct soldering of XM+, NANO receivers and compatibility with TBS Nano VTX for a compact and reliable build.
• Quick connection: dedicated connectors for DJI, LED, and GPS simplify the installation of additional modules.
• Powerful BEC outputs: stable 9V/2A and 5V/3A outputs for powering peripherals and receiver.
• Integrated barometer and 16M black box: telemetry collection and the ability to analyze flight logs for PID optimization and quadcopter settings.
• Additional soldering options: redundant and extended soldering points, built-in ammeter, current sensor, and TVS diode for increased electrical system reliability.

Specifications

Flight Controller (F722 FC)

• Name: Zeus F722 Flight Controller
• Firmware: BF HGLRCF722(HGLR)
• Application: for 100mm-450mm frames
• Mounting hole size: 30.5×30.5 mm (M3)
• CPU: STM32F722 RET6
• Gyroscope: MPU6000
• Barometer: BMP280 (I2C)
• Integrated LED controller: yes, with Betaflight and button control
• Weight: 8.1g
• Size: 37.3×37.3 mm
• Black box: 16M
• Number of UART ports: 5
• BEC outputs: 9V/2A, 5V/3A
• Input voltage: 3-6S LiPo
• Features: built-in Betaflight OSD for PID tuning; LED control via BF/button; extended soldering and telemetry points.

Electronic Speed Controller (48A 4-in-1 ESC)

• Type: 48A 3-6S 4-in-1 BLHeli_S ESC
• Supported modes: DShot600/300/150/Oneshot125/42, MultiShot
• Mounting hole size: 30.5×30.5 mm (M3)
• Peak current: 55A (10s)
• Input voltage: 3-6S LiPo
• Continuous current: 48A
• Size: 45×40 mm
• Weight: 18.3g

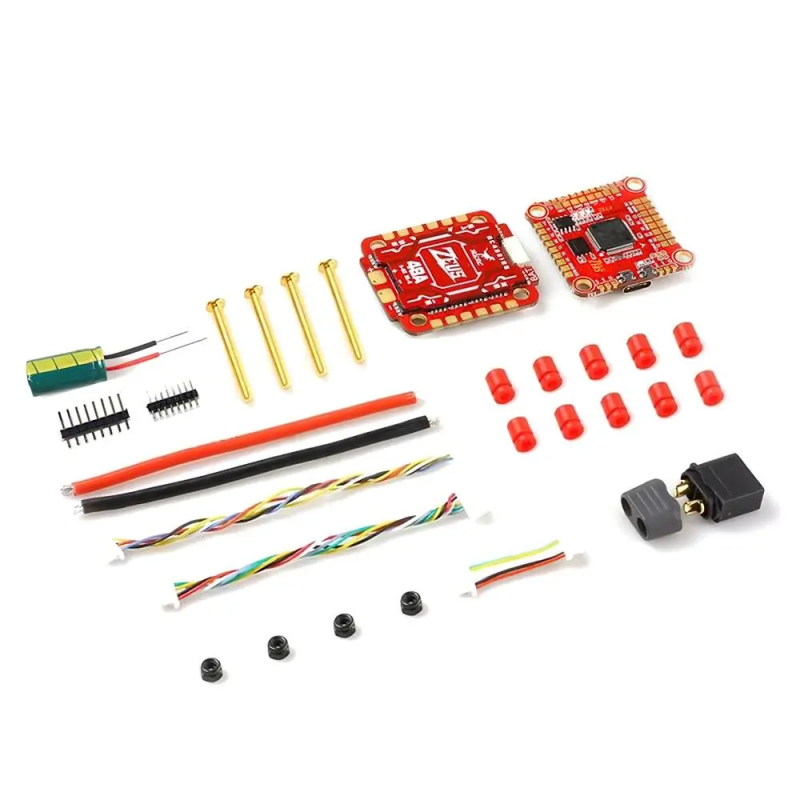

Package Contents

• HGLRC Zeus F728 Stack – F722 FC + 28A 3-6S 4-in-1 BLHeli_S ESC (list in the kit is fixed in the original configuration)
• DJI AIR UNIT PORT Cable (90mm)
• 8 M3 rubber dampers (red)
• SH1.0 8PIN Cable (60mm)
• Connection cable
• Mounting kit
• Capacitor

Instructions: an air manual (instruction) is included in the delivery package for HGLRC Zeus F722 FC.

Additional information: the stack provides high power and stability for aggressive flight profiles, with flexible points for configuring and connecting modules (GPS, LED, DJI). Built-in protective elements and a TVS diode increase the reliability of the electronics during voltage spikes and pulse loads. The 30.5×30.5 mm mounting hole dimensions allow easy integration of the stack into most racing and freestyle frames, and the presence of 5 UART ports enables connecting multiple peripherals simultaneously.

Manufacturer information: HGLRC — a well-known brand in FPV components, specializing in high-performance stack solutions for drones.
