Sunhans SH58Gi4000P 4W 5.8GHz Signal Booster, 5.0-5.8 GHz 4000 mW 36 dBm

Description

The Sunhans SH58Gi4000P is a professional WiFi booster designed to operate in the 5.0–5.875 GHz range. The device provides an output power of 4000 mW (36 dBm) and is capable of stably amplifying the signal in a bidirectional mode, with adaptive transmission power adjustment. This prevents saturation and circuit overload when the input signal level changes, maintaining communication quality under unstable reception conditions. Its compact size (9.7 x 6.4 x 1.7 cm) and light weight (135 g) make it convenient for mounting on vehicles, drones, or in confined spaces. Any 5 GHz antenna with an SMA-Male connector can be connected to the booster. The antenna coverage area can be increased by 200% to 400%.

Compatibility and Applications

The device is suitable for signal amplification in the following solutions:

• Routers
• Access points
• IP cameras
• Video transmitters
• Professional cameras
• Professional camcorders
• Helicopters, airplanes, and automobiles

Specifications

• Operating Range: 5000~5875 MHz
• Channel Width: 20 MHz, 40 MHz, and 80 MHz
• Supported Standards: IEEE 802.11a/n
• Operating Mode: Bidirectional, half-duplex, time-division duplex
• Connector Type: To radio SMA female (hole inside); to antenna RP-SMA male (pin inside)
• Output Power: 4000 mW (36 dBm)
• Input Power: 0 ~ 20 dBm
• Transmit Gain: 18 ~ 20 dB
• Receiver Gain: 11 ~ 14 dB
• Noise Figure: ≤3.5 dB typical
• Frequency Response: ±1 dB over operating range
• Power Adapter: 12V/2A DC, 100~240V
• Operating Temperature: -20°C to +70°C
• Operating Humidity: up to 75% relative humidity
• Housing Material: Die-cast aluminum
• LED Indicator: Power status LED and activity status LED
• Booster Weight: 135 g
• Booster Size: 9.7 x 6.4 x 1.7 cm
• Package Weight: 420 g
• Package Size: 21.3 x 13.5 x 5 cm

Features

The device implements adaptive power management, ensuring smooth amplification without sharp peaks and output signal overloads. Thanks to its die-cast aluminum housing and wide operating temperature range (from -20°C to +70°C), the SH58Gi4000P withstands harsh operating conditions, including use in vehicles and field environments. Integrated indicators facilitate diagnostics and monitoring of the device's power and activity status.

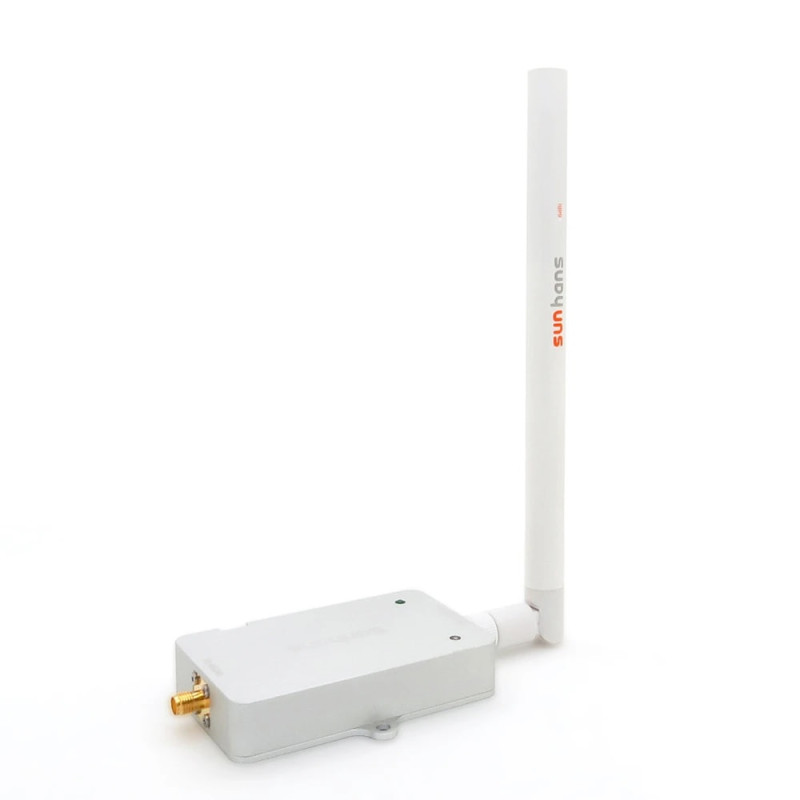

Package Contents

• 1 x SH58Gi4000
• 1 x RG316 cable with SMA connectors (20 cm)
• 1 x 6dBi omni antenna
• 1 x power supply
• 1 x user manual

Brand: Sunhans

Category: Drones & Quadcopters > Drone Components > Drone Accessories

The Sunhans SH58Gi4000P is a reliable technical solution for extending the coverage area of 5.8 GHz networks and improving communication quality in professional and semi-professional video surveillance, video transmission, and wireless communication systems in vehicles. Thanks to its high output power, low noise figure, and durable housing, this booster is suitable for tasks requiring stable and long-range communication.
