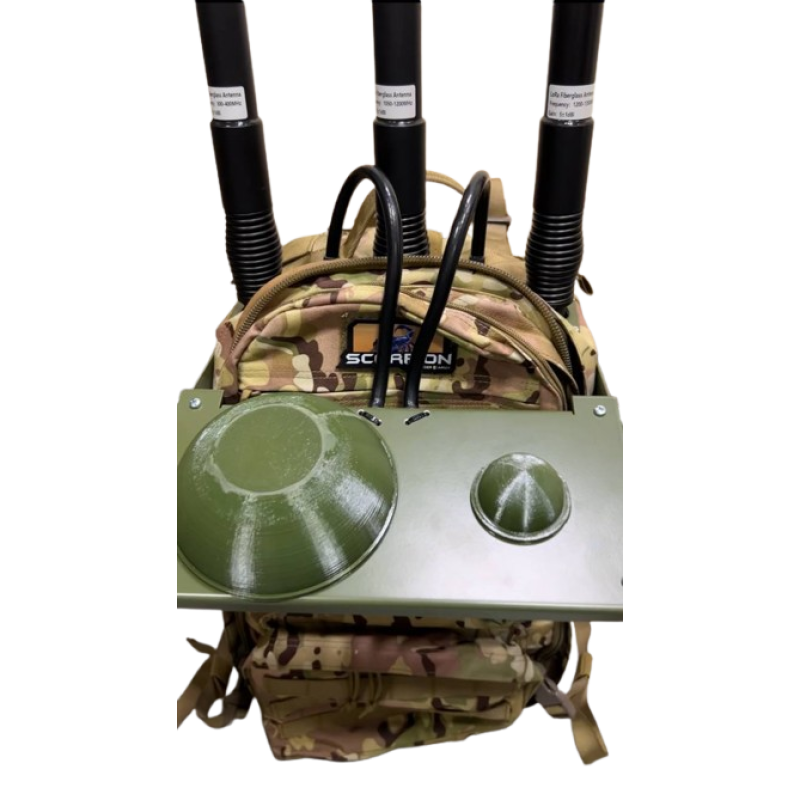

The «SCORPION» portable EW backpack is a mobile wearable electronic warfare system (category: EW Backpacks / Portable EW Backpacks), designed for individual protection of soldiers against FPV drones and kamikaze drones. The basic configuration operates in 3 channels at 50 W each with a total power of 150 W. All key elements have IP68 protection, making the system fully resistant to dust and moisture. The kit includes a durable carrying backpack, a 30,000 mAh battery, a 10 A charger, and a protective head buff against radiation as a gift. A circulator protects the modules from failure if antennas detach.

Key Features

• Name: «SCORPION» Portable EW Backpack
• Product Type: EW Backpacks (portable wearable version)
• Number of Channels (basic): 3 channels with expansion capability up to 9
• Channel Power: 50 W (standard module) / 60–100 W (LoRa modules)
• Total Power: 150 W (basic 3 × 50 W configuration)
• Effective Operating Range: 50–400 m
• Cooling: active + passive
• Antennas: spring omnidirectional 32×60, gain 6 dBi (IP68 protection)
• Module Protection: circulator against failure if antennas detach
• Housing and Electronics Protection: IP68
• Weight of Assembled Backpack: ~6.5 kg + 3 kg battery

Available Frequency Bands for 50 W Modules (selectable)

• 200–300 MHz
• 300–400 MHz
• 400–500 MHz
• 500–610 MHz
• 610–720 MHz
• 720–840 MHz
• 840–950 MHz
• 950–1050 MHz
• 1050–1200 MHz
• 1200–1350 MHz
• 2.4 GHz (Mavic) — optional
• 5.2 GHz (Autel) — optional
• 5.8 GHz (video) — optional

100 W LoRa Modules (for 3 bands from one antenna)

LoRa modules have increased noise density and cover 3 bands from a single module and a single antenna. 3 configurations are available:

• 100–400 MHz (60 W): 100–200 / 200–300 / 300–400 MHz
• 420–720 MHz (100 W): 420–500 / 500–610 / 610–720 MHz
• 720–1020 MHz (100 W): 720–840 / 840–950 / 950–1020 MHz

Possible combinations of standard 50 W modules with LoRa modules: 4+1 LoRa = 7 channels, 2+2 LoRa = 8 channels, 1+3 LoRa = 10–15 channels. In a two-device setup, an 11-channel EW system from 300 to 1350 MHz can be implemented with the addition of 2.4 and 5.8 GHz. By default, all channels are activated simultaneously — relays can be added for individual frequency control if desired.

Autonomy

• Battery: 30,000 mAh (included)
• Operating Time with 1 Battery: ~1 hour (for 5–6 channel configuration; longer for 3 channels)
• Operating Time with 2 Batteries: ~2 hours
• Charger: 10 A (included)
• Battery Charge Sensor: built-in

Advantages

• Full IP68 Protection: fans, converter, modules, relays — all components are protected from dust and water, ensuring full operation in rain and snow.
• Built-in Circulator: protects the module from failure if antennas detach (unlike unprotected Chinese counterparts).
• Powerful Spring Antennas: 32×60 at 6 dBi, high radiation efficiency.
• Mobility: portable in a durable backpack — ready for individual use by a soldier.
• Protective Buff as a Gift: protects the operator's head from EW radiation during wear.
• Optimal 3-Channel Configuration: covers key FPV drone control bands with minimal weight and power consumption.
• Dual Cooling: active + passive for stable operation during long missions.
• Convenient Charge Control: built-in battery charge sensor.
• Relay Option: control individual frequencies instead of simultaneous activation of all channels.

Package Contents

• «SCORPION» 3-channel EW device — 1 pc.
• Durable carrying backpack
• Spring omnidirectional antennas 32×60 — 3 pcs. (per number of channels)
• 30,000 mAh battery
• 10 A charger
• ???? Protective head buff against radiation — as a gift
• Battery charge sensor (built-in)

Additional Options

Technical Specifications

The «SCORPION» 3-channel EW backpack is a reliable portable solution for individual protection of soldiers against FPV drones and kamikaze drones. The combination of IP68 protection, a circulator, powerful 32×60 6 dBi spring antennas, active and passive cooling, and a compact weight (~6.5 kg + battery) makes the system ideal for foot movement in positions, patrolling, and assault missions. As a gift — a protective head buff against radiation, which further protects the operator during prolonged wear of the active device.
